Fog/Driving Lamp Bulb: Service and Repair

FOG LAMP BULB REPLACEMENT - FRONT

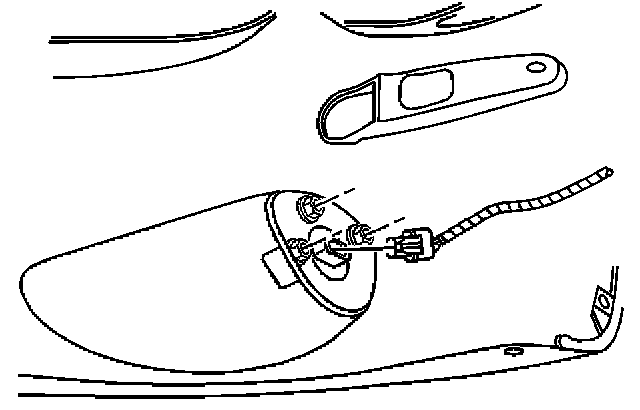

REPLACEMENT PROCEDURE




1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the air deflector.
3. Disconnect the electrical connector from the back of the bulb.
4. Remove the fog lamp bulb from the lamp housing by turning 1/4 turn counterclockwise.

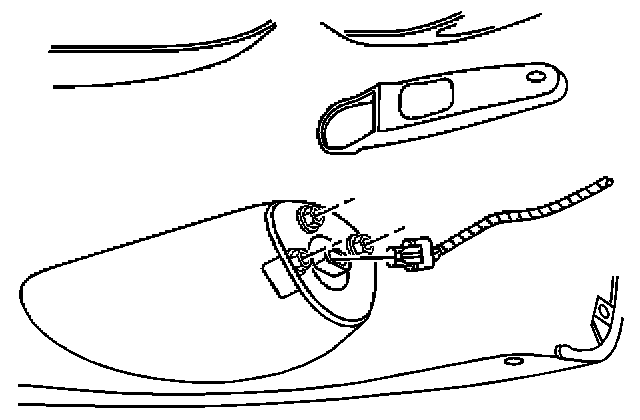

INSTALLATION PROCEDURE




1. Install the fog lamp bulb into the lamp housing by turning 1/4 turn clockwise.
2. Connect the electrical connector.
3. Install the air deflector.
4. Lower the vehicle.
