Courtesy Lamp Replacement - Instrument Panel - Left
COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL - LEFTREMOVAL PROCEDURE

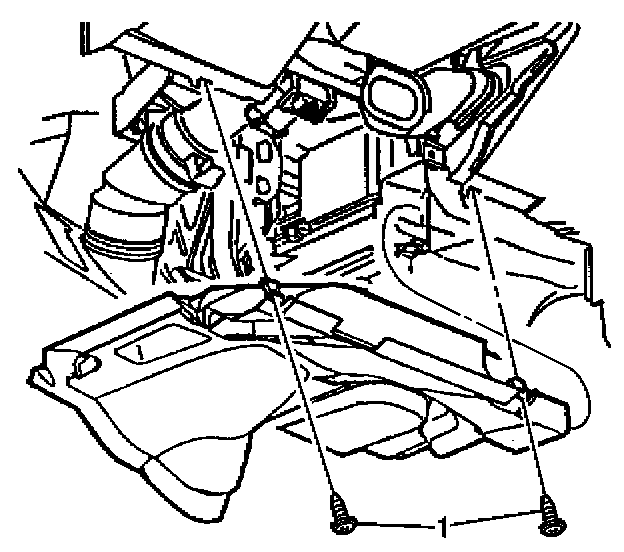

1. Remove the fasteners (1) securing the left closeout insulator panel to the instrument panel retainer.

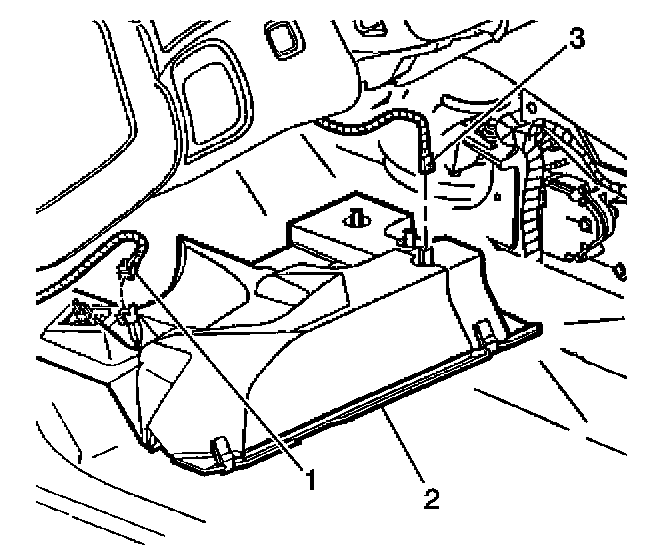

2. Lower the closeout insulator panel (2) in order to gain access to the courtesy lamp.
3. Disconnect the electrical connector (1) from the courtesy lamp.
4. Unclip the courtesy lamp from the closeout insulator panel (2).
INSTALLATION PROCEDURE
1. Position the courtesy lamp to the opening in the closeout insulator panel (2).
2. Push inward in order to engage the retaining clip securing the courtesy lamp to the closeout insulator panel (2).
3. Connect the electrical connector (1) to the courtesy lamp.
4. Align the closeout insulator panel with the instrument panel retainer.

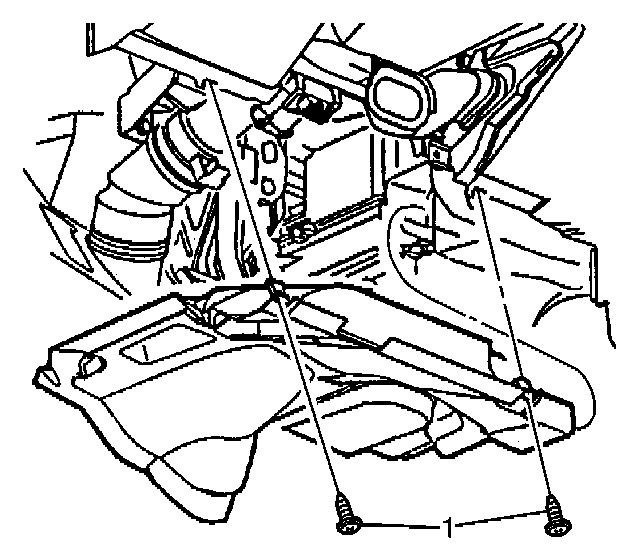

5. Install the closeout insulator fasteners (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the fasteners to 2 N.m (18 lb in).
