Backup Light Bulb: Service and Repair
BACKUP LAMP BULB REPLACEMENTREMOVAL PROCEDURE
1. Open the compartment lid.
2. Remove the appropriate side trim panel.

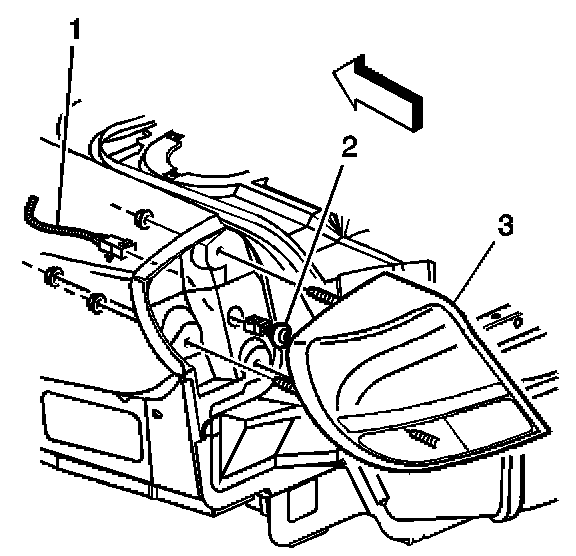

3. Remove the tail lamp assembly (3).
4. Twist the back up bulb socket counter clockwise 1/4 turn to remove the socket from the tail lamp assembly (3).
5. Remove the back up bulb from the socket.
INSTALLATION PROCEDURE
1. Install the backup lamp bulb into the socket.

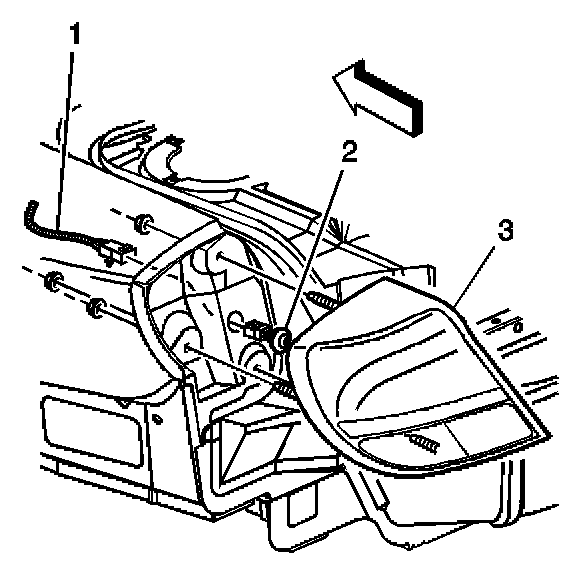

2. Twist the backup bulb socket clockwise 1/4 turn in order to install the socket into the tail lamp assembly (3).
3. Install the tail lamp assembly (3).
4. Install the side trim panel.
