Instrument Panel Cluster (IPC) - Replacement

INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT

REMOVAL PROCEDURE
1. Remove the IP cluster trim plate bezel.

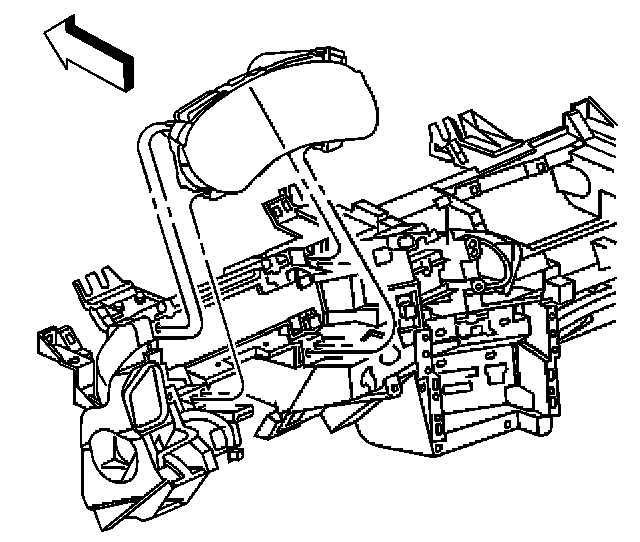

2. Release the four IP cluster pins and pull the cluster rearward to remove from the IP.

INSTALLATION PROCEDURE




1. Align the IP cluster pins to the corresponding openings in the retainer.
2. Press the cluster in to secure, there will be an audible snap when the cluster is fully seated.
3. Install the IP cluster trim panel.
