Temperature Variation Between Driver and Passenger Outlets

TEMPERATURE VARIATION BETWEEN DRIVER AND PASSENGER OUTLETS

TEST DESCRIPTION

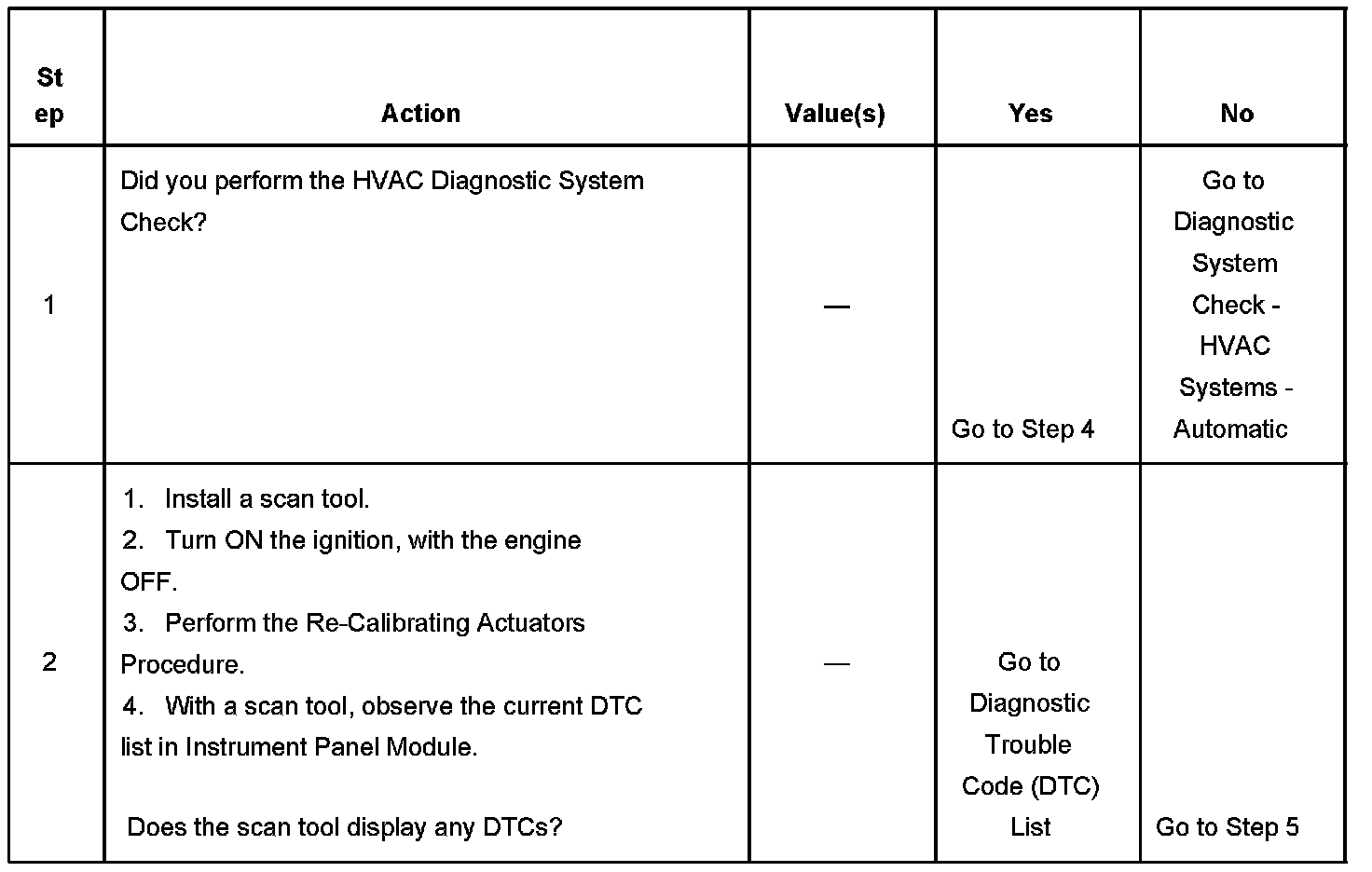

Steps 1 - 2:

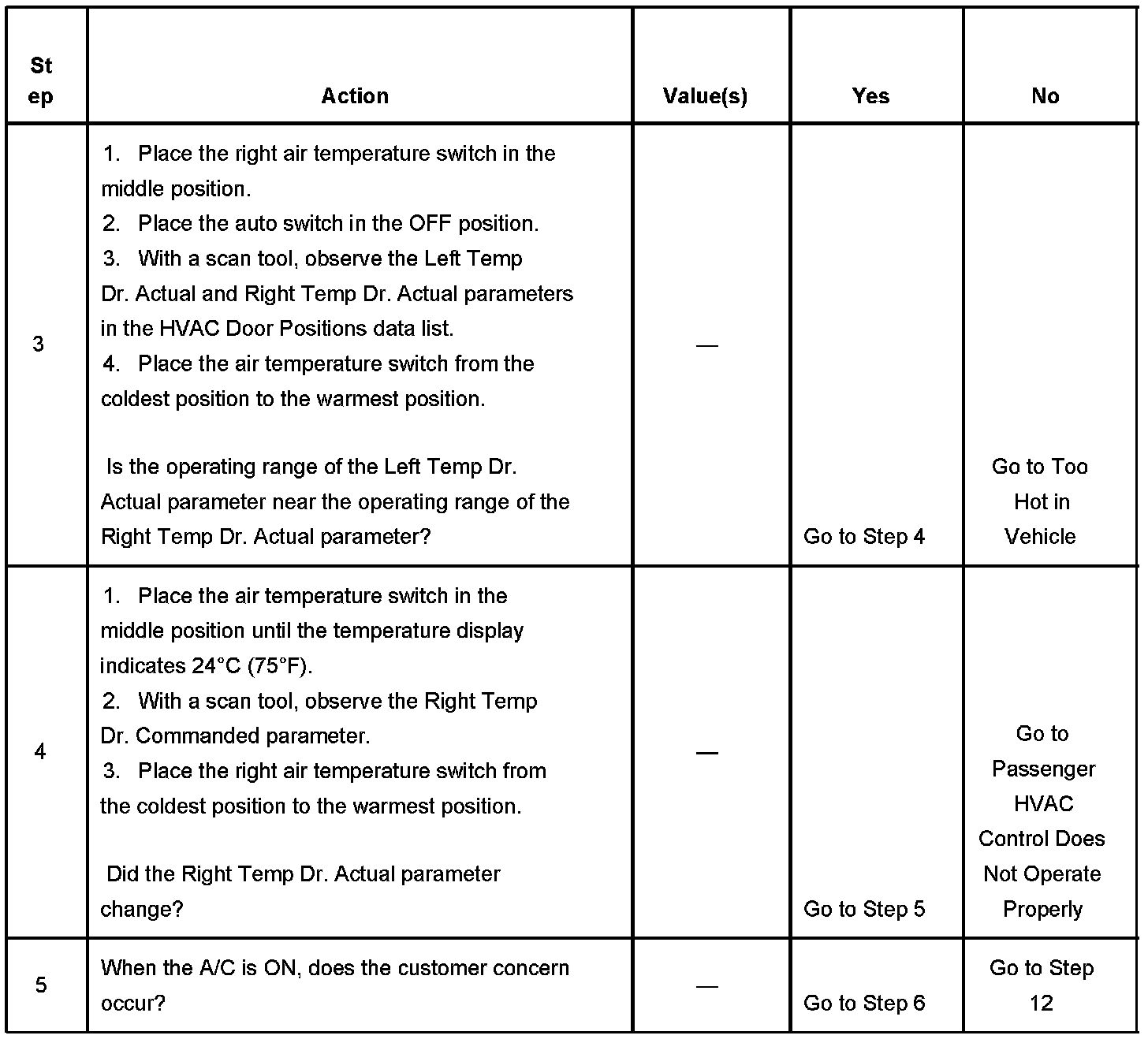

Steps 3 - 5:

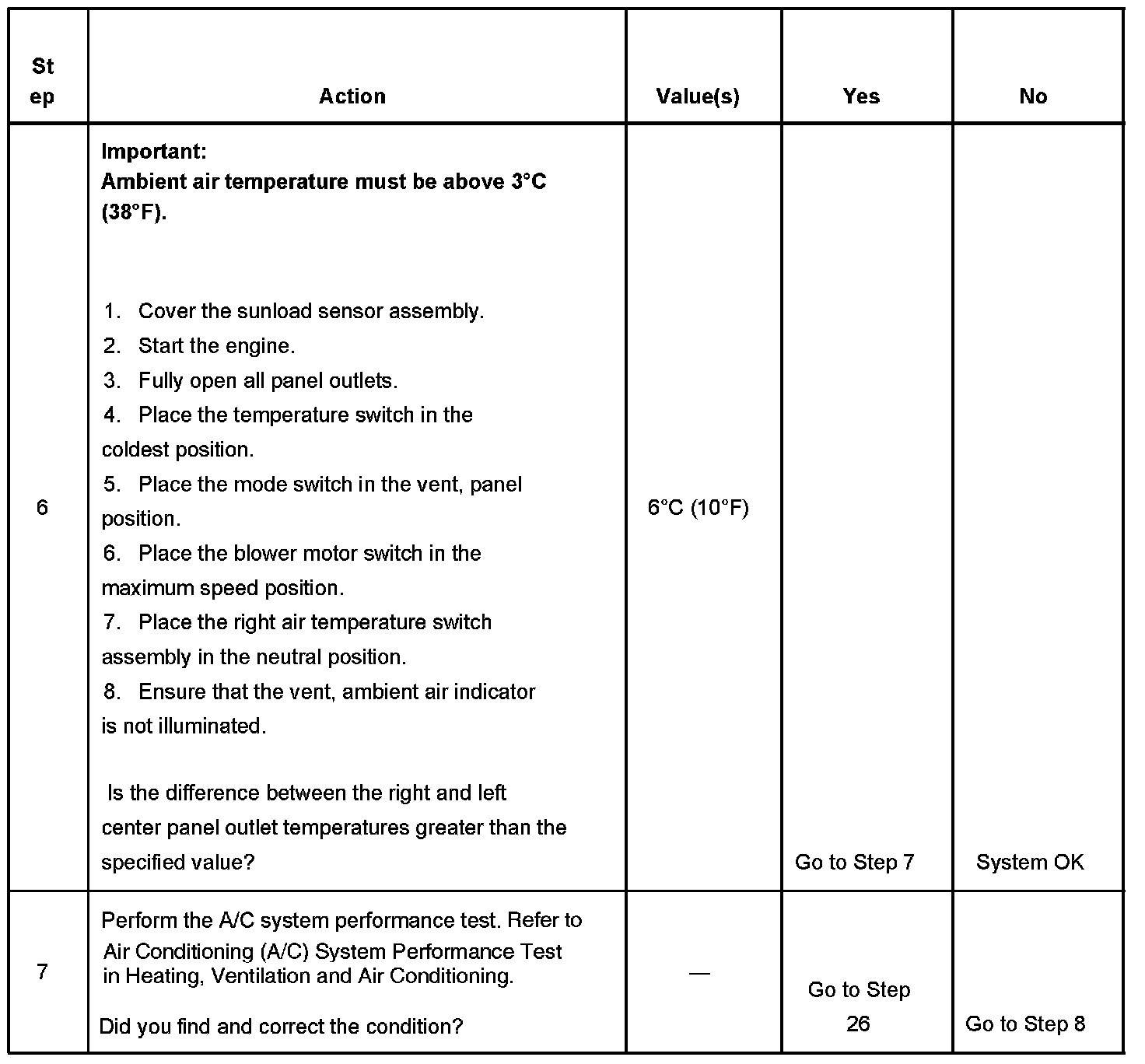

Steps 6 - 7:

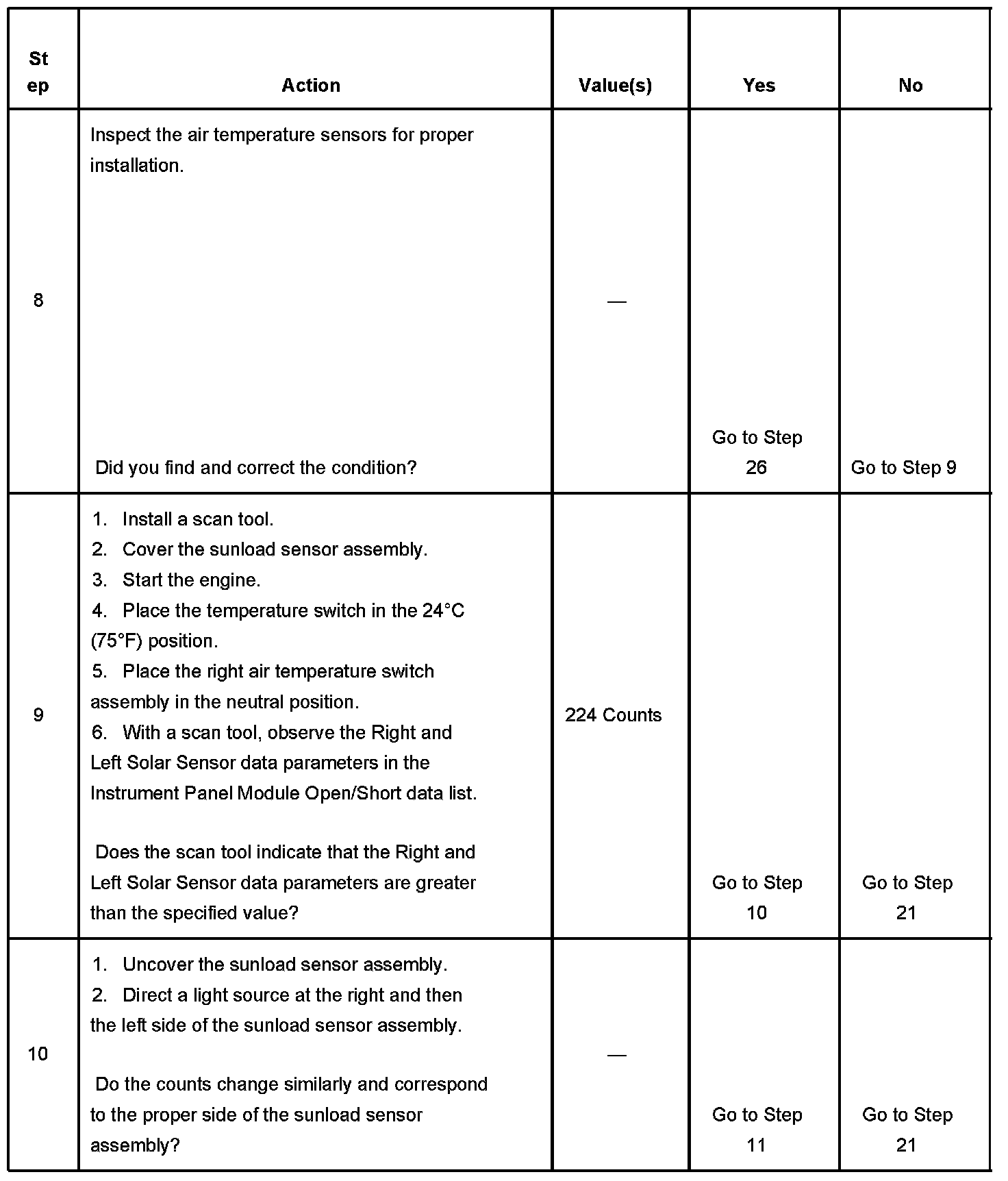

Steps 8 - 10:

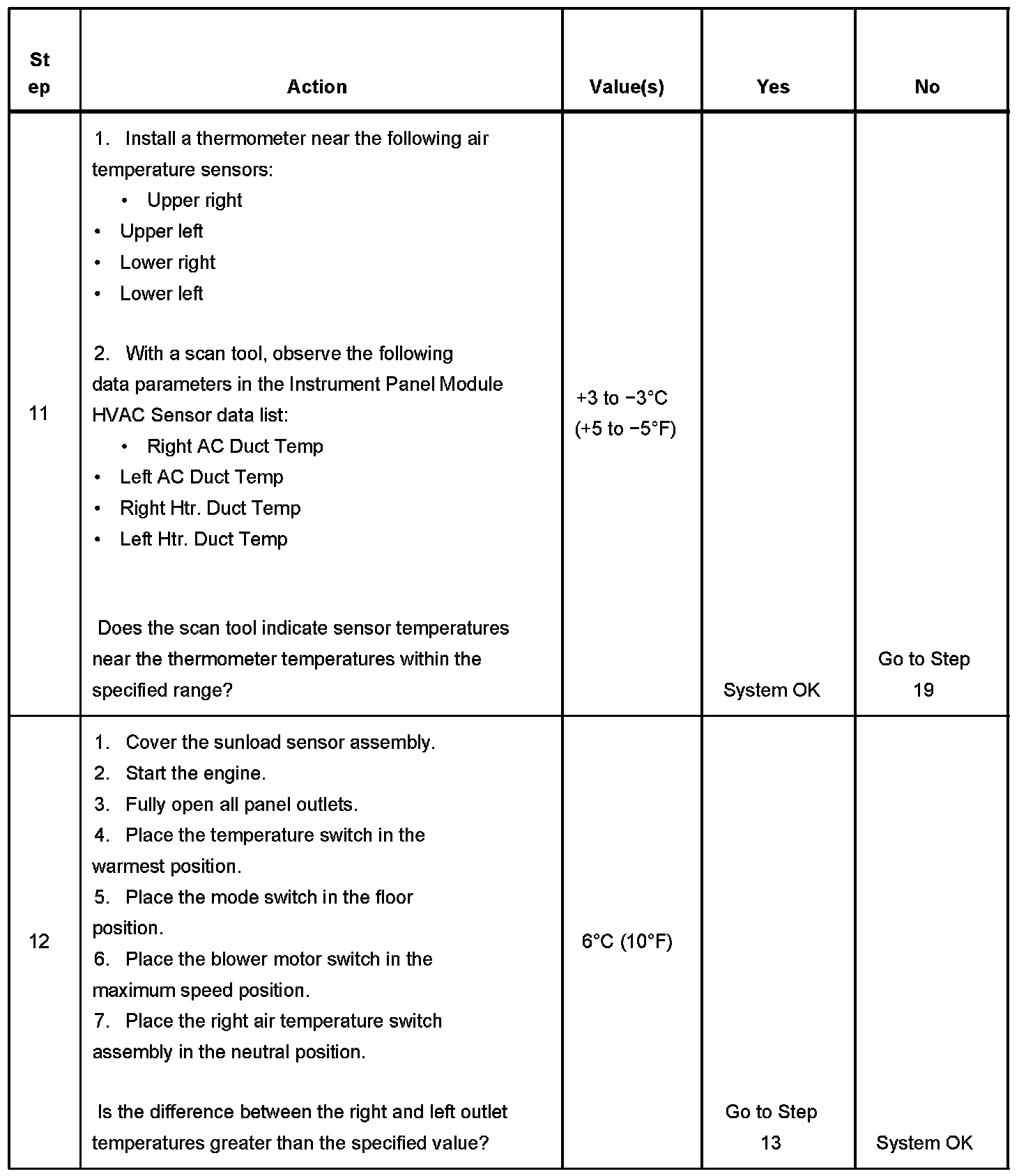

Steps 11 - 12:

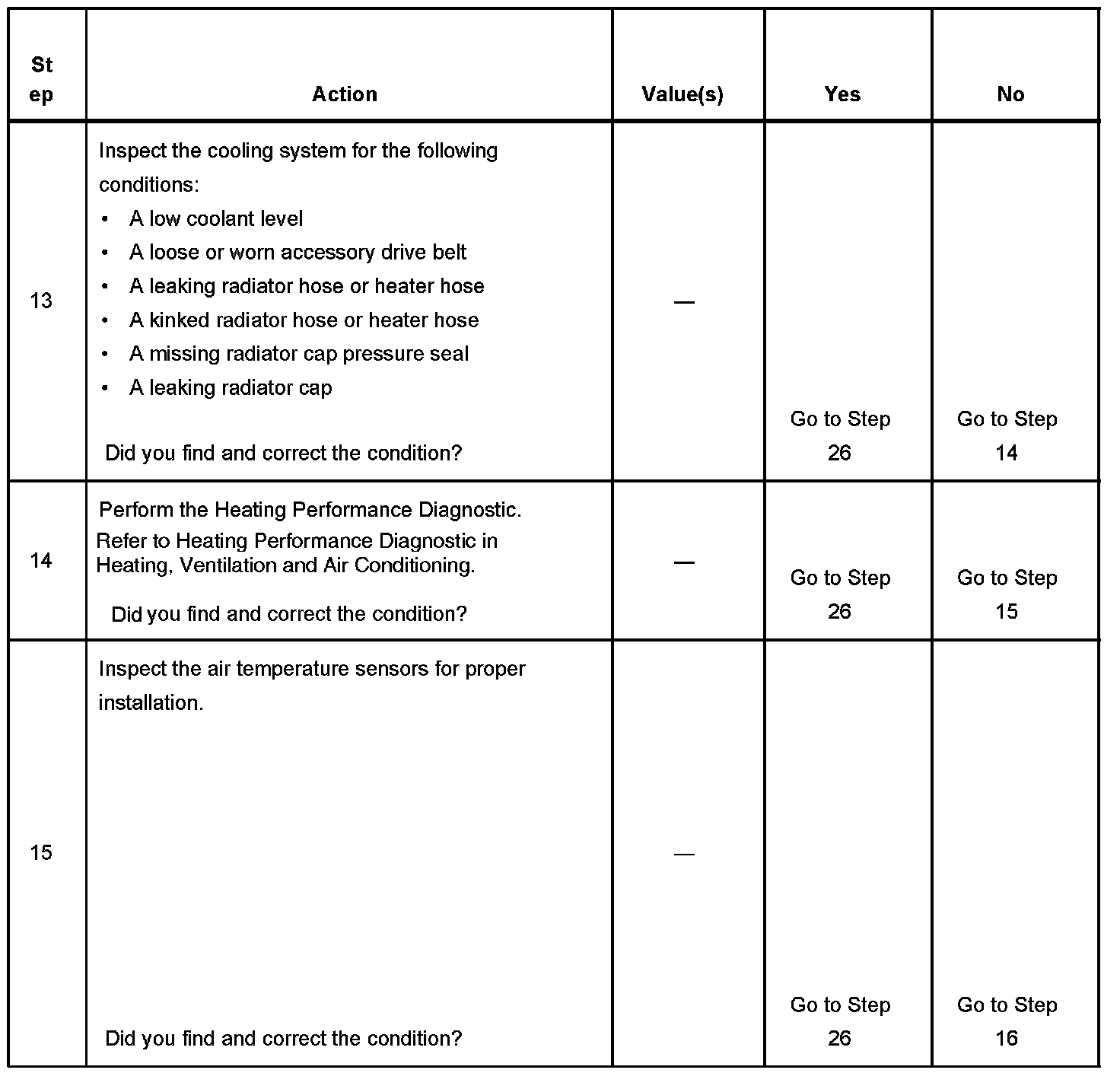

Steps 13 - 15:

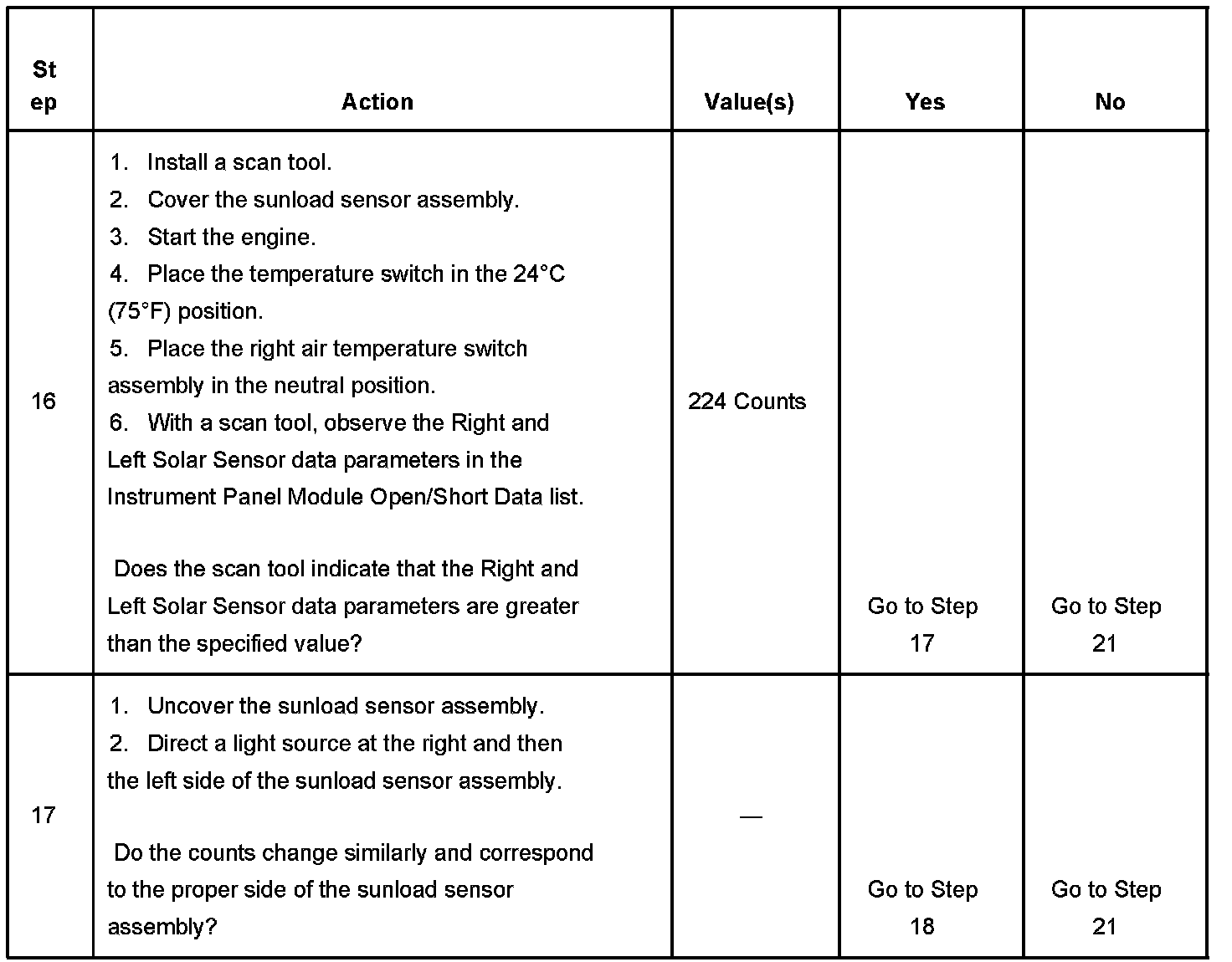

Steps 16 - 17:

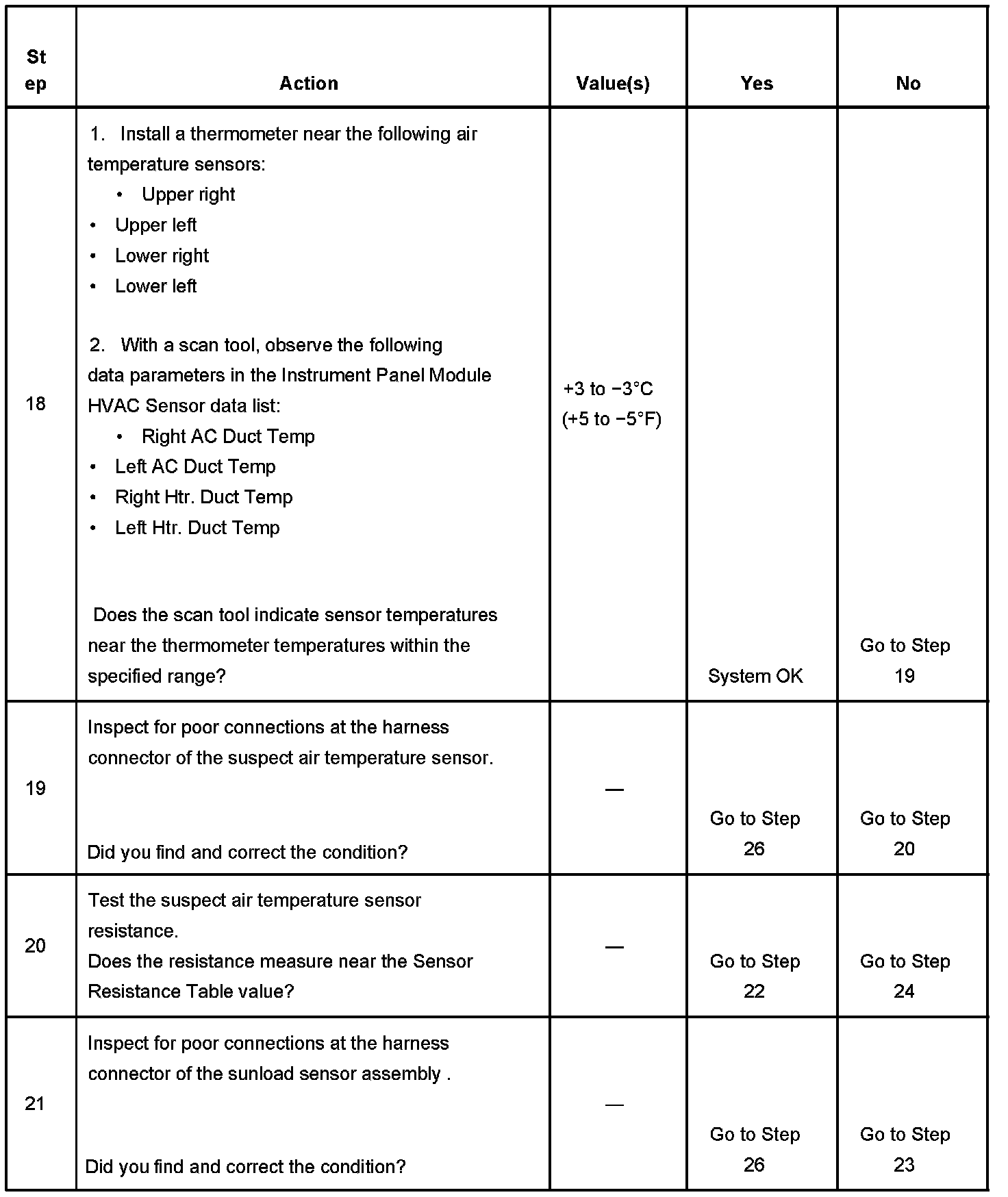

Steps 18 - 21:

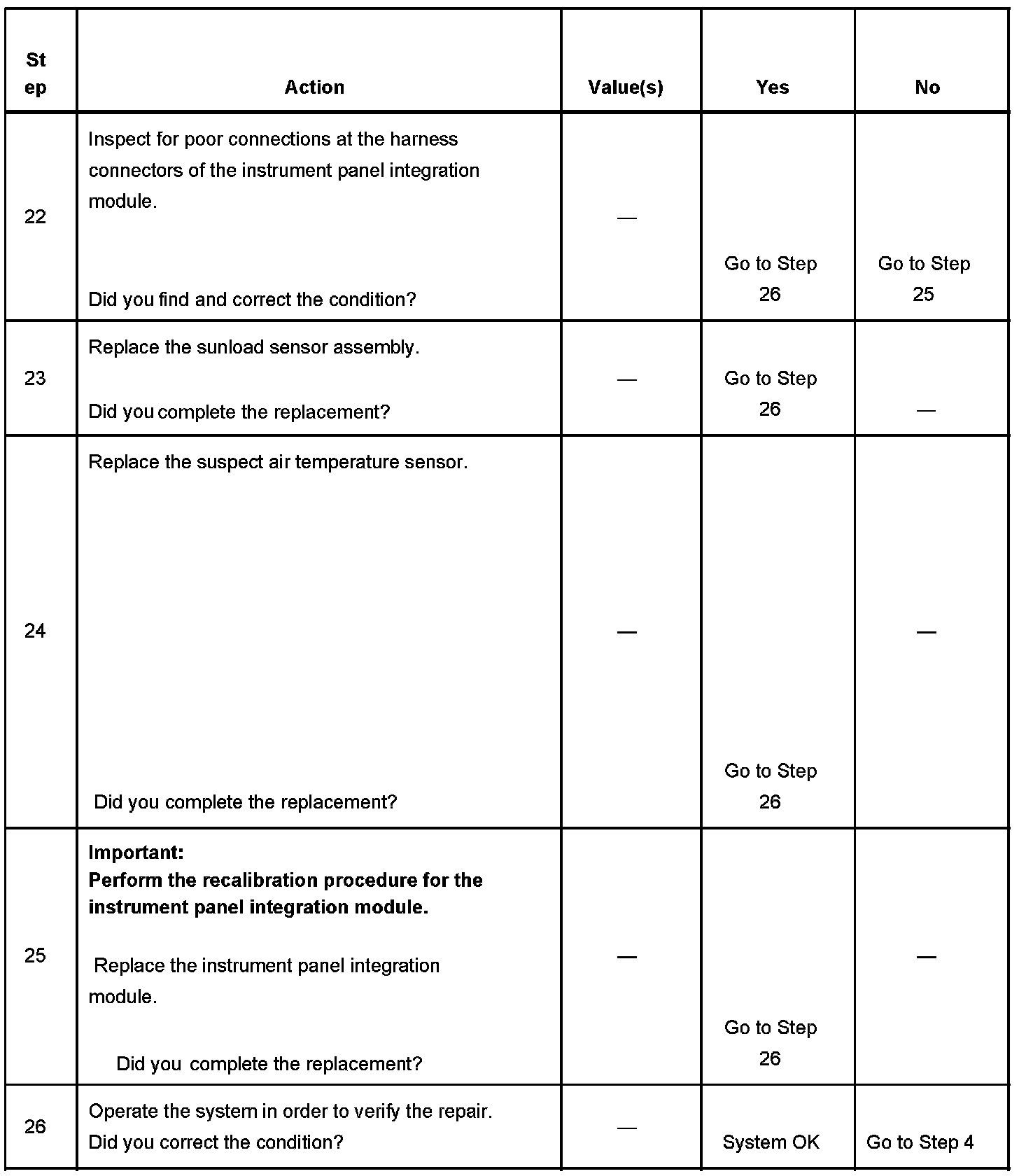

Steps 22 - 26:

The numbers below refer to the step numbers on the diagnostic table.
3. Both the Too Hot in Vehicle and Too Cold in Vehicle diagnose a malfunctioning temperature actuator.
