Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Control Head Illumination/Display Does Not Operate Properly

Control Head Illumination/Display Does Not Operate Properly

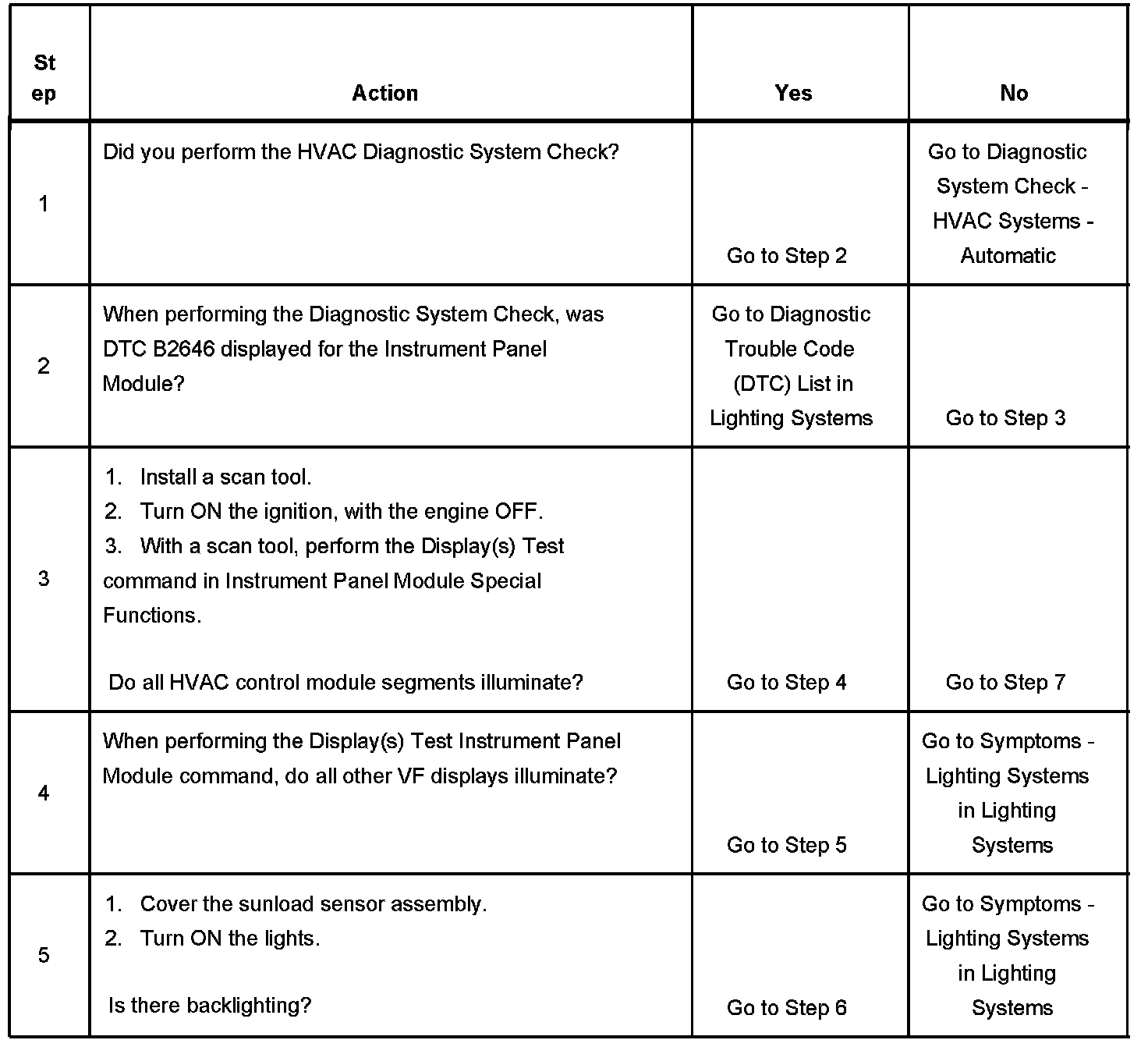

Steps 1 - 5:

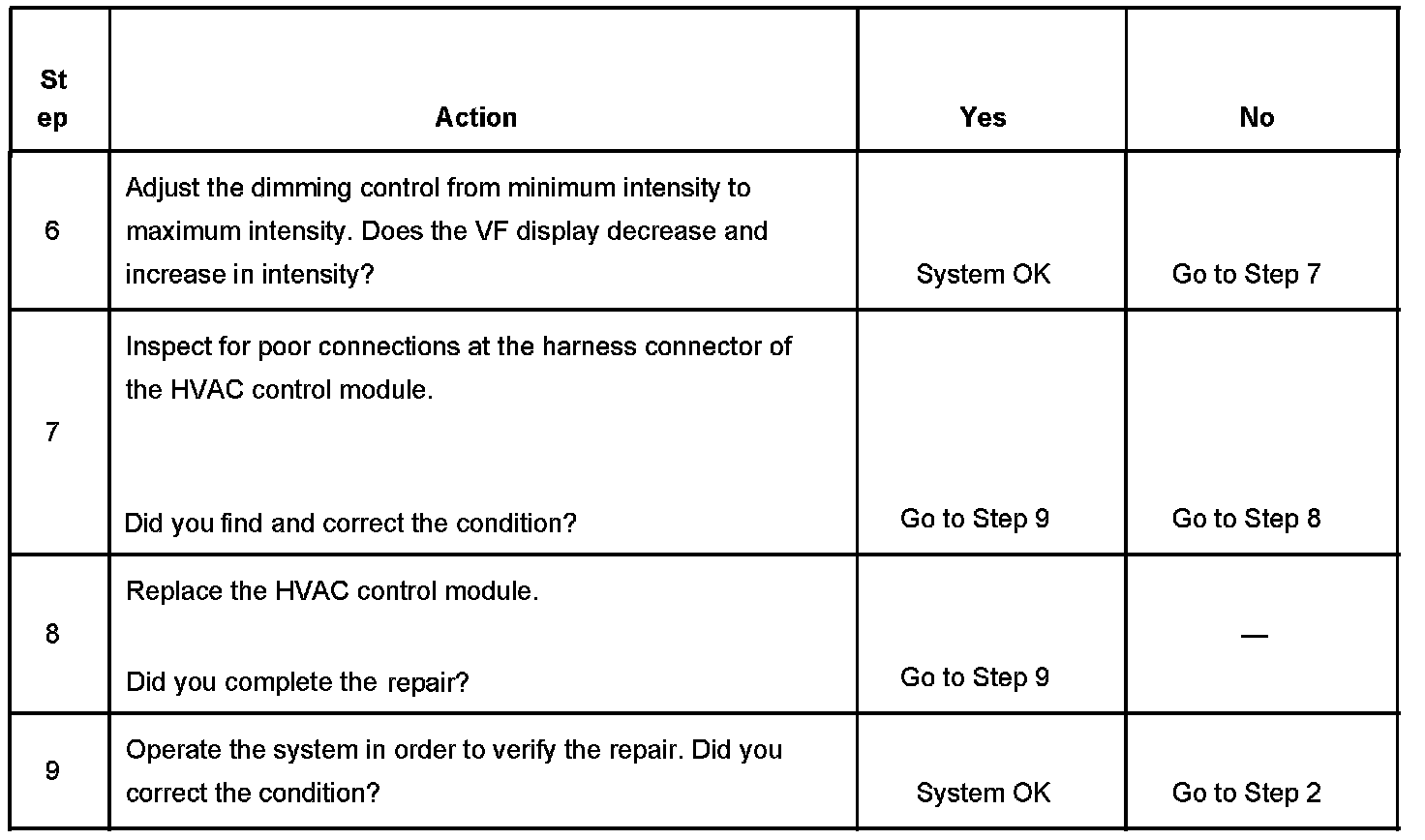

Steps 6 - 9:
