Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Air Recirculation Malfunction

Air Recirculation Malfunction

Steps 1 - 4:



Steps 5 - 8:

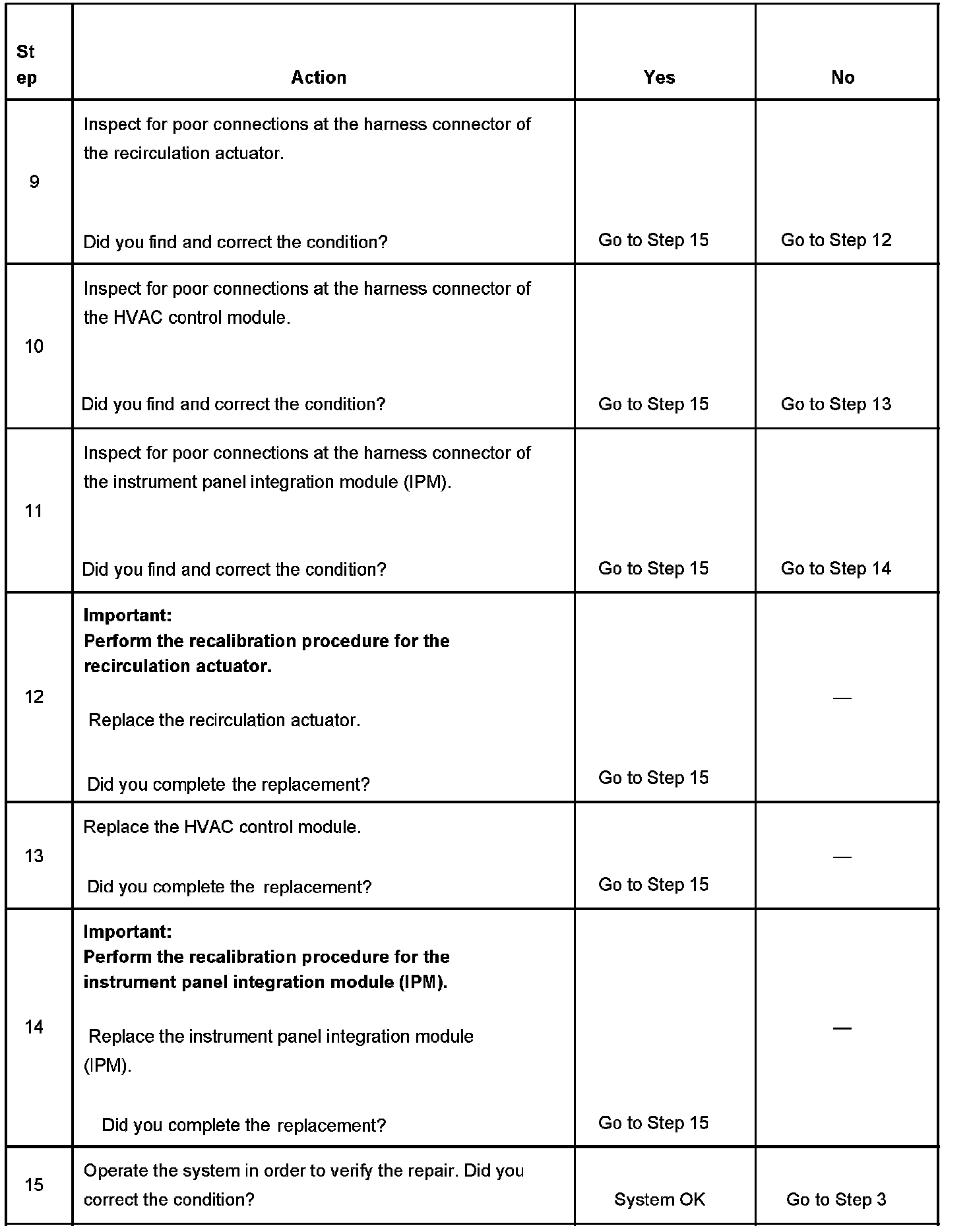

Steps 9 - 15:
