Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Air Delivery Improper

Air Delivery Improper

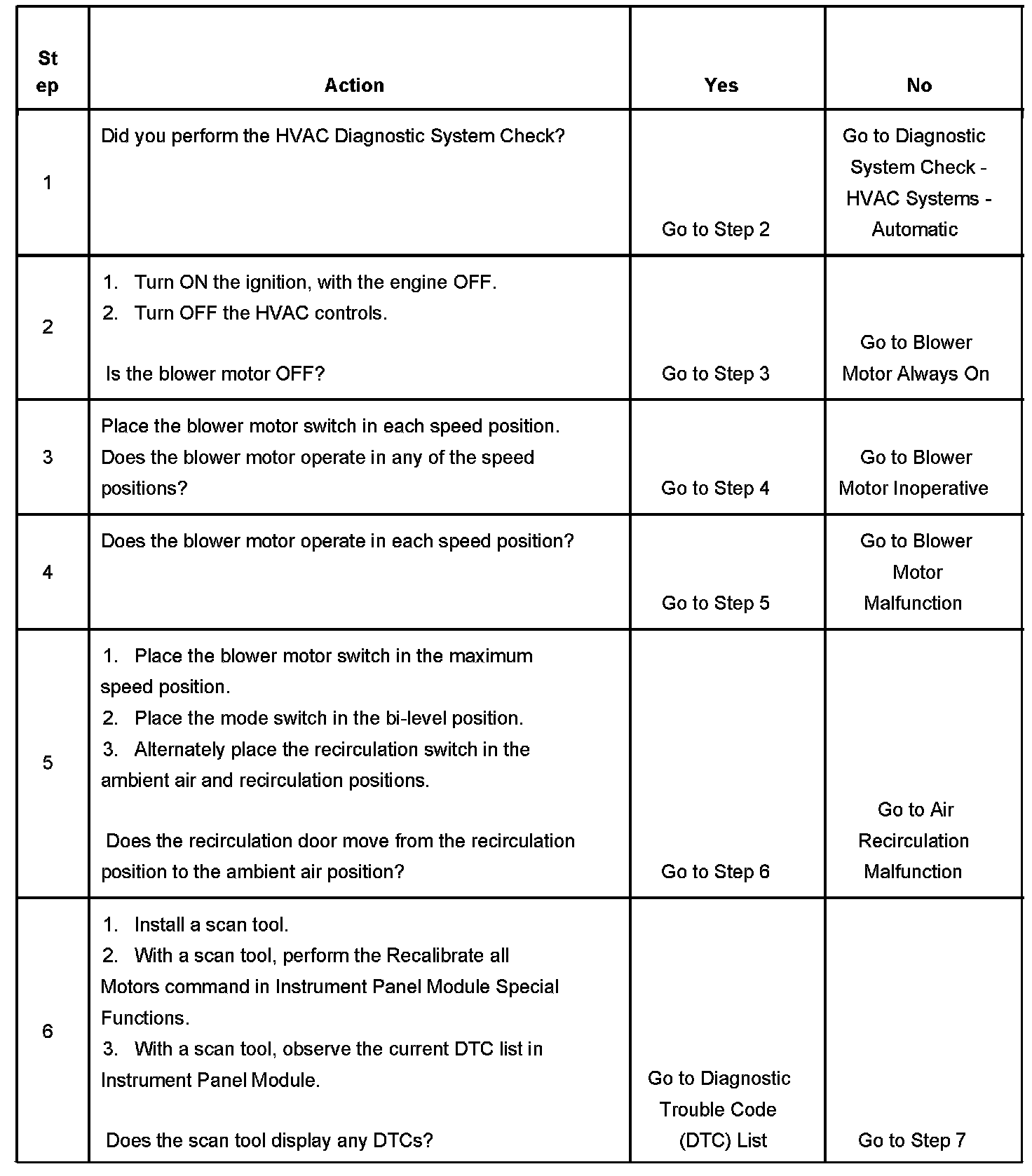

Steps 1 - 6:



Steps 7 - 12:

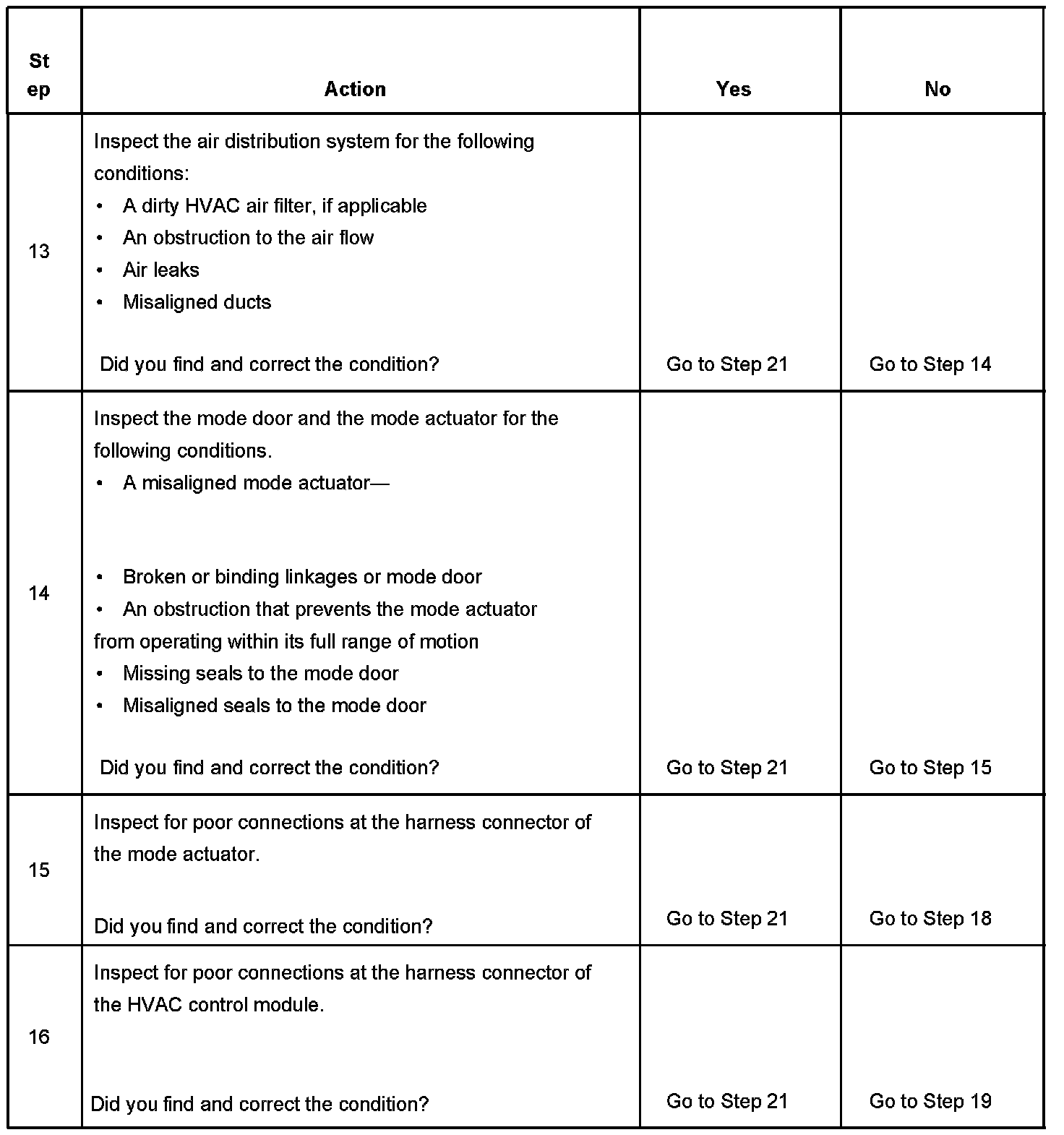

Steps 13 - 16:

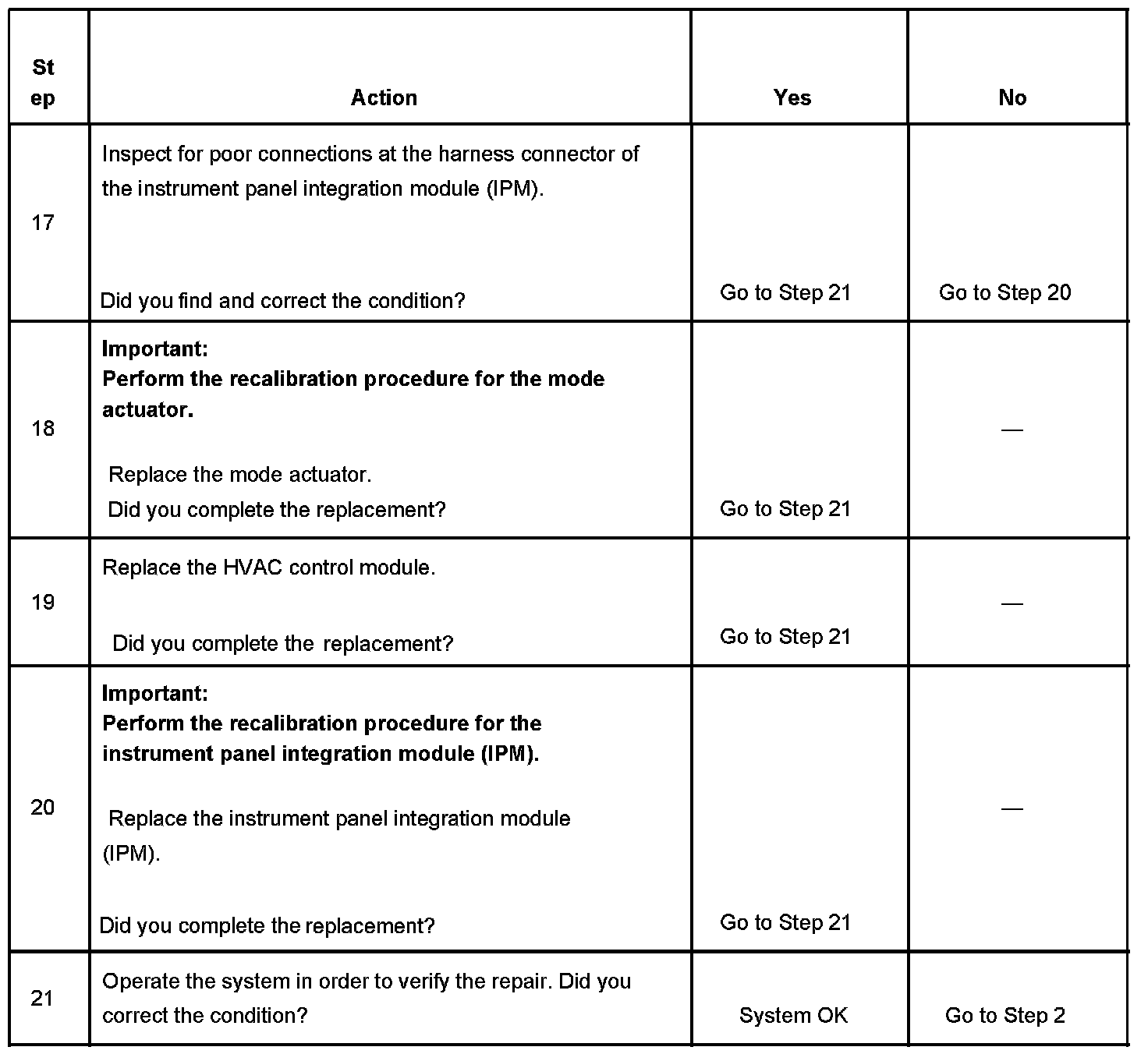

Steps 17 - 21:
