A/C System Does Not Maintain Set Temperature

AIR CONDITIONING (A/C) SYSTEM DOES NOT MAINTAIN SET TEMPERATURE

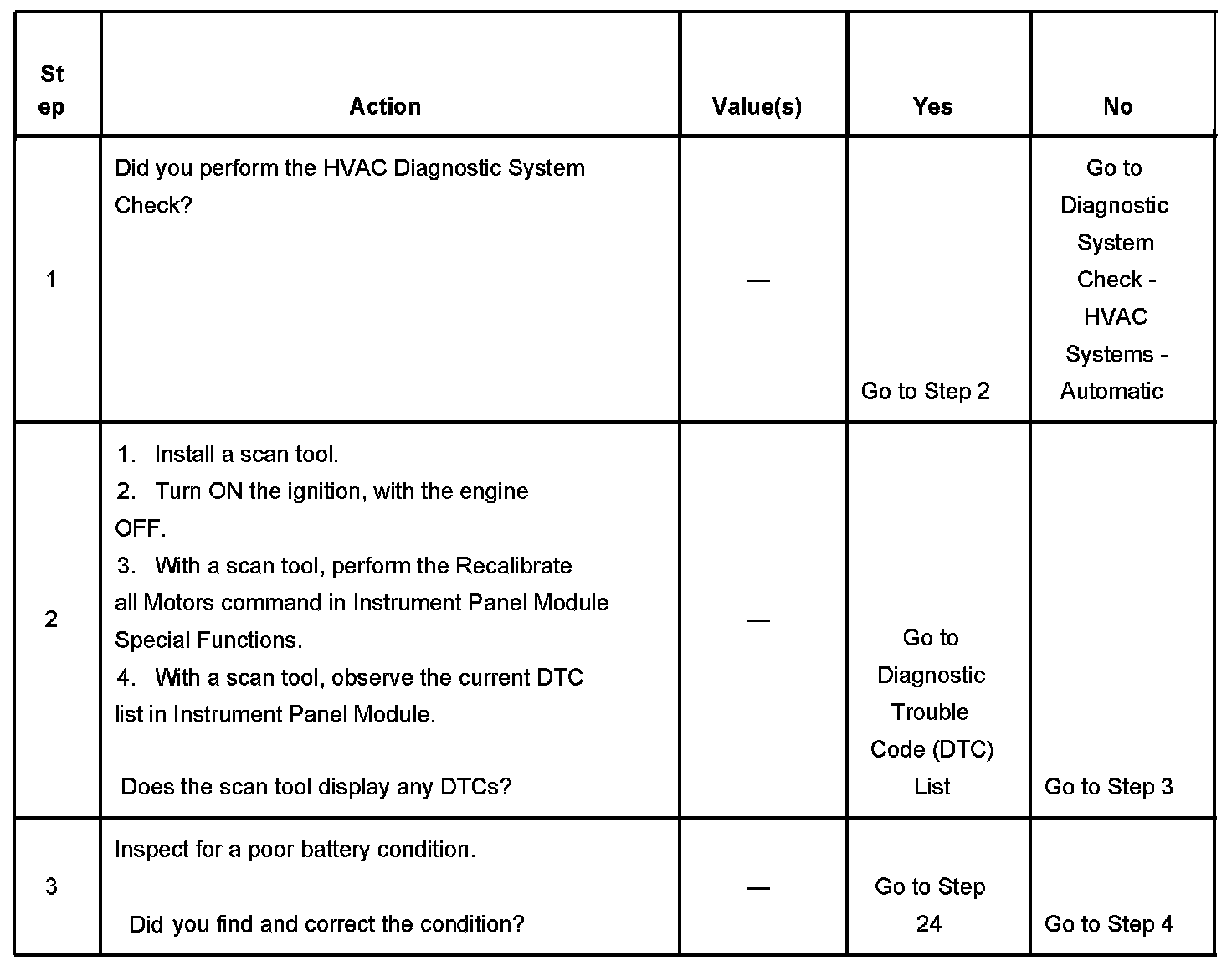

Steps 1 - 3:

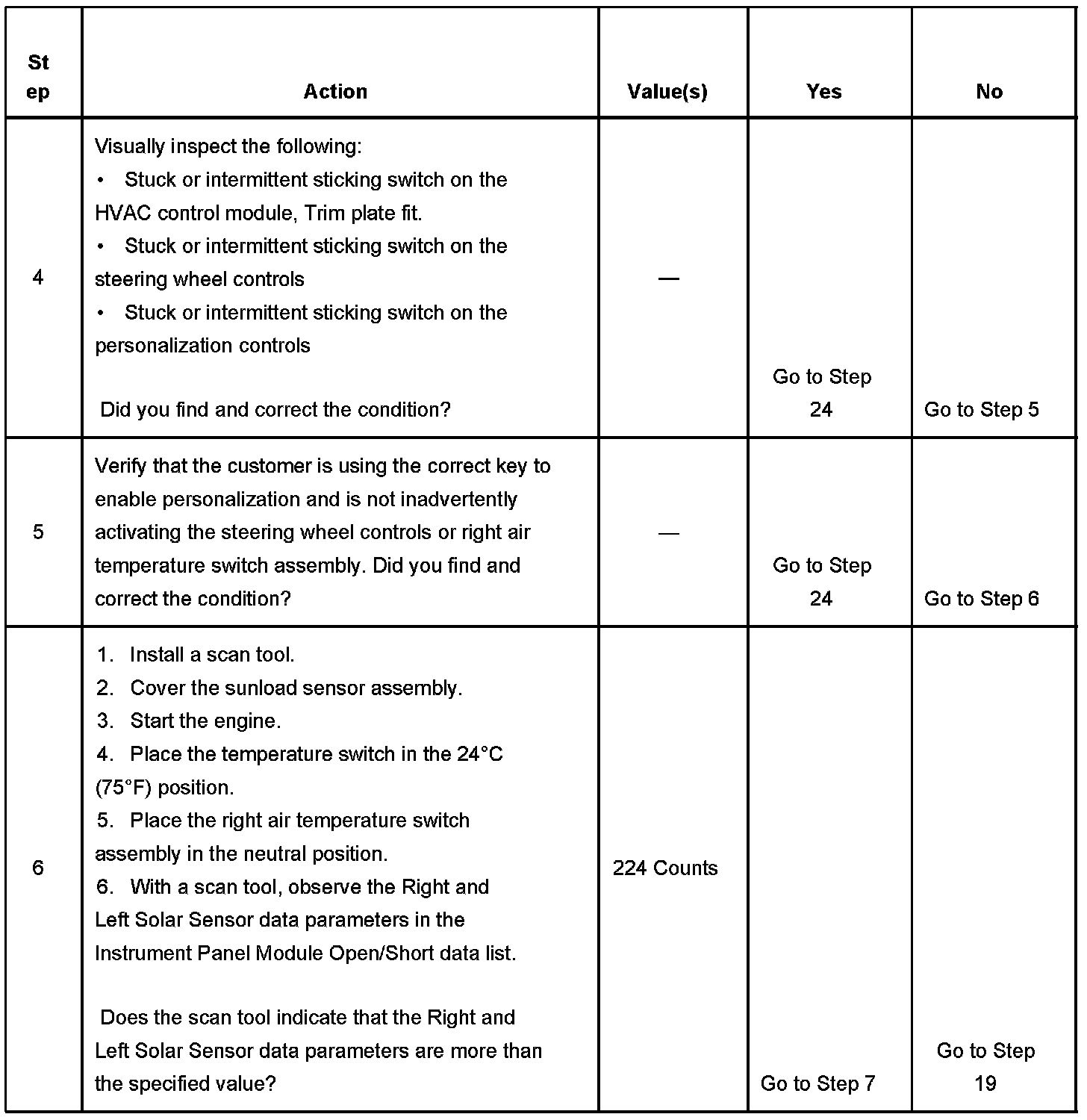

Steps 4 - 6:

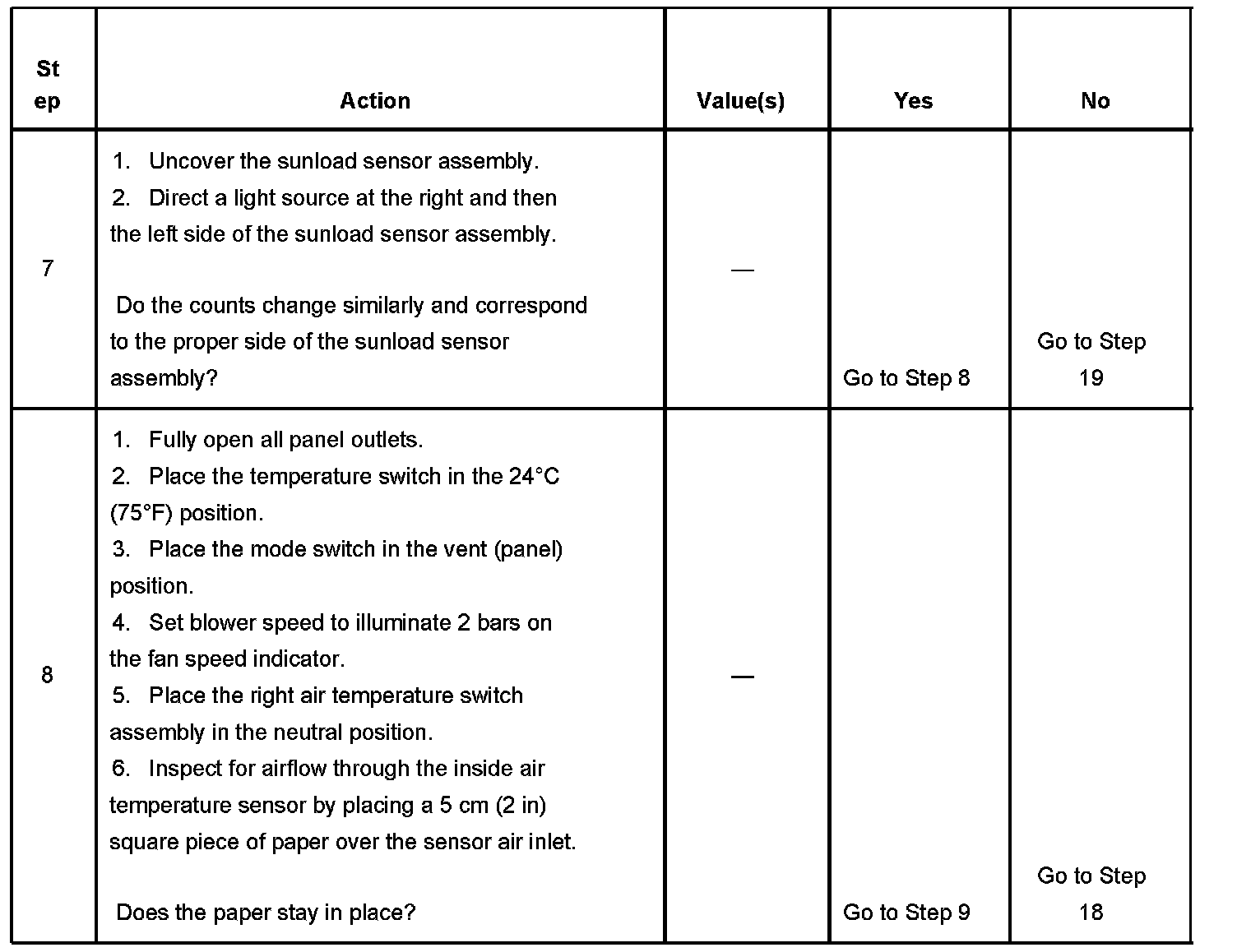

Steps 7 - 8:

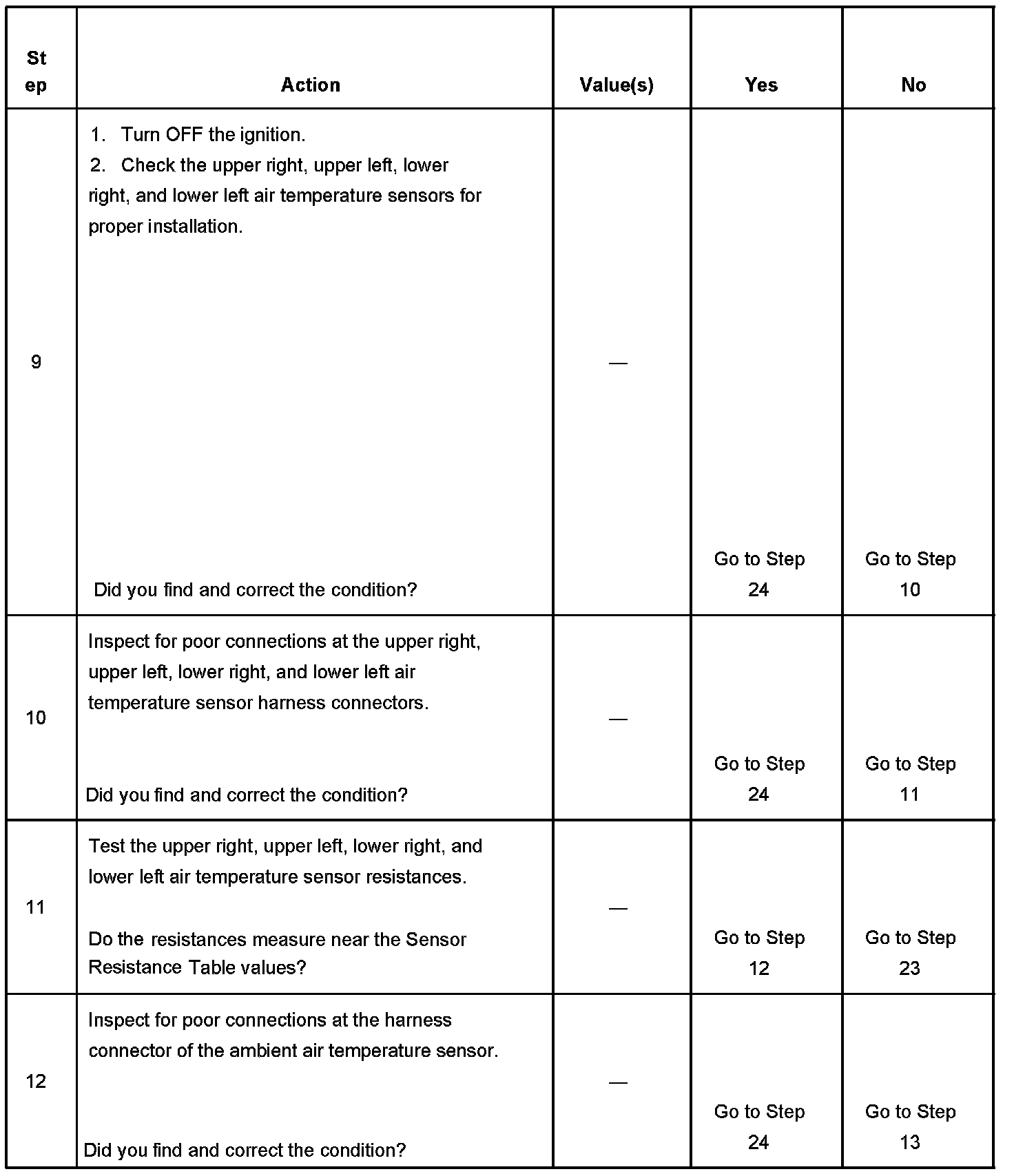

Steps 9 - 12:

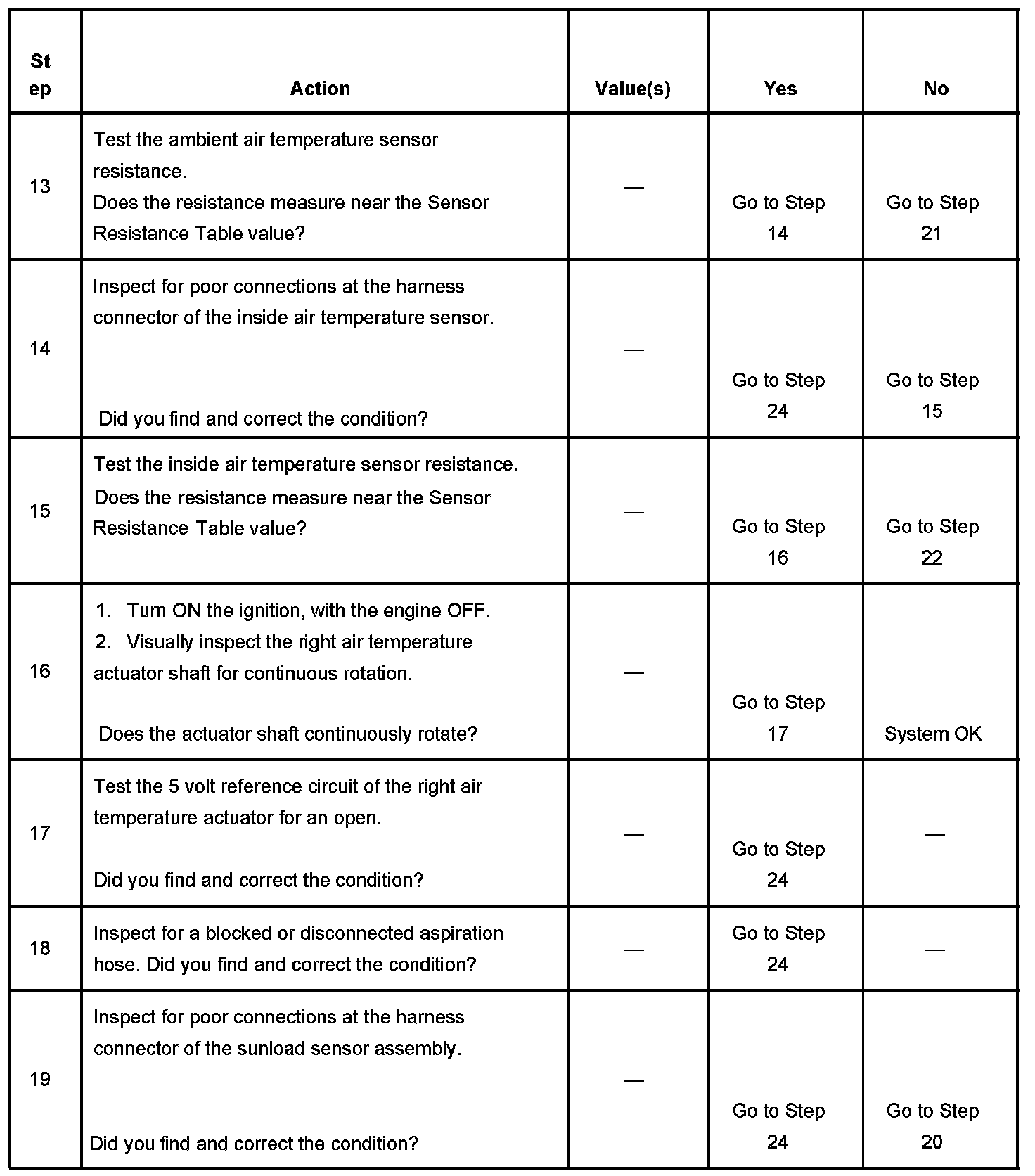

Steps 13 - 19:

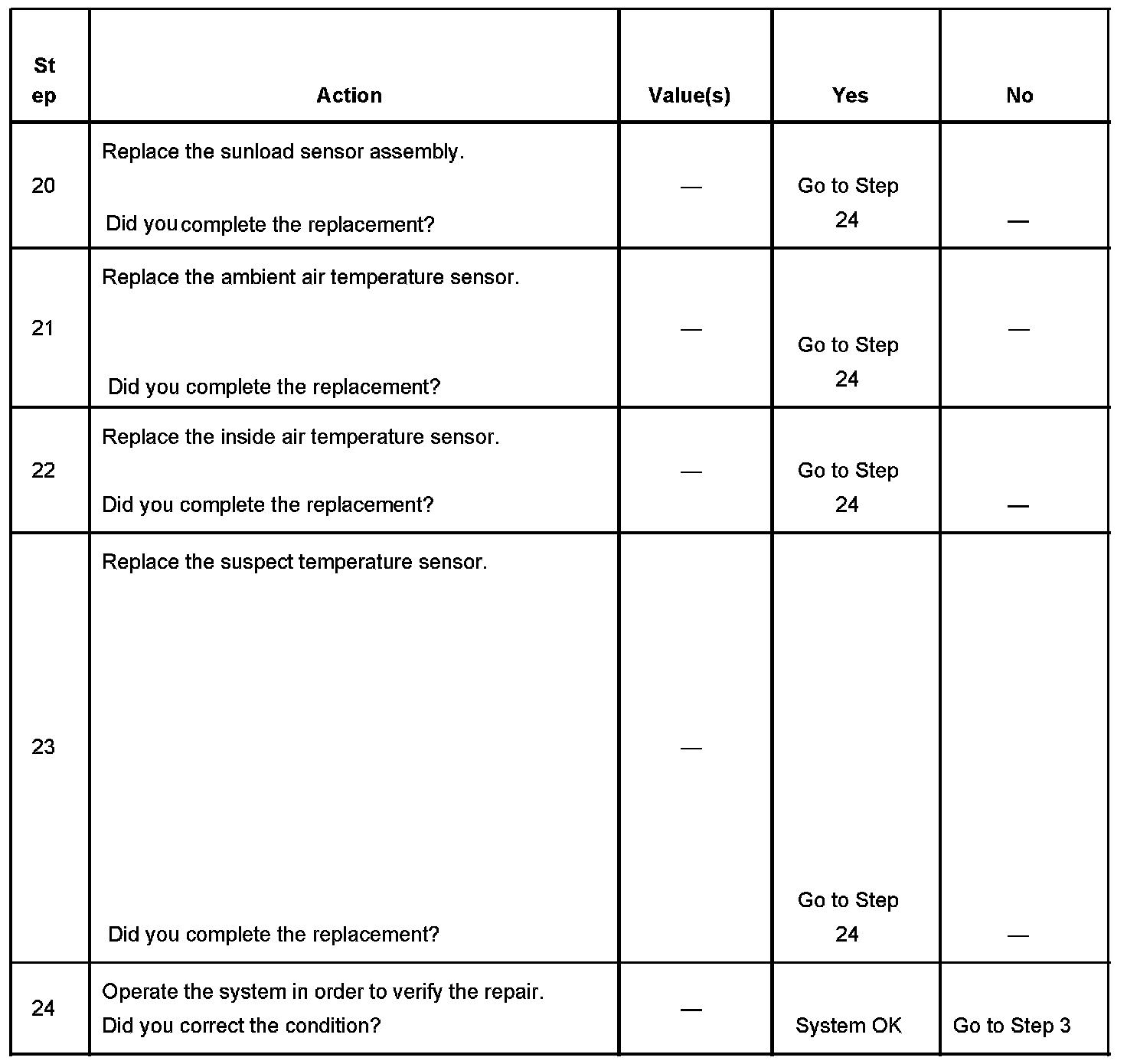

Steps 20 - 24:
