Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> A/C System Pressure Zone Diagnostics >> A/C System Pressure - Zone Classification

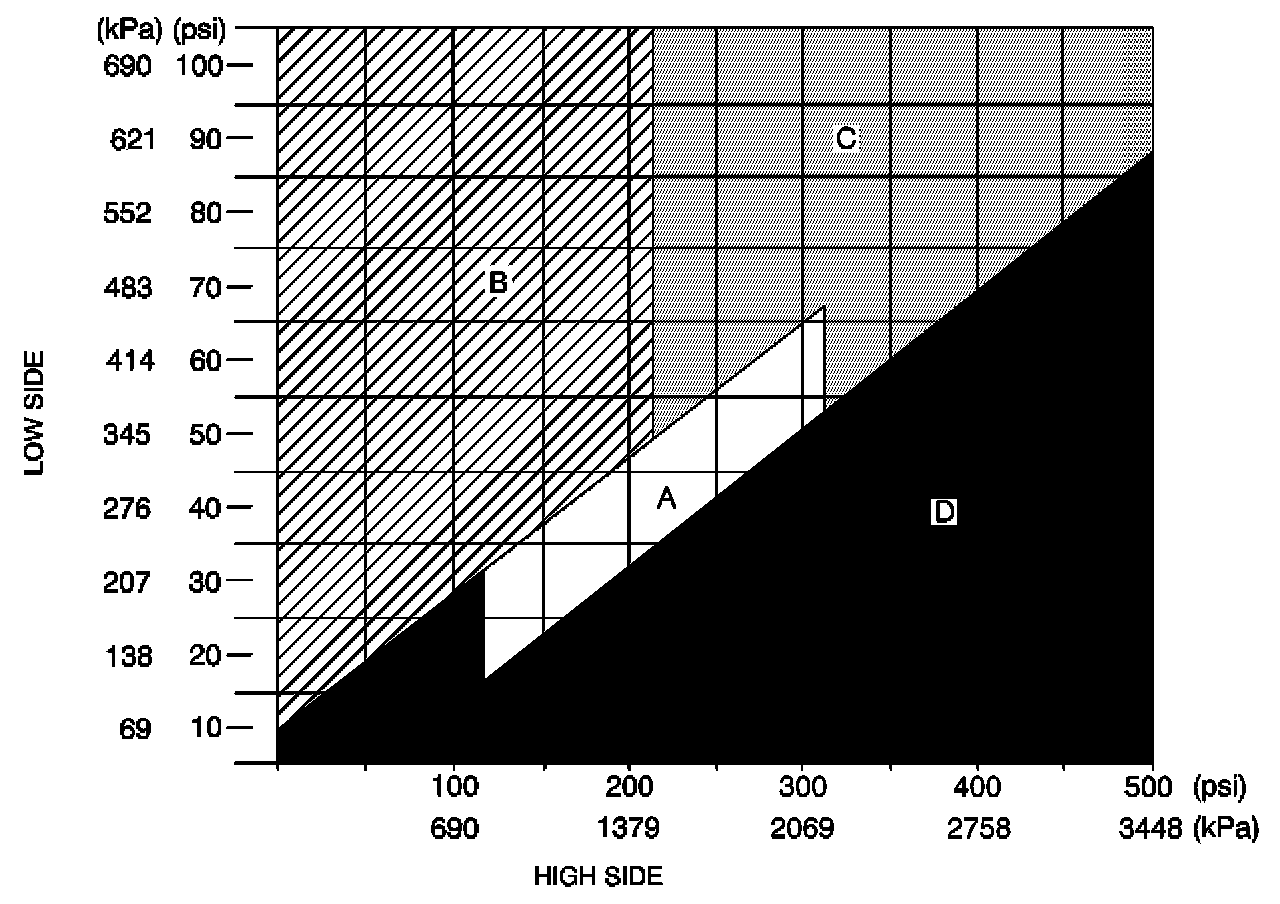

A/C System Pressure - Zone Classification

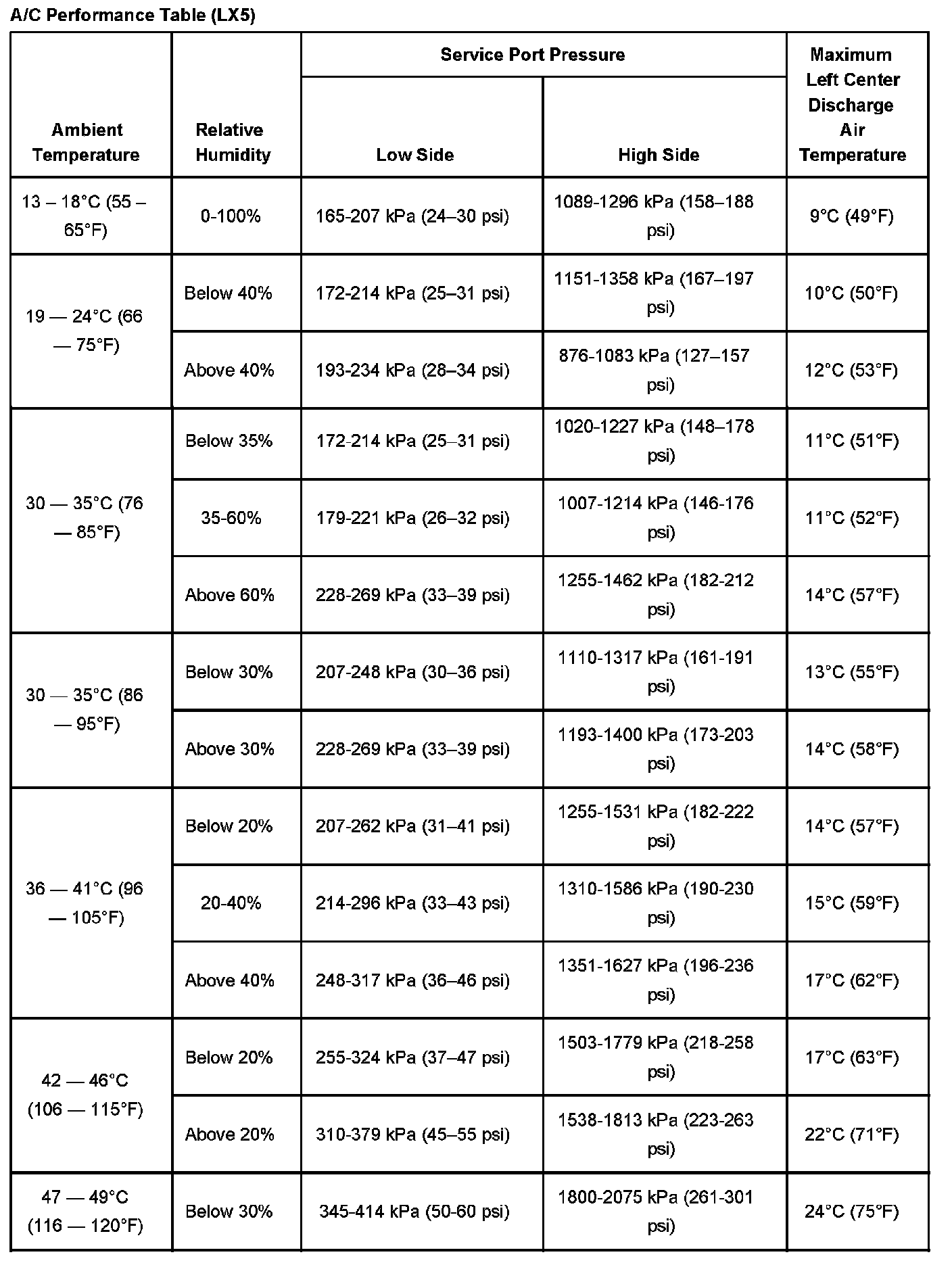

A/C Performance Table (LX5):

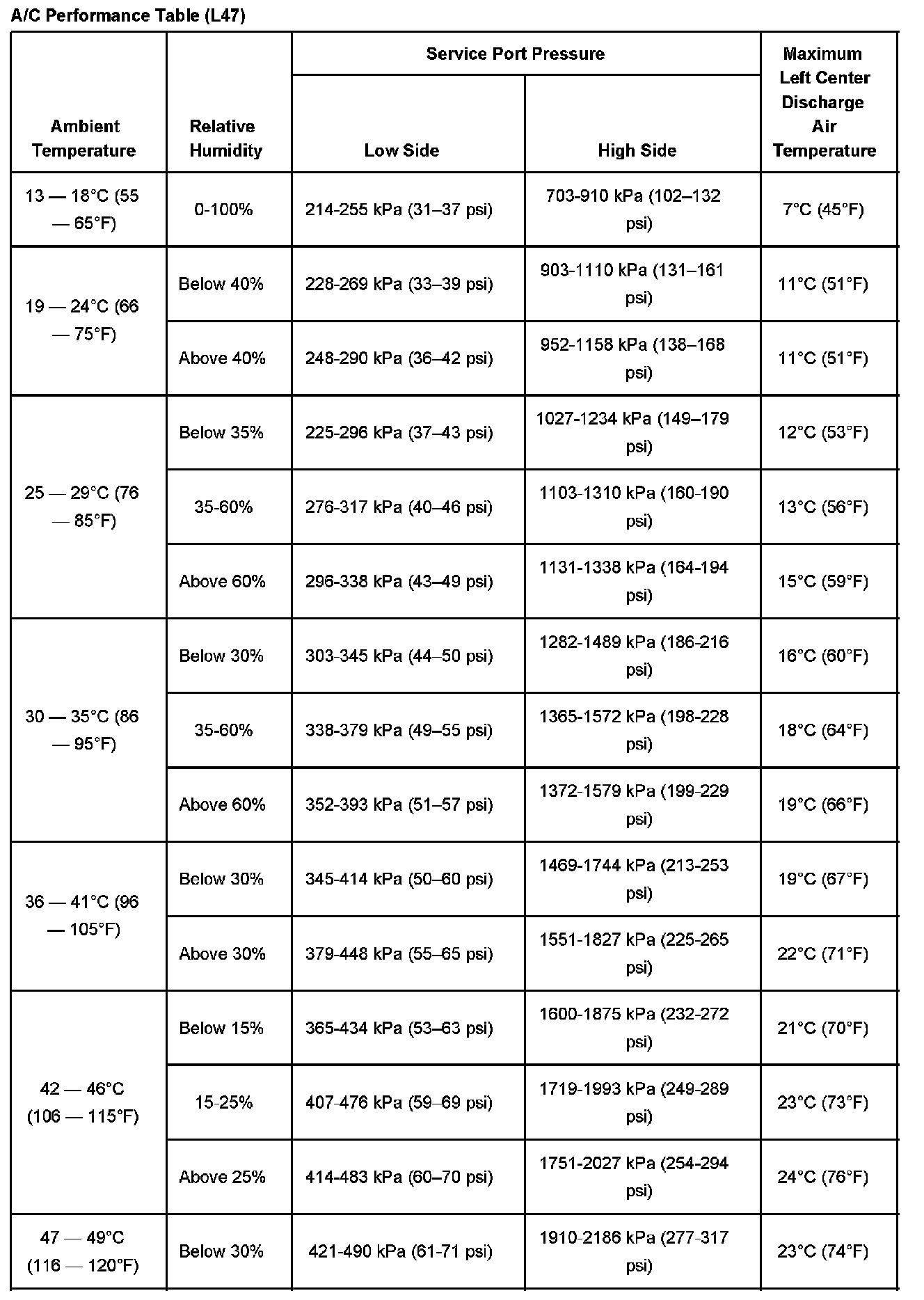

A/C Performance Table (L47):
