Air Temperature Sensor Replacement - Upper Right

AIR TEMPERATURE SENSOR REPLACEMENT - UPPER RIGHT

REMOVAL PROCEDURE
1. Remove the right IP endcap.

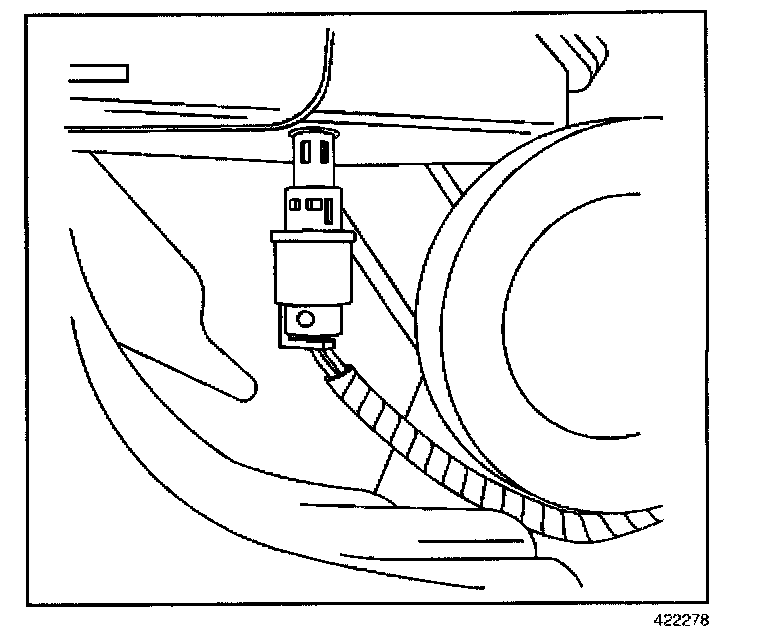

2. Remove the sensor by twisting 1/4 turn.
3. Disconnect the electrical connector from the sensor.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the sensor.




2. Install the sensor into the duct and twist to lock in place.
3. Install the right IP endcap.
