Air Temperature Sensor Replacement - Upper Left

AIR TEMPERATURE SENSOR REPLACEMENT - UPPER LEFT

REMOVAL PROCEDURE
1. Remove the left IP endcap.

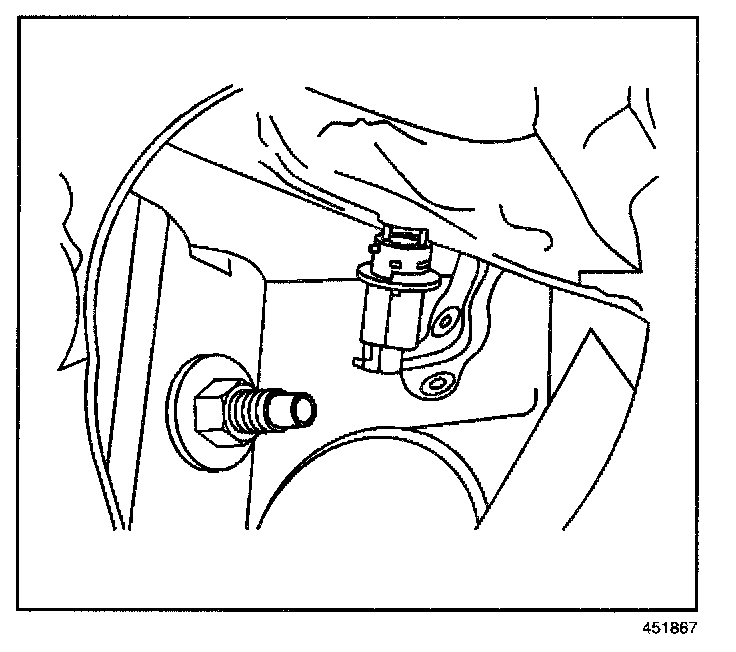

2. Remove the sensor by twisting 1/4 turn.
3. Disconnect the electrical connector from the sensor.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the sensor.




2. Install the sensor into the duct and twist to lock in place.
3. Install the left IP endcap.
