Suction Hose Replacement (L47)

SUCTION HOSE REPLACEMENT (With RPO Code L47)

TOOLS REQUIRED
J 39400-A Halogen Leak Detector

REMOVAL PROCEDURE
1. Recover the refrigerant.
2. Remove the lower radiator air deflector.




3. Disconnect the suction hose from the compressor.
4. Lower the vehicle.
5. Disconnect the upper radiator hose from the clip on the upper tie bar.

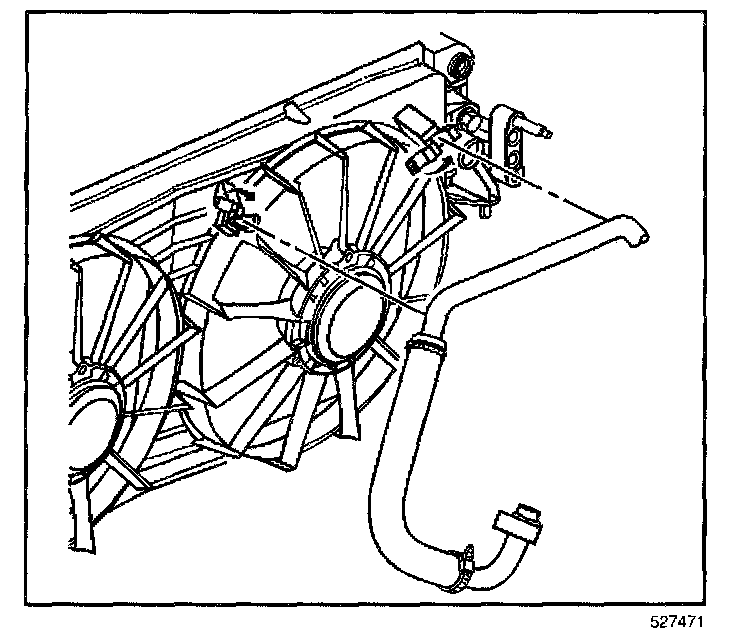

6. Disconnect the suction hose (1) from the accumulator.




7. Disconnect the suction hose from the clips at the fan shroud.
8. Remove the hose from the vehicle.

INSTALLATION PROCEDURE
1. Position the suction hose into the vehicle.

IMPORTANT: Inspect the seal washers for damage before reinstalling the A/C lines and hoses. If any damage is noted during inspection, the suspect seal must be replaced. Flat washer type seals do not require lubrication.




2. Install the suction hose (1) and nut to the accumulator.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the nut to 20 N.m (15 lb ft).




3. Install the suction hose into the clips at the fan shroud.
4. Install the upper radiator hose into the clip and fasten.
5. Raise the vehicle.




6. Install the suction hose and nut to the compressor.

Tighten
Tighten the nut to 20 N.m (15 lb ft).

7. Lower the vehicle.
8. Recharge the A/C system.
9. Leak test the fittings of the component using the J 39400-A.
10. Install the front air deflector.
