Condenser Tube Replacement

CONDENSER TUBE REPLACEMENT

TOOLS REQUIRED
J 39400-A Halogen Leak Detector

REMOVAL PROCEDURE
1. Recover the refrigerant.

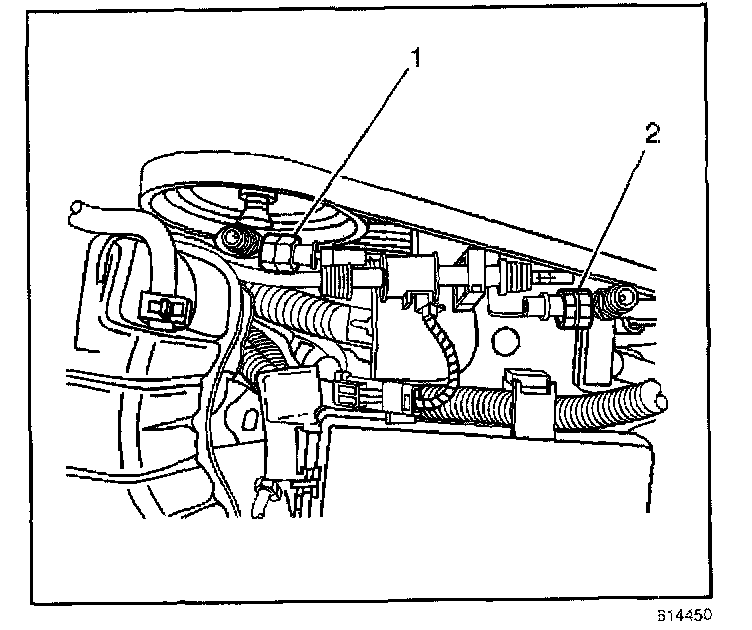

2. Loosen the condenser tube nut (2).




3. Disconnect the condenser tube (2) from the orifice valve hose.
4. Remove the right headlamp.




5. Disconnect the condenser tube from the condenser.
6. Remove the condenser tube.

INSTALLATION PROCEDURE
1. Install the condenser tube.

IMPORTANT: Inspect the seal washers for damage before reinstalling the A/C lines and hoses. If any damage is noted during inspection, the suspect seal must be replaced. Flat washer type seals do not require lubrication.

2. Connect the condenser tube to condenser.




3. Install the condenser tube nut.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the nut to 20 N.m (15 lb ft).

4. Install the right headlamp.
5. Install the hose (2) to the orifice solenoid.

Tighten
Tighten the connection to 20 N.m (15 lb ft).

6. Recharge the A/C system.
7. Leak test the fittings of the component using the J 39400-A.
