Blower Motor: Service and Repair
BLOWER MOTOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the right side sound insulator.
2. Remove the I/P compartment.
3. Remove the Dash Integration Module (DIM) from bracket.
4. Remove the two rear DIM bracket screws.
5. Reposition the DIM bracket to allow for removal of the blower motor.
6. Disconnect the electrical connector (1) from the blower motor.
7. Disconnect the blower motor ventilation tube (2) from the module.

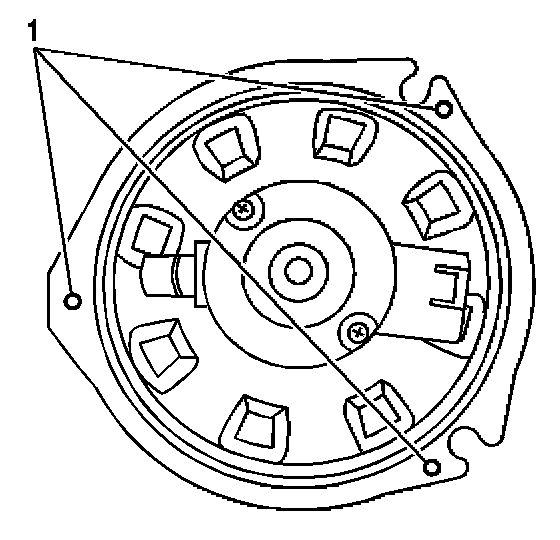

8. Remove the blower motor retaining screws (1).
9. Remove the blower motor from the vehicle.
INSTALLATION PROCEDURE
1. Install the blower motor into the housing.
2. Install the blower motor retaining screws (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 1.4 N.m (12 lb in).
3. Connect the electrical connector (1) to the blower motor.
4. Connect the blower motor ventilation tube (2) to the module.
5. Reposition the DIM bracket to its original position.
6. Install the two rear DIM bracket screws.
7. Install the DIM into the bracket.
8. Install the IP compartment.
9. Install the right side sound insulator.
