Deflector Replacement - Instrument Panel Air - Left

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT

REMOVAL PROCEDURE
1. Remove the left I/P outer trim cover.

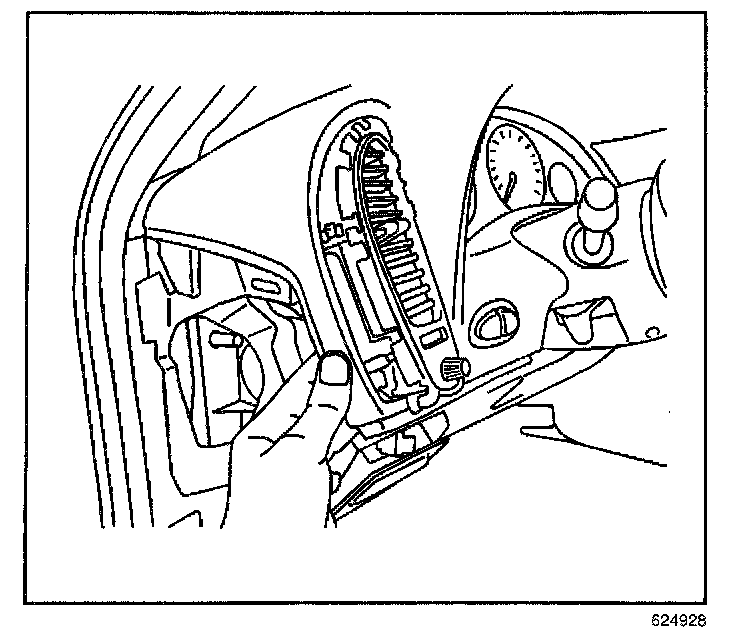

2. Remove the left air deflector by pushing from the rear and pulling out from the I/P cluster trim plate.

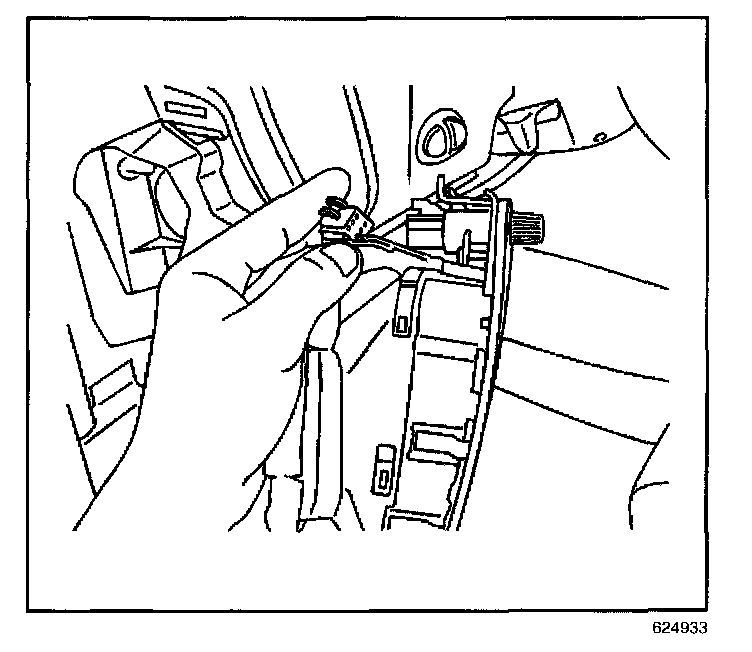

3. Disconnect the electrical connector from the dimmer switch.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the dimmer switch.




2. Install the left air deflector by pushing into the I/P cluster trim plate.
3. Install the left I/P outer trim cover.
