Deflector Replacement - Instrument Panel Air - Center

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER

REMOVAL PROCEDURE
1. Remove the I/P center trim panel.

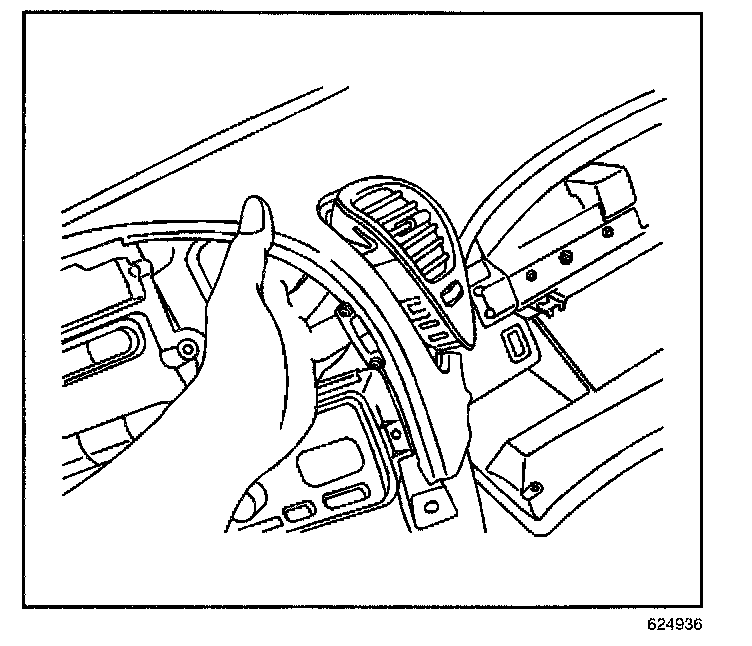

2. Remove the center air deflector by pushing firmly from the rear while pulling the air deflector out from the front of the I/P.

INSTALLATION PROCEDURE




1. Position the center air deflector to the opening in the I/P.
2. Push the air deflector into the I/P until the retaining clips engage securing the air deflector to the I/P.
3. Install the I/P center trim panel.
