Primary Camshaft Drive Chain Tensioner Replacement

Primary Camshaft Drive Chain Tensioner Replacement

^ Tools Required
- J 39946 Crankshaft Rotation Socket

Removal Procedure





1. Remove the engine front cover.

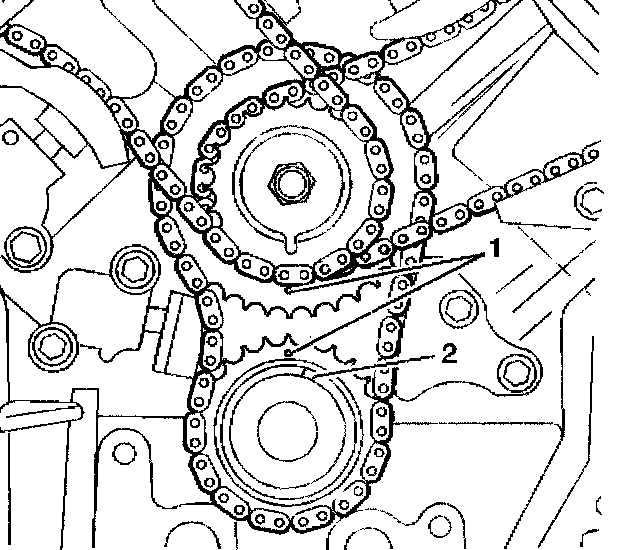

2. Align the primary timing marks (1) using the J 39946.

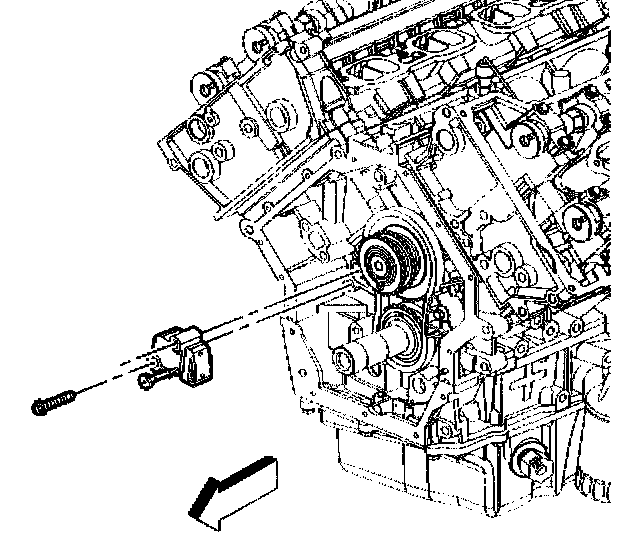

3. Remove the 2 bolts attaching the primary camshaft drive chain tensioner to the engine block.
4. Remove the primary camshaft drive chain tensioner, allowing the tensioner to expand as you remove it.

Installation Procedure





1. Collapse the primary camshaft drive chain tensioner using the following procedure:

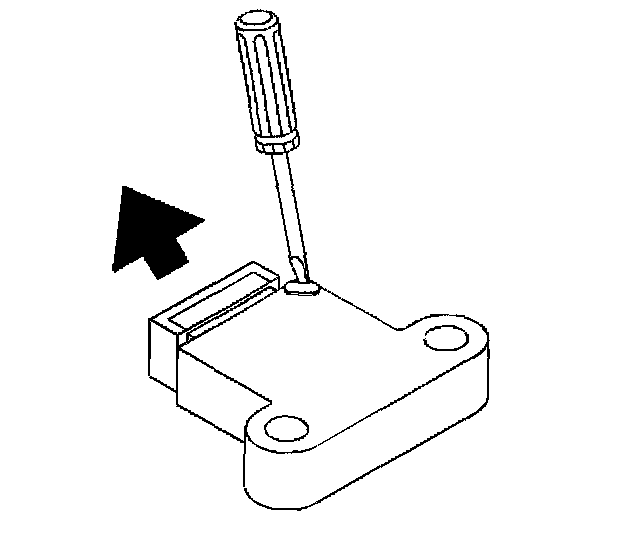

1.1. Rotate the ratchet release lever (2) clockwise and hold.
1.2. Collapse the tensioner shoe (1) and hold.
1.3. Release the ratchet lever (2).

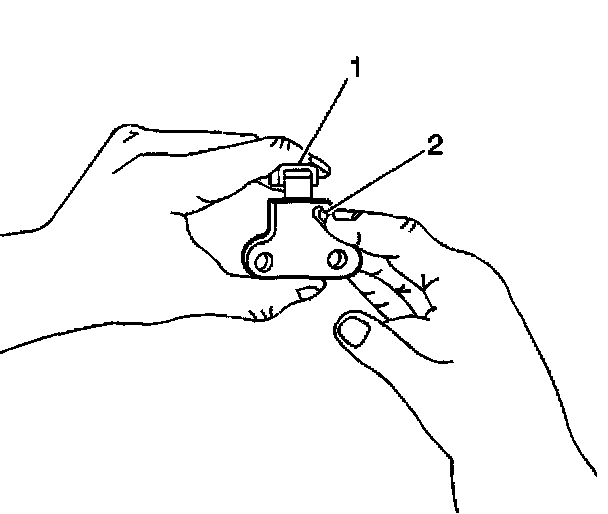

2. Slowly release the pressure on the shoe (1), until the ratchet lever (2) moves to the first detent and a "click" is heard and felt.
3. Collapse the tensioner shoe (1) and hold.





4. Insert a pin through the hole in the release lever in order to lock the tensioner shoe in the collapsed position.





Notice: Refer to Fastener Notice in Service Precautions.

Important: Ensure the tensioner release lever is facing outward.

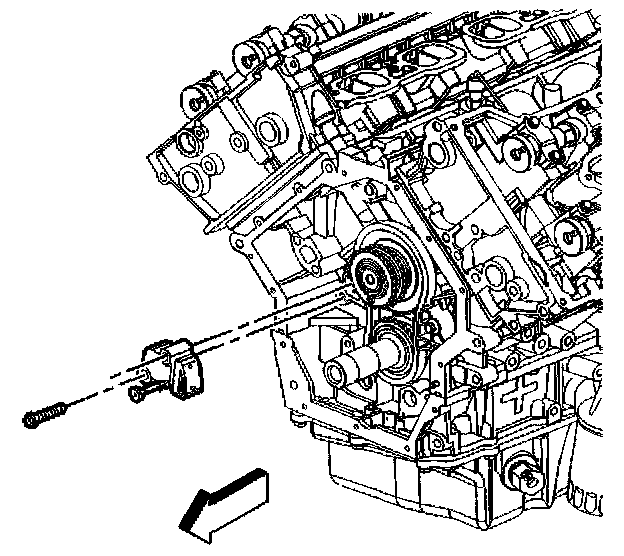

5. Install the primary camshaft drive chain tensioner and retaining bolts.
^ Tighten the primary camshaft drive chain tensioner bolts to 25 Nm (18 ft. lbs.).
6. Remove the pin holding the tensioner to tighten any slack in the timing chain.

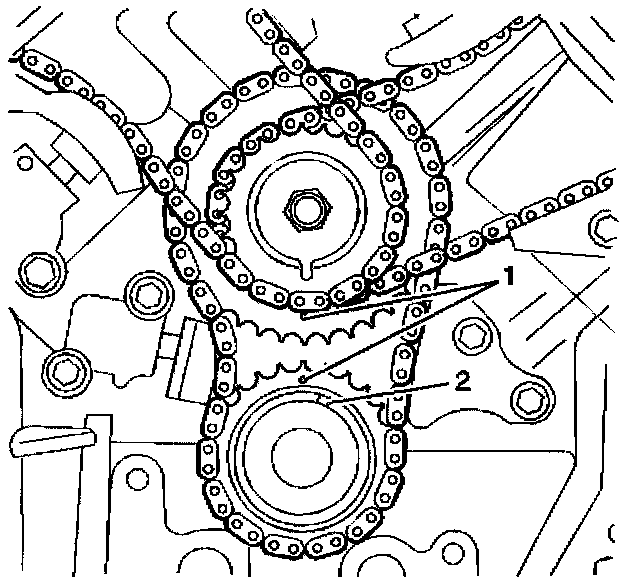

7. Ensure the primary timing marks (1) are aligned vertically.
8. Install the engine front cover.
