Timing Components: Locations

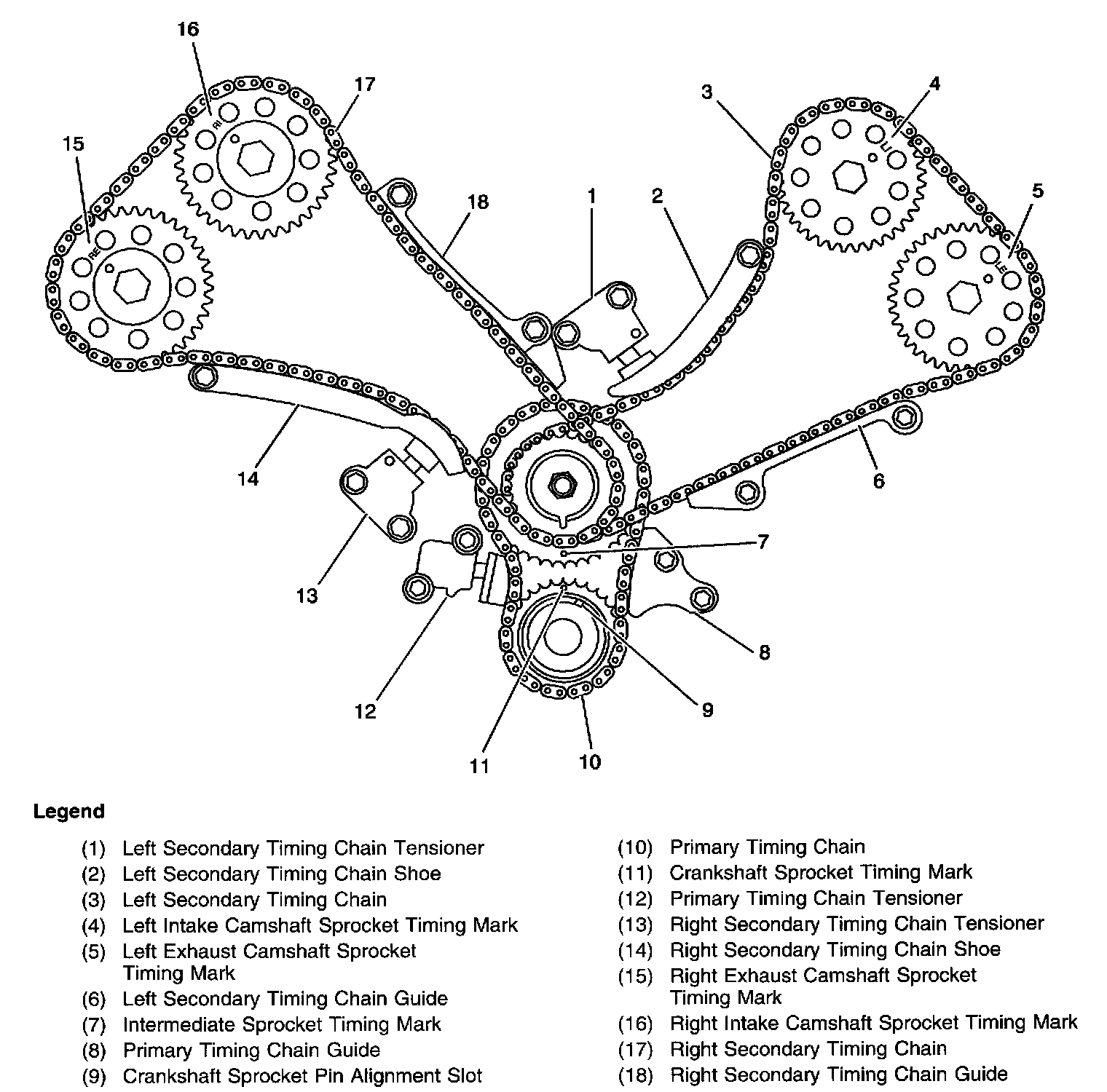

Camshaft Timing Drive Chain Alignment Diagram Camshaft Drive System Set at Base Engine Timing:
