108. Starter Installation

Starter Motor Installation





1. If installing a NEW starter, transfer the cables from the old starter.
2. Install the positive battery cable to the starter motor stud.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the starter motor stud nut.
^ Tighten the starter motor stud nut to 9.5 Nm (84 inch lbs.).
4. Install the solenoid wiring harness to the starter solenoid stud.
5. Install the starter solenoid stud nut.
^ Tighten the starter solenoid stud nut to 3.4 Nm (30inch lbs.).

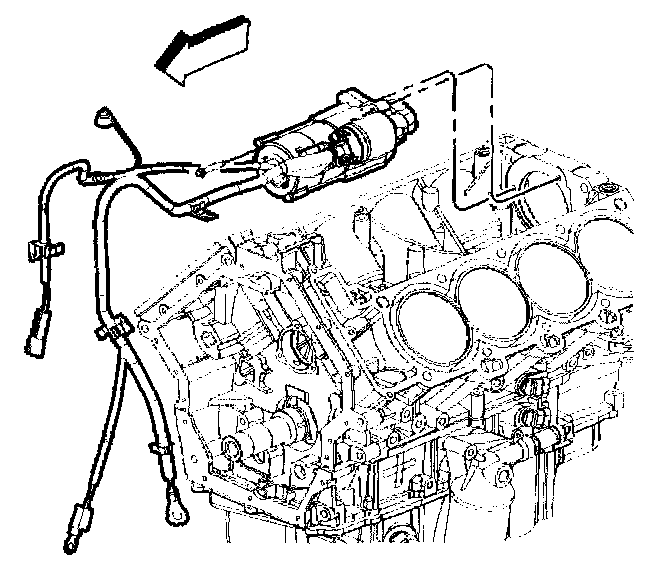

6. Place the starter motor in position in the engine valley.
7. Install the two starter motor retaining bolts.
^ Tighten the starter motor retaining bolts to 30 Nm (22 ft. lbs.).

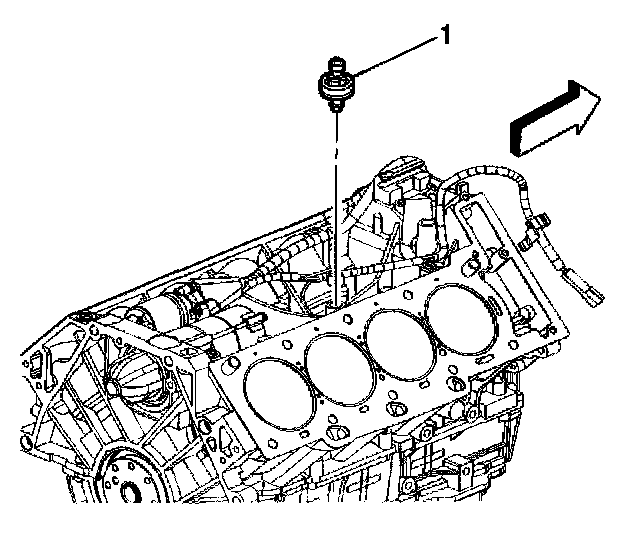

8. Install the knock sensor (1).
^ Tighten the knock sensor (1) to 20 Nm (15 ft. lbs.).

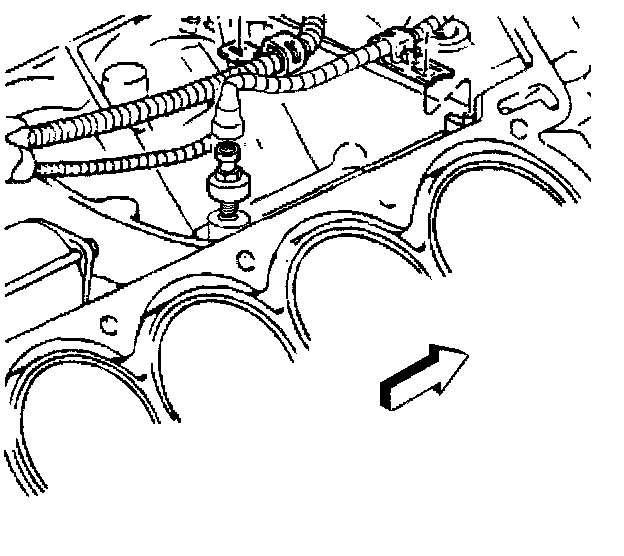

9. Connect the knock sensor wire lead.
