Front

Engine Mount Replacement- Front

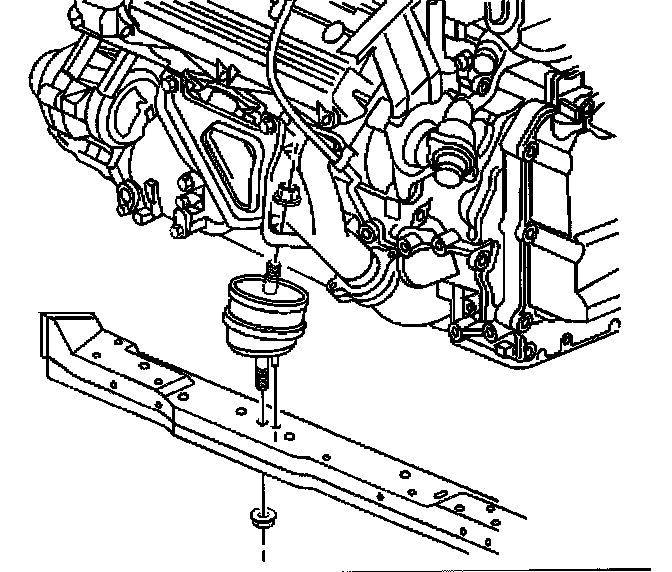

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the nut securing the front engine mount to the engine frame.
3. Remove the engine frame.
4. Remove the nut securing the front engine mount to the front engine mount bracket.
5. Remove the front engine mount.

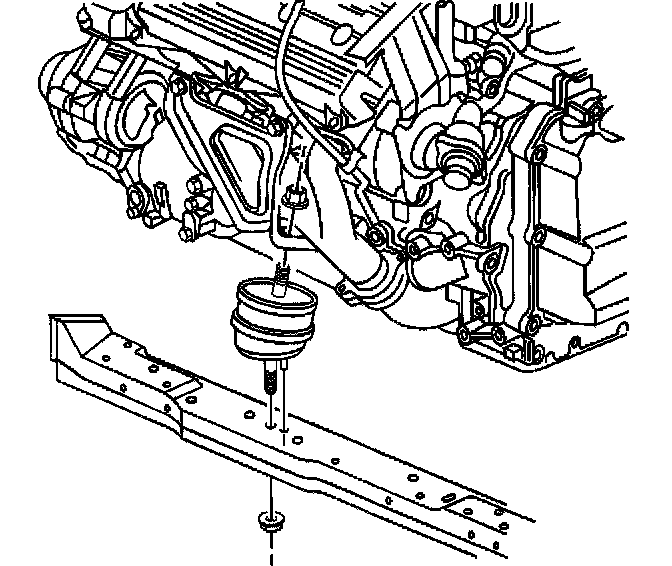

Installation Procedure





1. Insert the front engine mount stud (short) through the hole in the front engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the nut securing the front engine mount to the front engine mount bracket.
^ Tighten the front engine mount to bracket nut to 114 Nm (84 ft. lbs.).
3. Install the engine frame.
4. Install the nut securing the front engine mount to the engine frame.
^ Tighten the front engine mount nut to 70 Nm (52 ft. lbs.).
5. Lower the vehicle.
