Engine Mount Bracket Replacement- Right

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the right front wheel.
3. Support the engine assembly with a suitable jack.

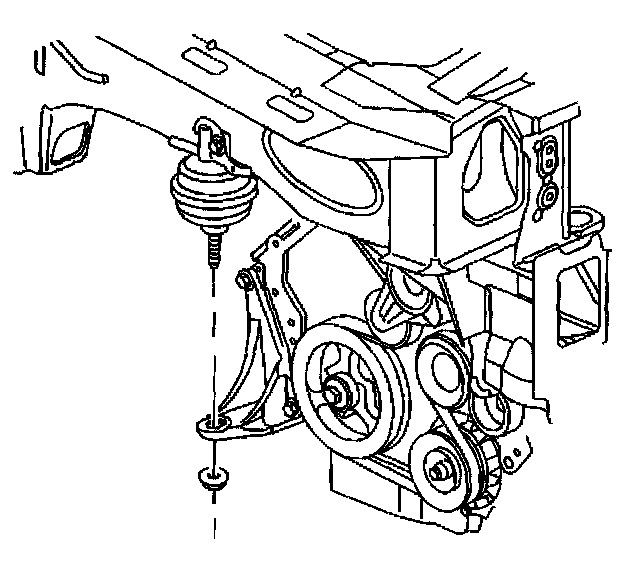

4. Remove the nut securing the right engine mount to the right engine mount bracket.
5. Lower the jack allowing the engine to lower slightly.

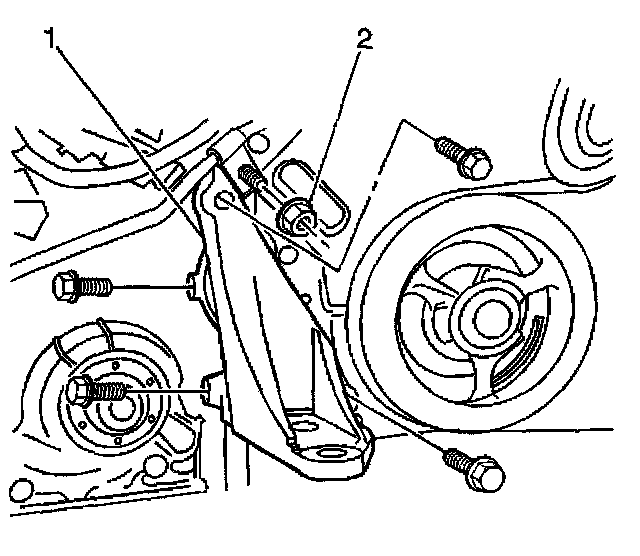

6. Remove the nut (2) securing the power steering hose to the right engine mount bracket (1).
7. Remove the four bolts securing the right engine mount bracket (1) to the engine.
8. Remove the right engine mount bracket (1).

Installation Procedure





1. Position the right engine mount bracket (1) to the engine.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the four bolts securing the right engine mount bracket (1) to the engine.
^ Tighten the right engine mount bracket bolts to 50 Nm (37 ft. lbs.).
3. Install the nut (2) securing the power steering pressure hose to the right engine mount bracket (1).
^ Tighten the power steering pressure hose retaining nut to 9 Nm (80 inch lbs.).
4. Raise the engine into position.





5. Install the nut securing the right engine mount to the right engine mount bracket.
^ Tighten the right engine mount nut to 80 Nm (59 ft. lbs.).
6. Remove the engine support jack.
7. Install the right front wheel.
8. Lower the vehicle.
