Drive Belt Tensioner: Service and Repair

Drive Belt Tensioner Replacement

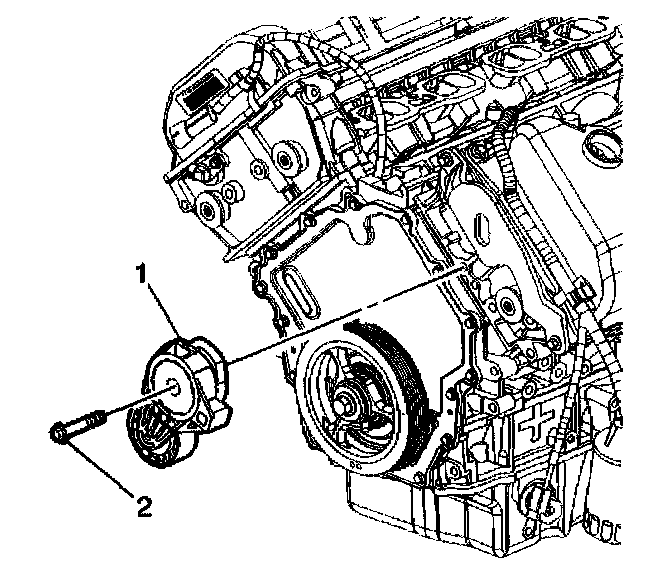

Removal Procedure





1. Remove the drive belt.
2. Remove the drive belt tensioner bolt (2).
3. Remove the drive belt tensioner (1).

Installation Procedure





1. Install the drive belt tensioner (1).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bolt (2).
^ Tighten the drive belt tensioner bolt to 50 Nm (37 ft. lbs.).
3. Install the drive belt.
