Valve Rocker Arm Replacement- Left

Removal Procedure





1. Remove the left camshafts.

Important: If the followers are being reused, arrange them so that they may be put back in their original locations.

2. Remove the camshaft followers.
3. Clean and inspect the rocker arms.

Installation Procedure

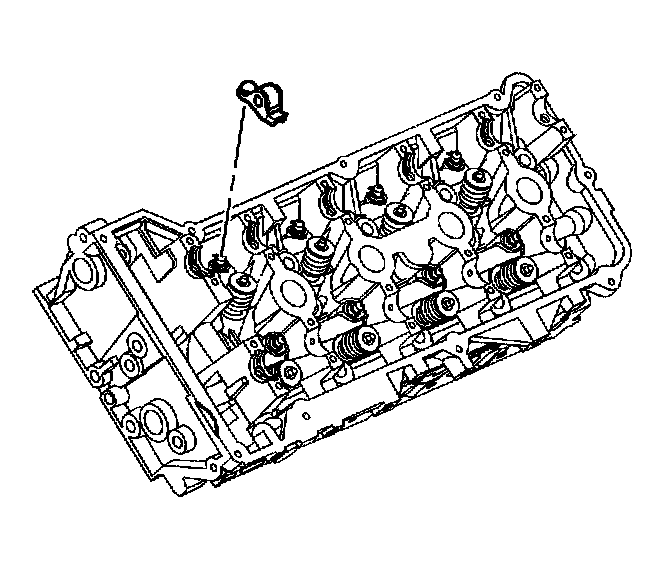

1. Apply a liberal amount of lubricant GM P/N 12345001 or equivalent to the roller pivot pocket (2) and valve slot areas (1) of the camshaft followers.





Important: The follower must be positioned squarely on the valve tip so that the full width of the roller will completely contact the camshaft lobe. If the followers are being reused you must put them back in their original location.

2. Place the camshaft followers in position on the valve tip (1) and the SHLA (1). The rounded head of the follower goes on the SHLA, while the flat end goes on the valve tip.
3. Install the left camshafts.
