Heater Hose Replacement - Outlet
HEATER HOSE REPLACEMENT - OUTLETTOOLS REQUIRED
J 38185 Hose Clamp Pliers
REMOVAL PROCEDURE
1. Drain the cooling system.
2. Using the J 38185 loosen the clamp.
3. Remove the outlet heater hose from the thermostat housing.
4. Remove the outlet hose from the surge tank.
5. Using the J 38185 loosen the outlet hose clamp.
6. Remove the hose from the heater core.

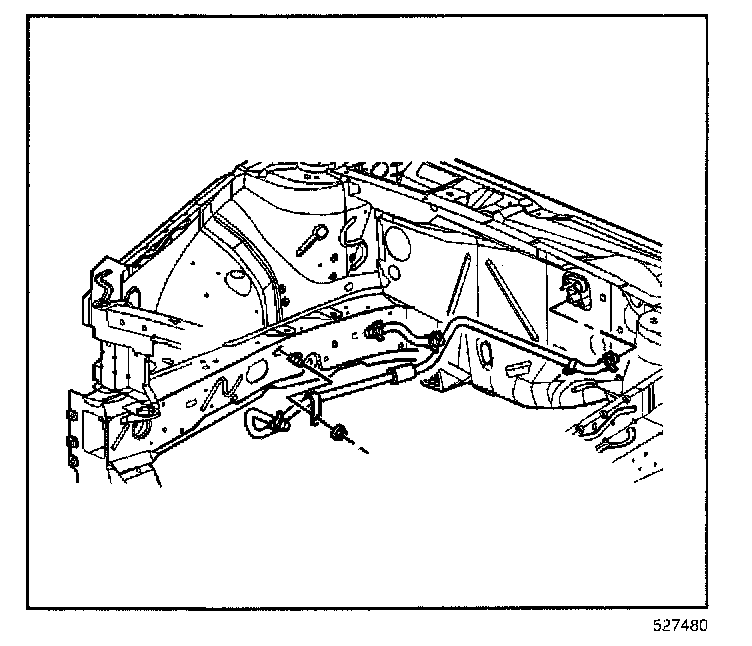

7. Remove the nut from the outlet hose mounting bracket.
8. Remove the heater hose assembly.
INSTALLATION PROCEDURE
1. Position the outlet heater hose assembly into the vehicle and onto the stud.
2. Install the nut.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nut to 9 N.m (80 lb in).
3. Install the outlet hose to the heater core.
4. Using the J 38185 reposition the clamp.
5. Install the outlet hose to the surge tank
6. Using the J 38185 reposition the clamp.
7. Install the outlet hose to the thermostat housing.
8. Using the J 38185 reposition the clamp.
9. Fill the cooling system.
