Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine and Engine Compartment Views
>>

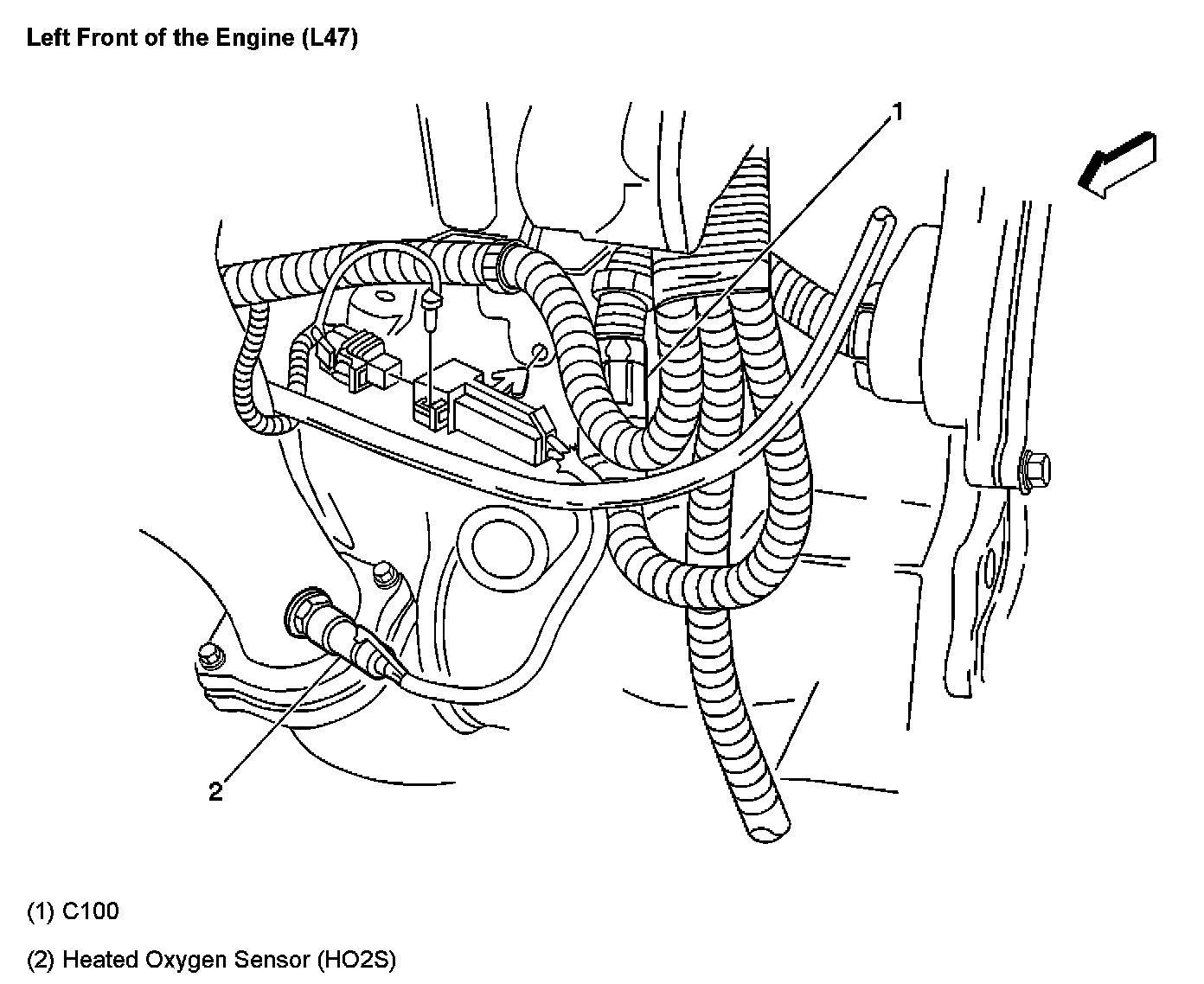

Left Front of the Engine
Left Front of the Engine
Left Front Of The Engine:
