Piston, Rings, Bearing and Connecting Rod Assembly

Piston, Rings, Bearing and Connecting Rod Assembly

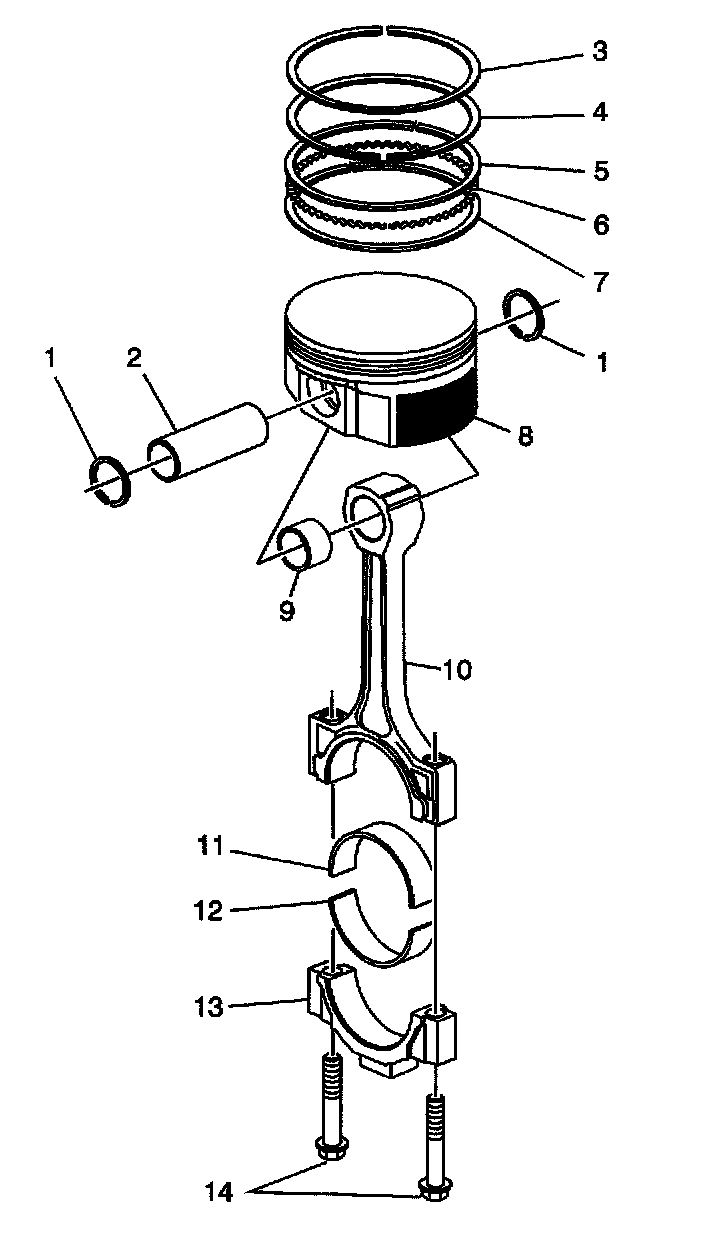

Disassembled View

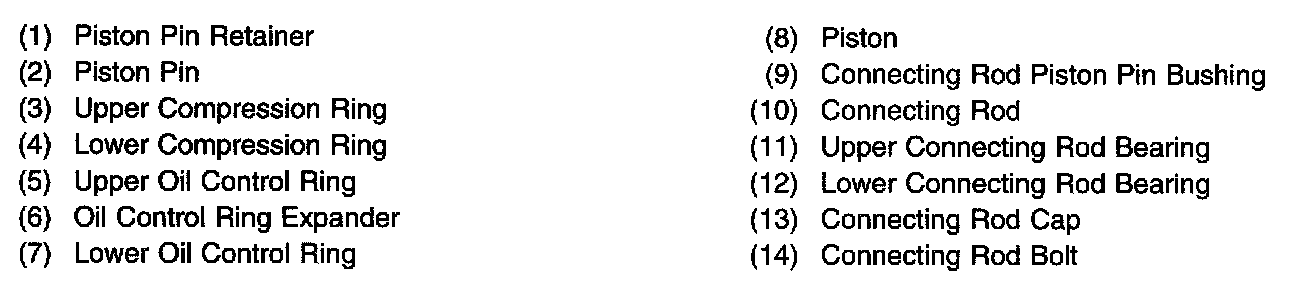

Legend
