Engine Covers and Component Assemblies (2 of 2)
Engine Covers and Component Assemblies (2 of 2)
Engine Covers and Component Assemblies (2 of 2)

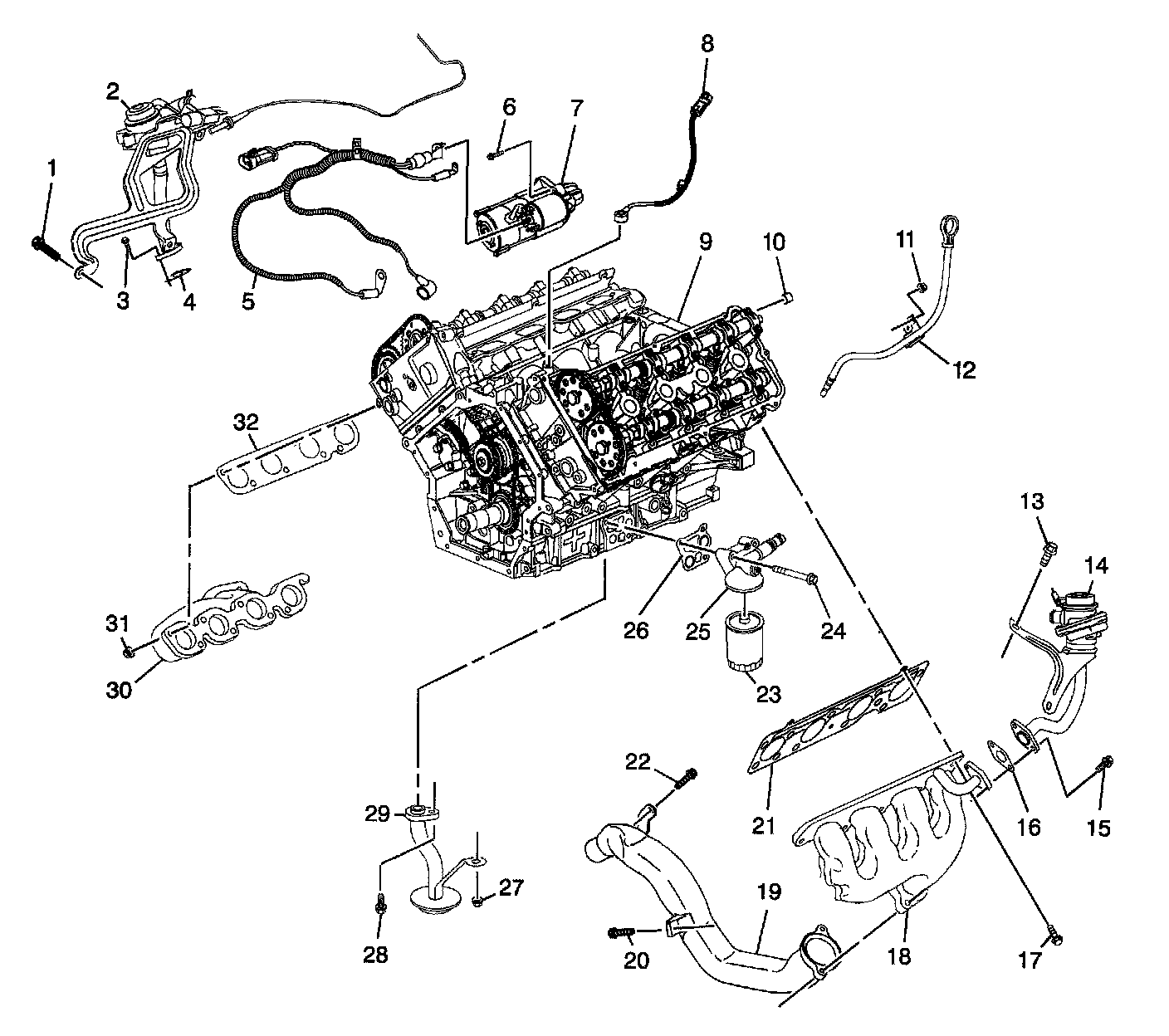

Disassembled View

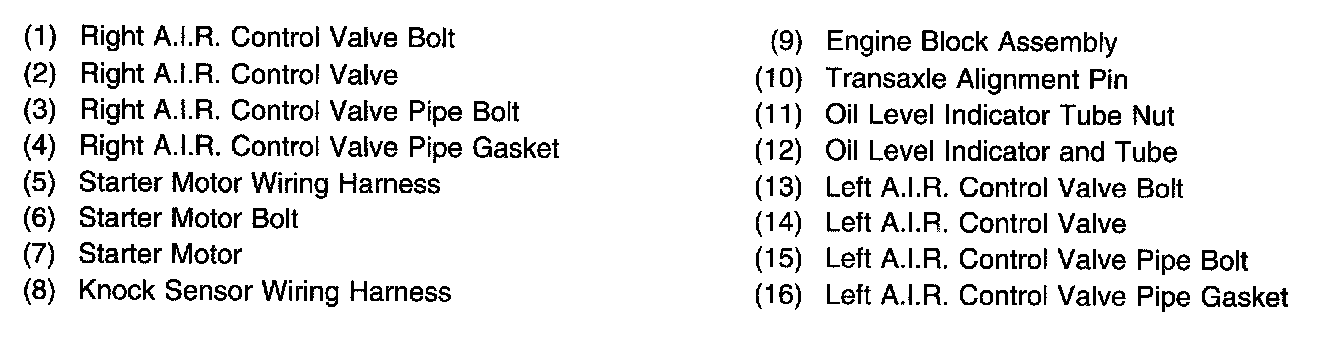

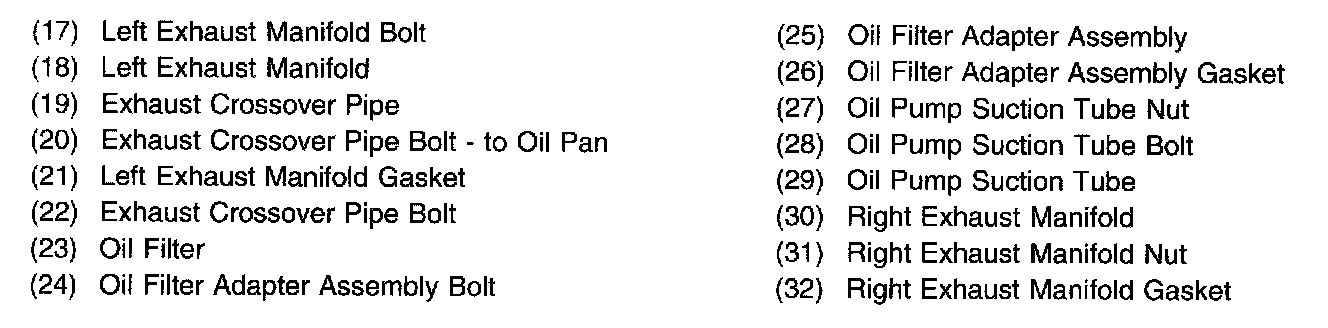

Legend
