Case and Associated Parts

Part 1 Of 2:




Part 2 Of 2:

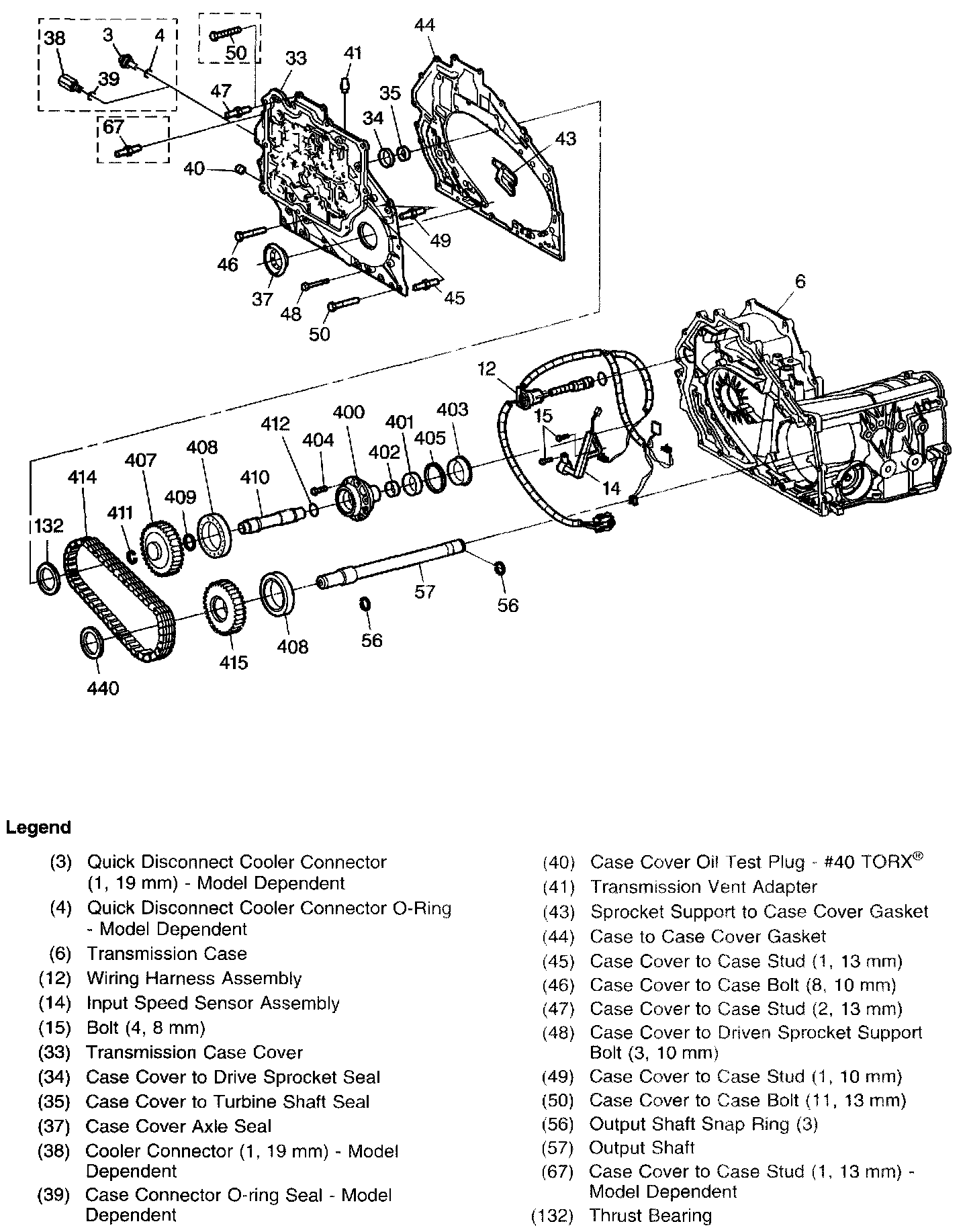

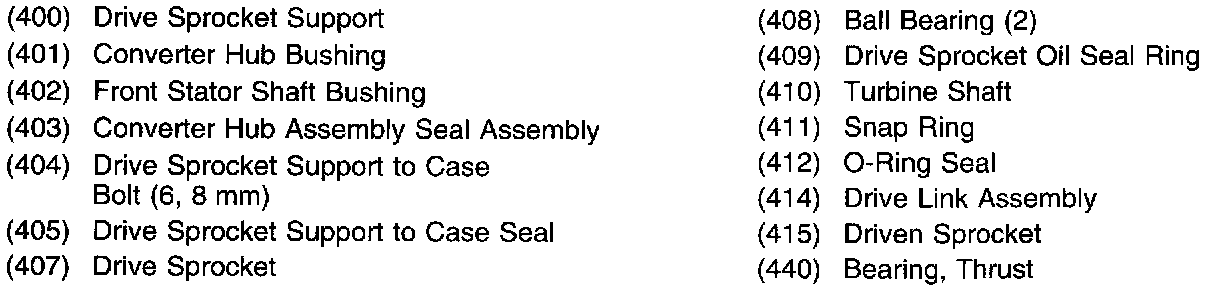

Case and Associated Parts (1 of 3)

Part 1 Of 2:




Part 2 Of 2:

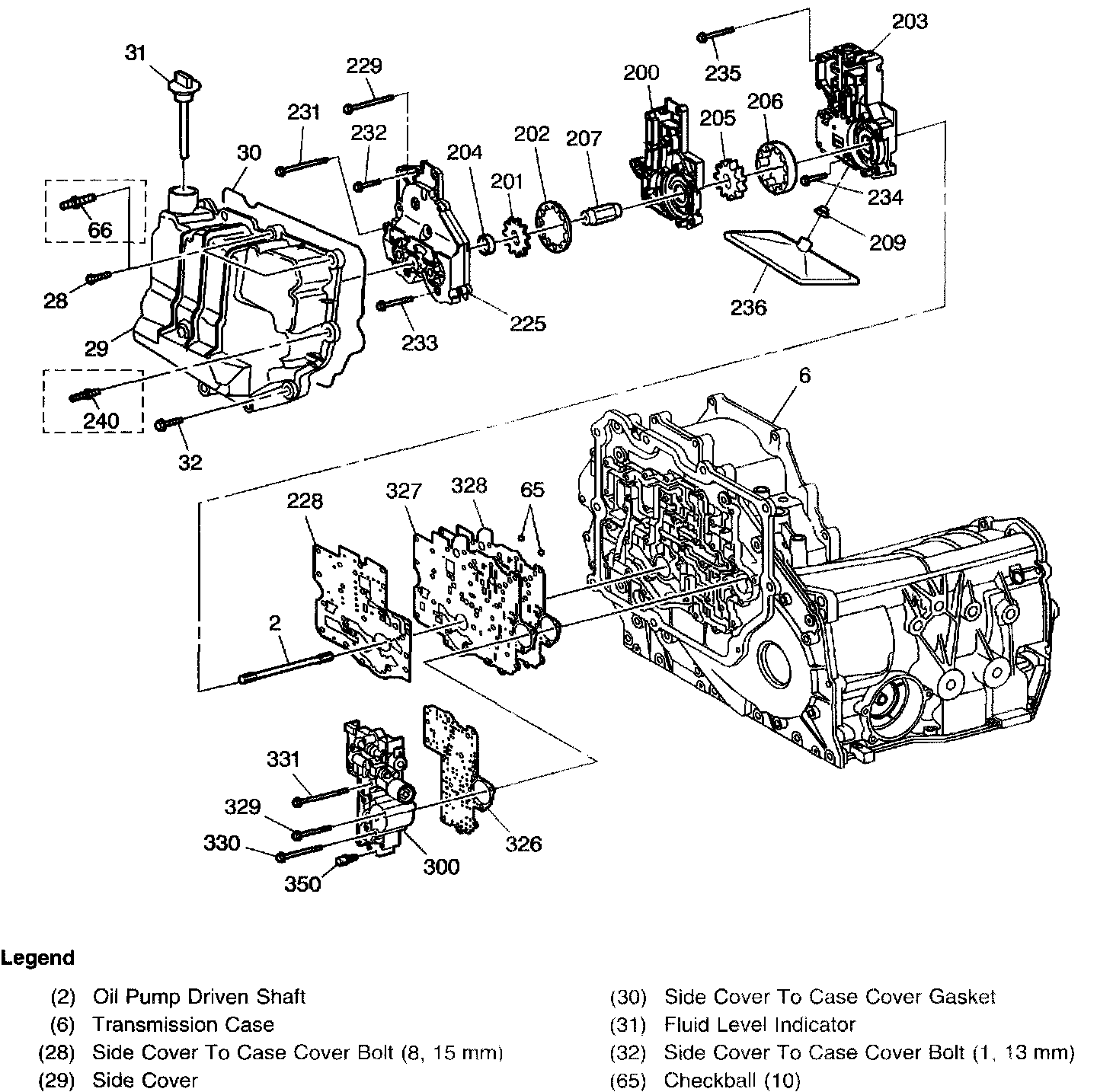

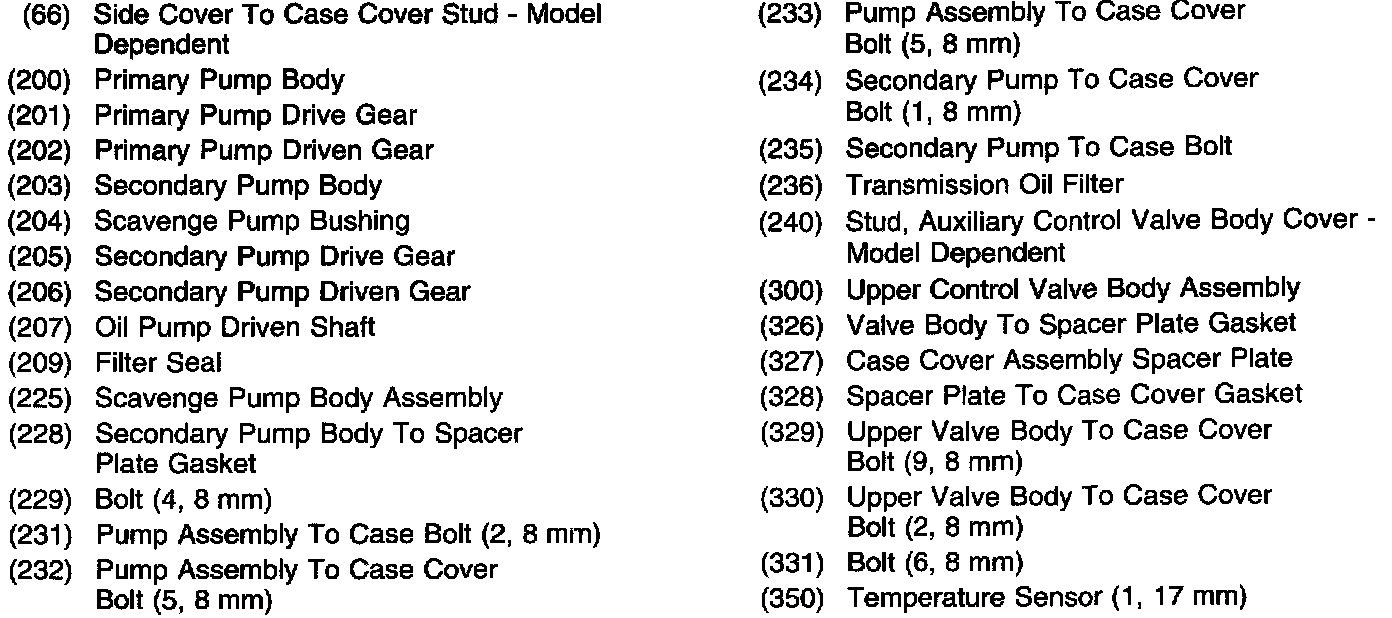

Case and Associated Parts (2 of 3)

Part 1 Of 2:

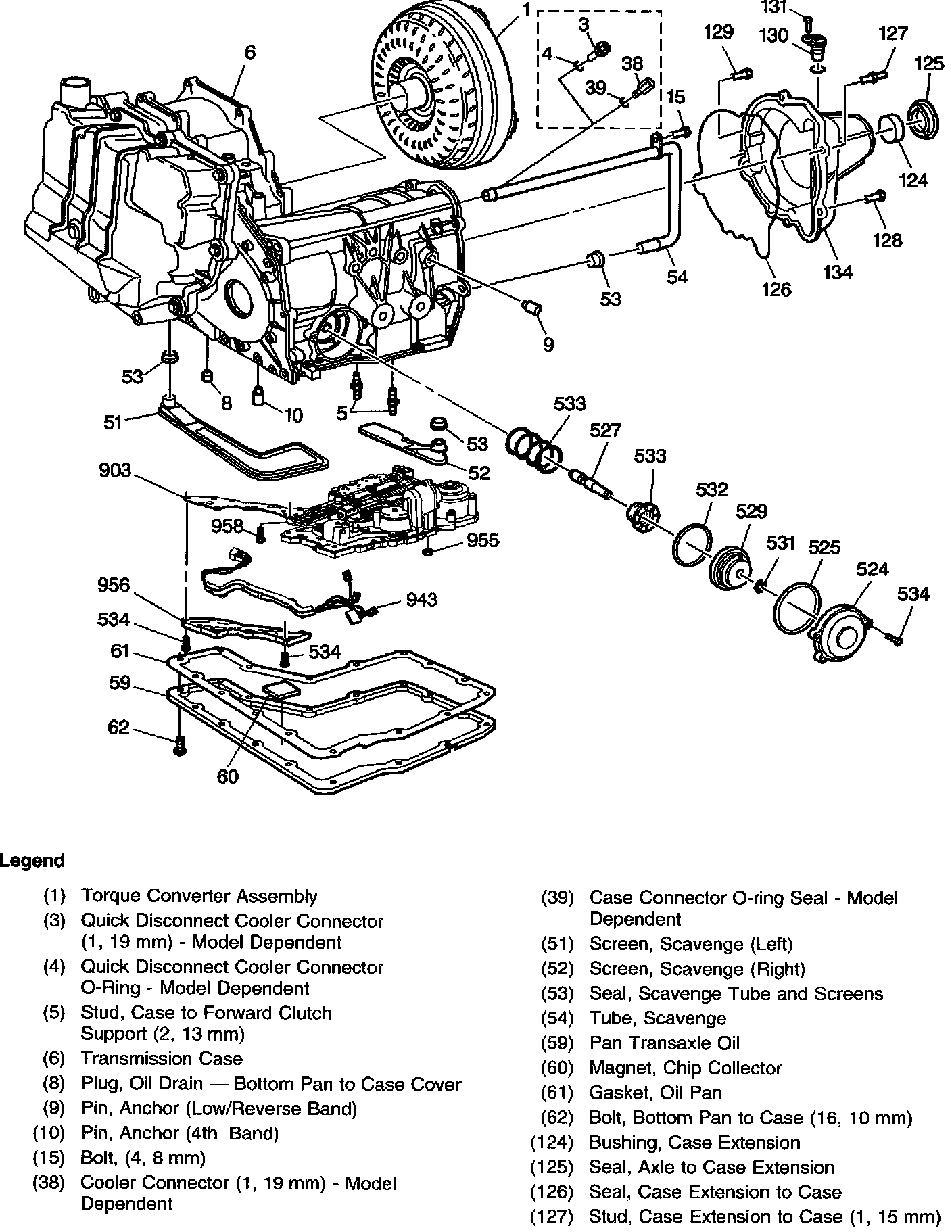

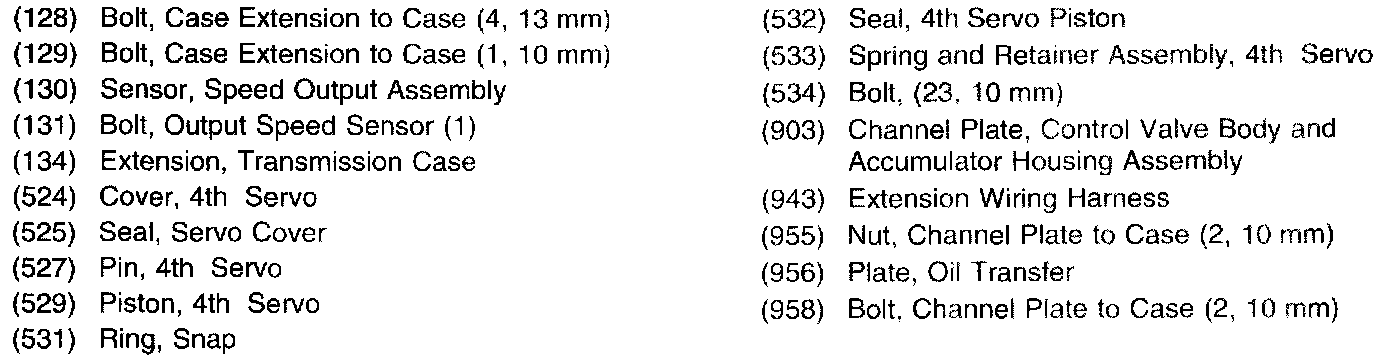

Case and Associated Parts (3 of 3)
