Radio/Audio System Diagrams

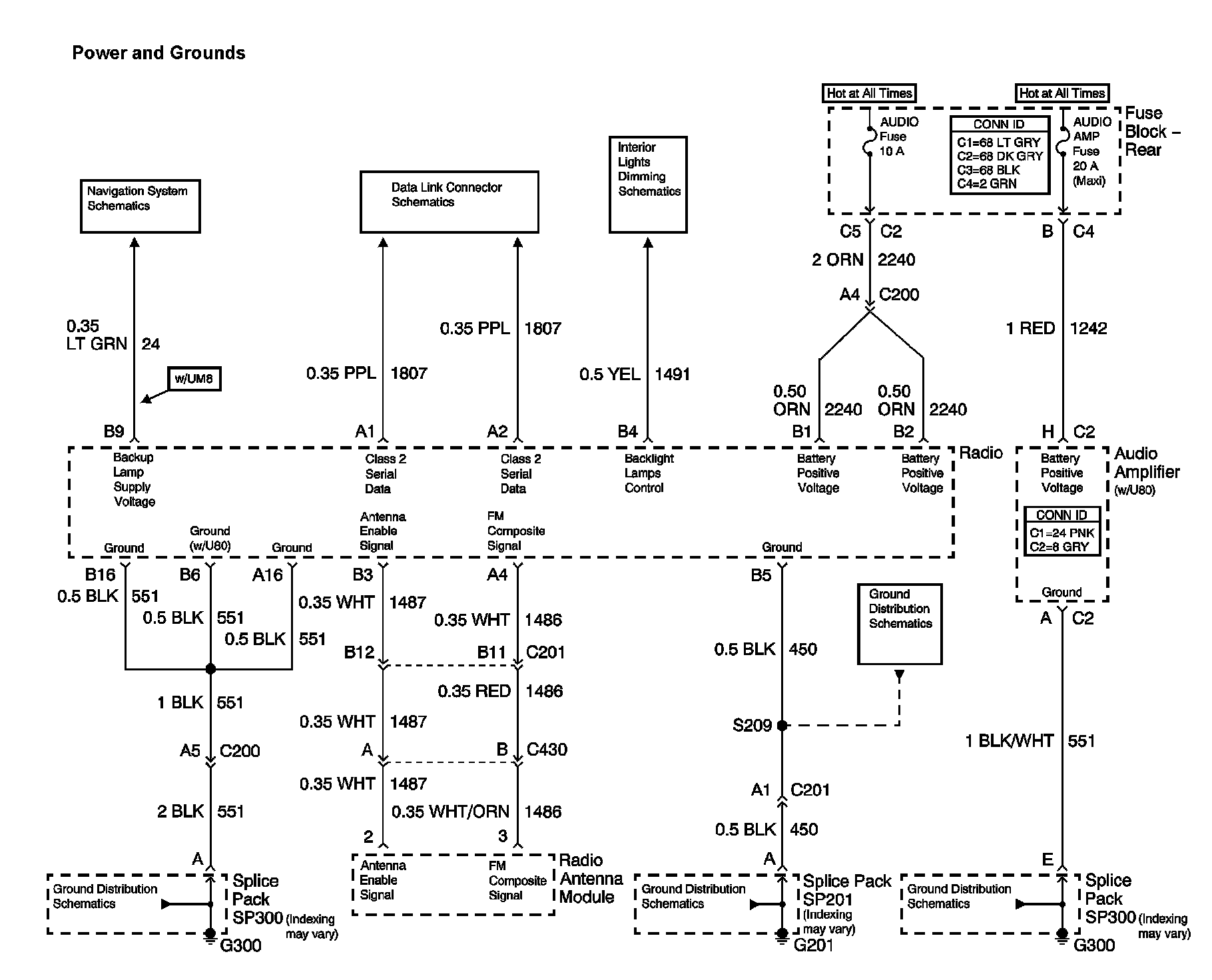

Radio/Audio System Diagram 1:

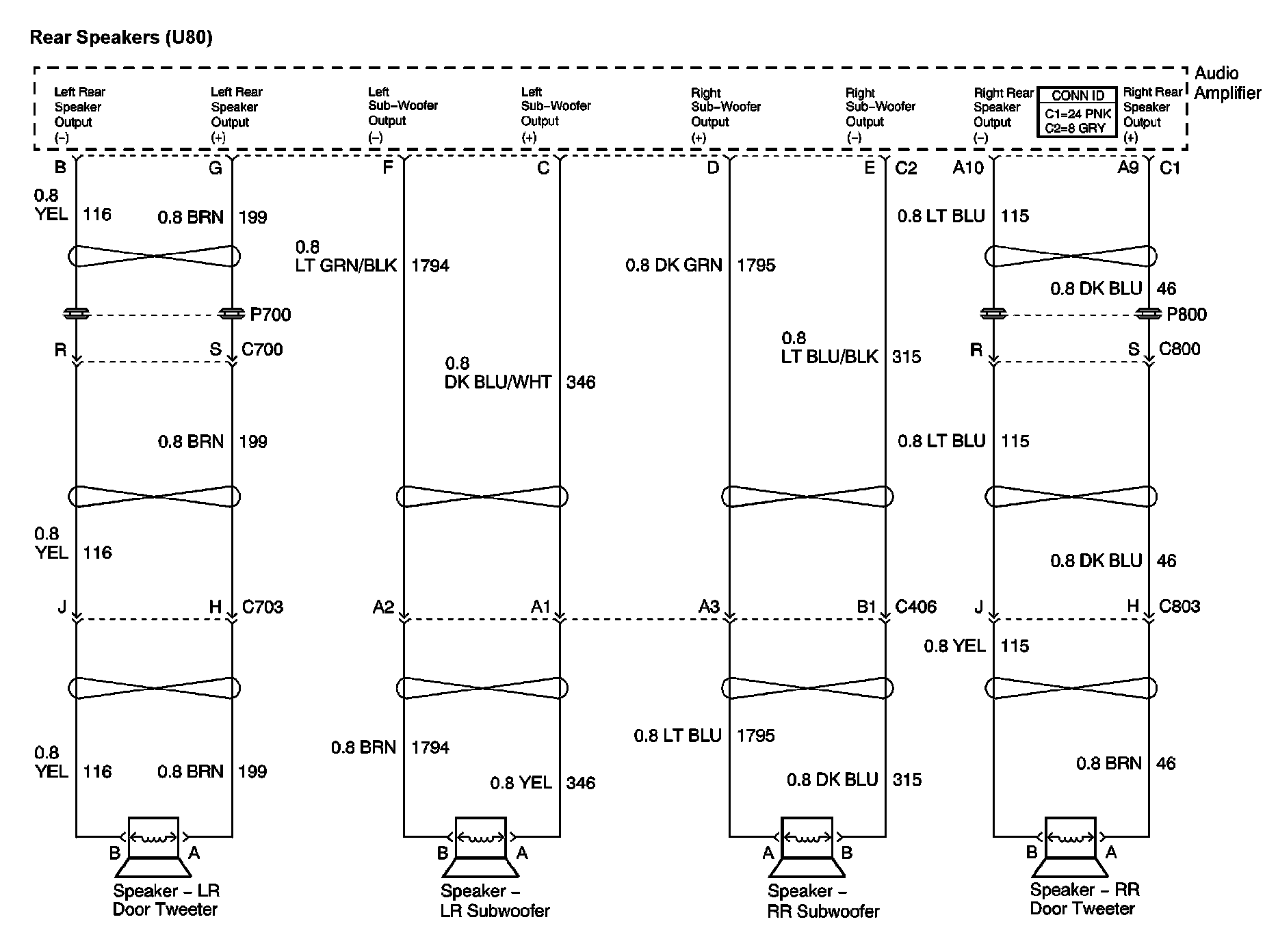

Radio/Audio System Diagram 2:

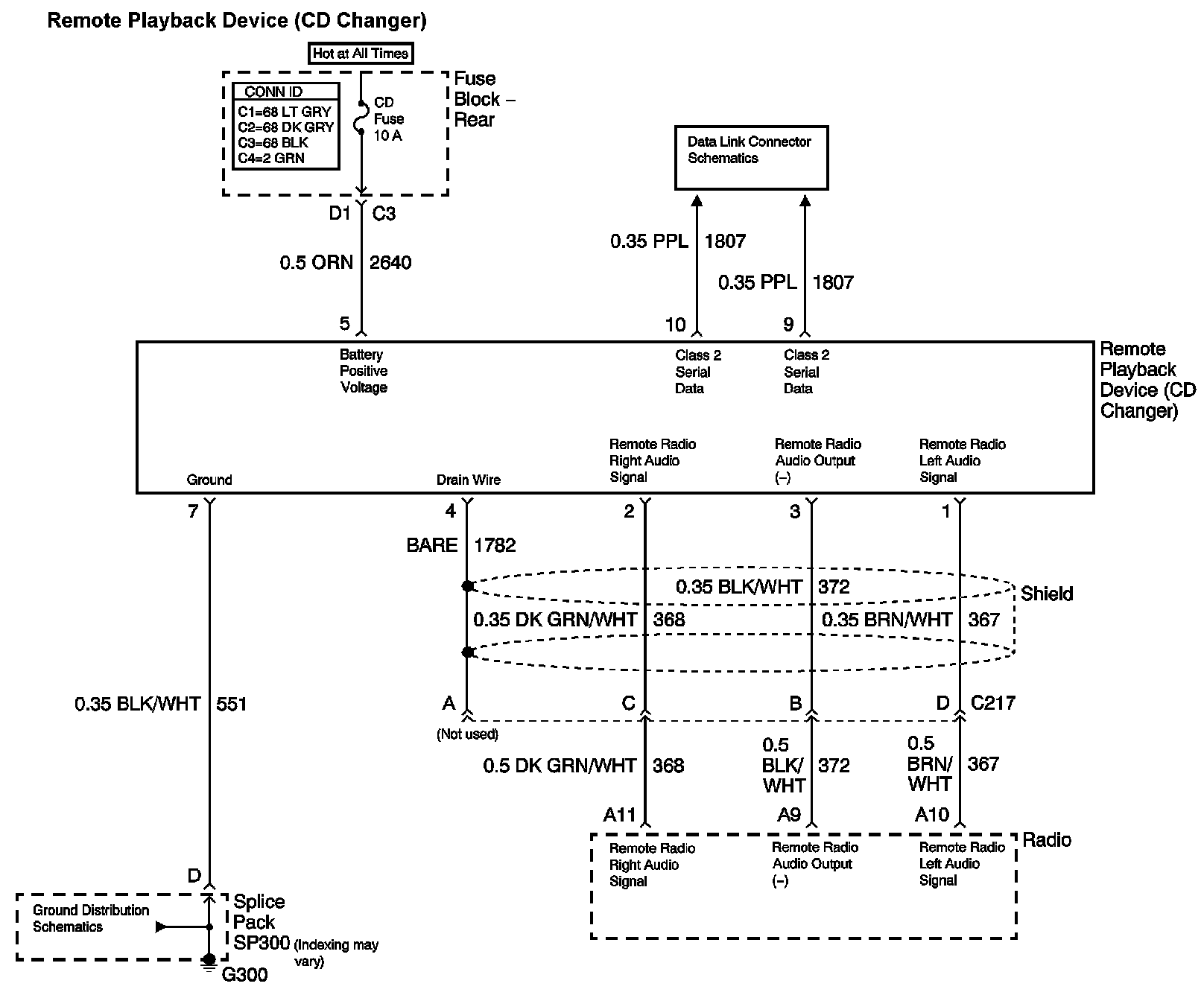

Radio/Audio System Diagram 3:

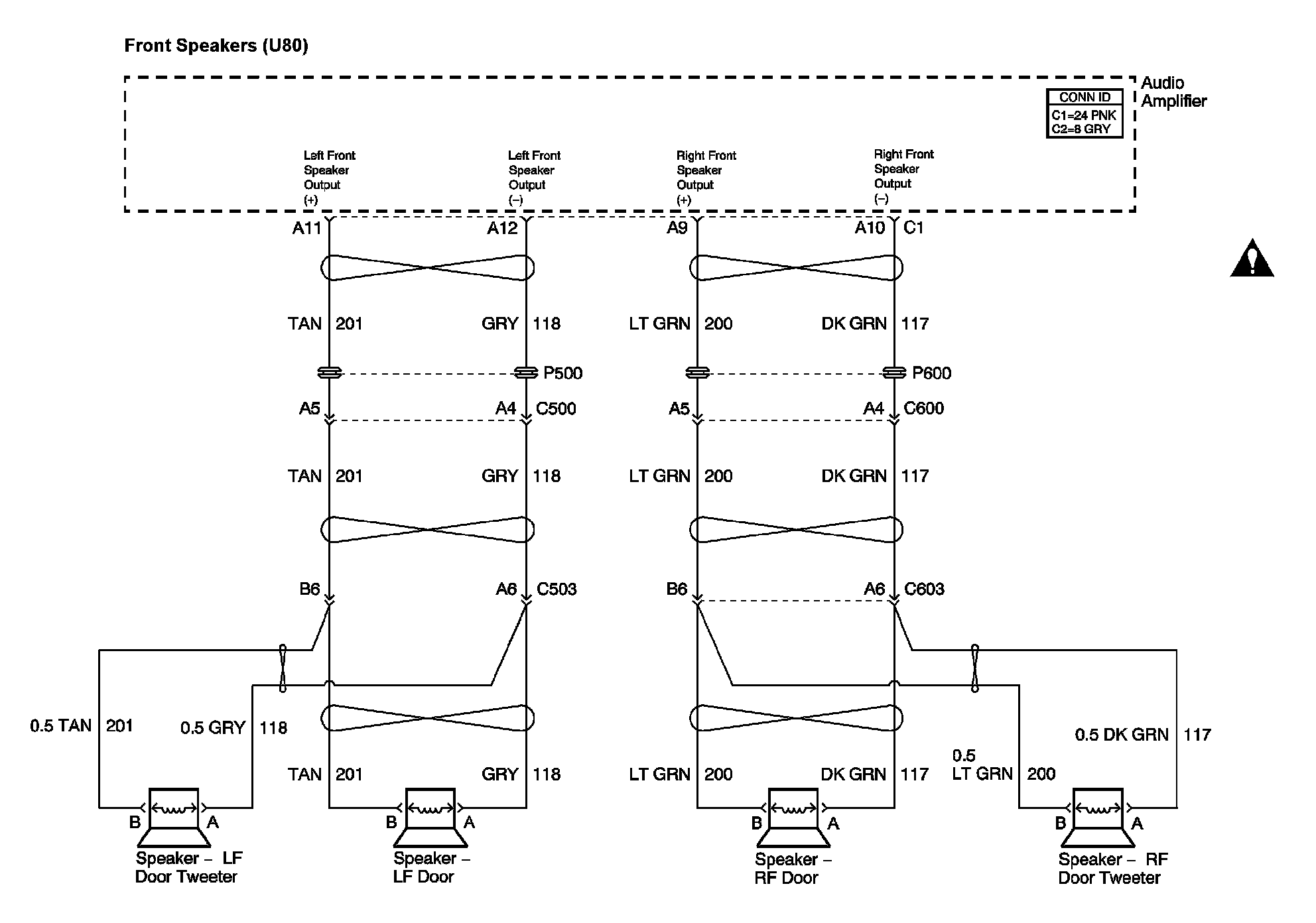

Radio/Audio System Diagram 4:

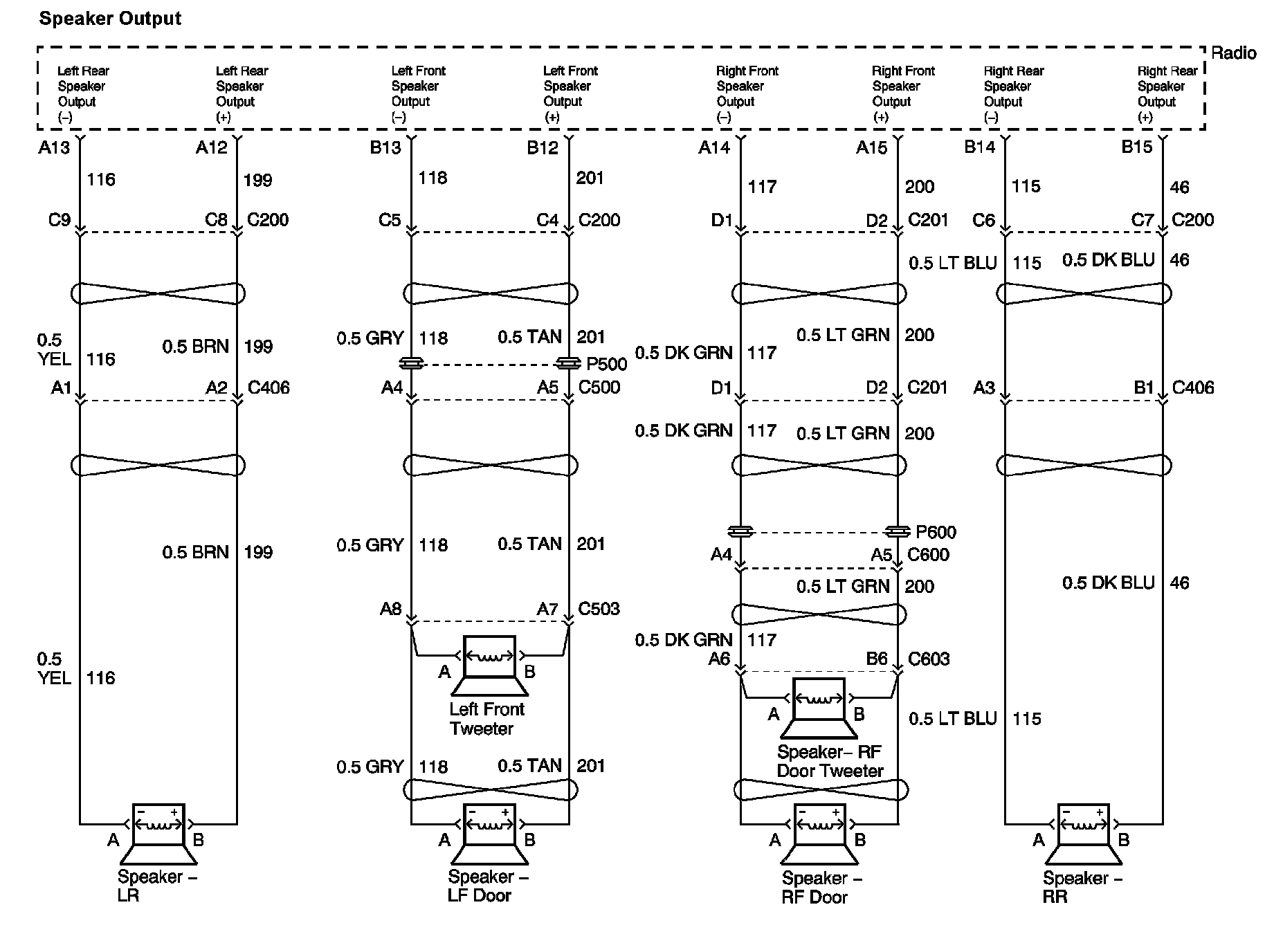

Radio/Audio System Diagram 5:




Radio/Audio System Diagram 6:




Radio/Audio System Diagram 7:
