Shift Interlock, A/T

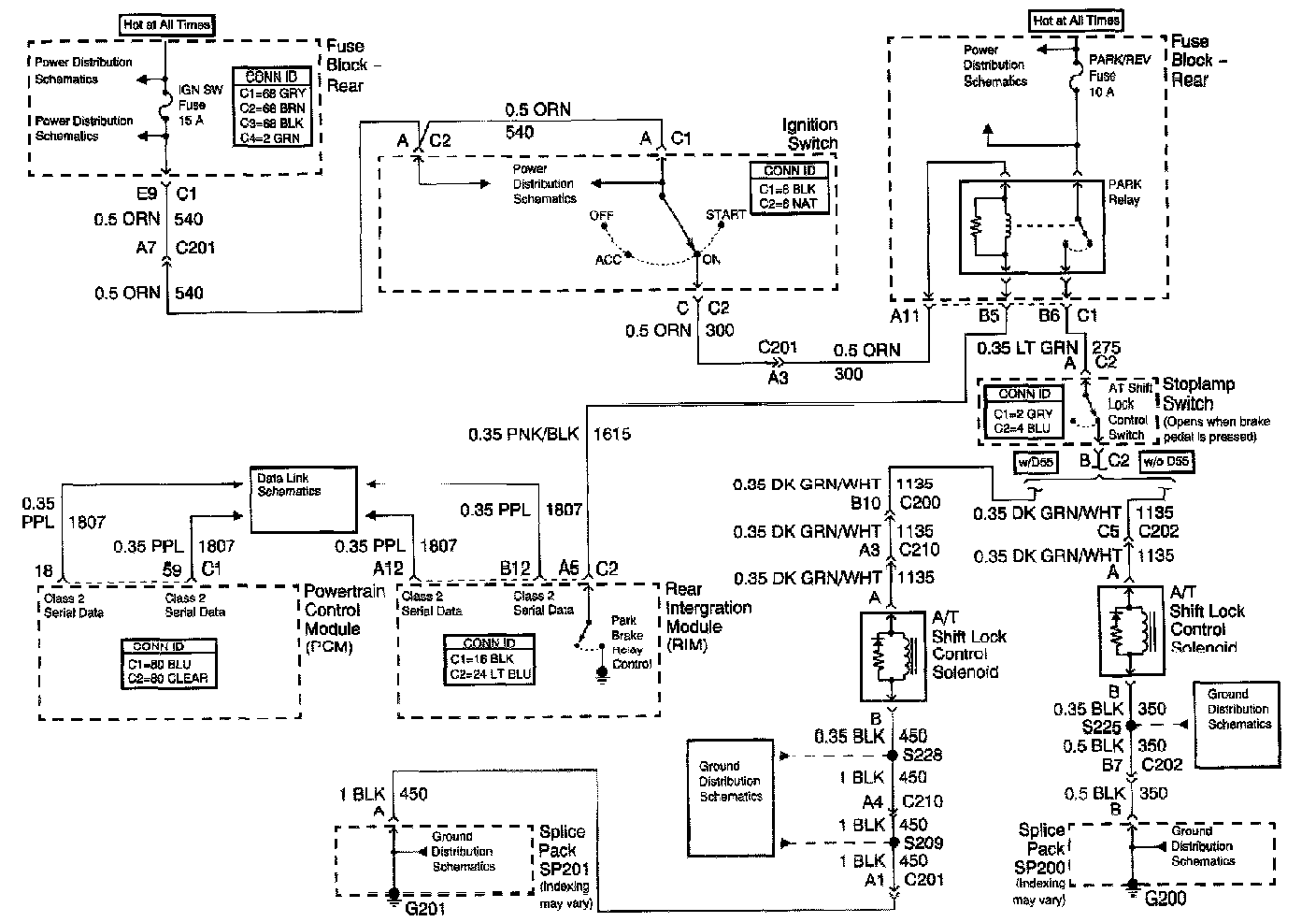

Automatic Transmission Shift Lock Control Schematics (Power and Grounds)

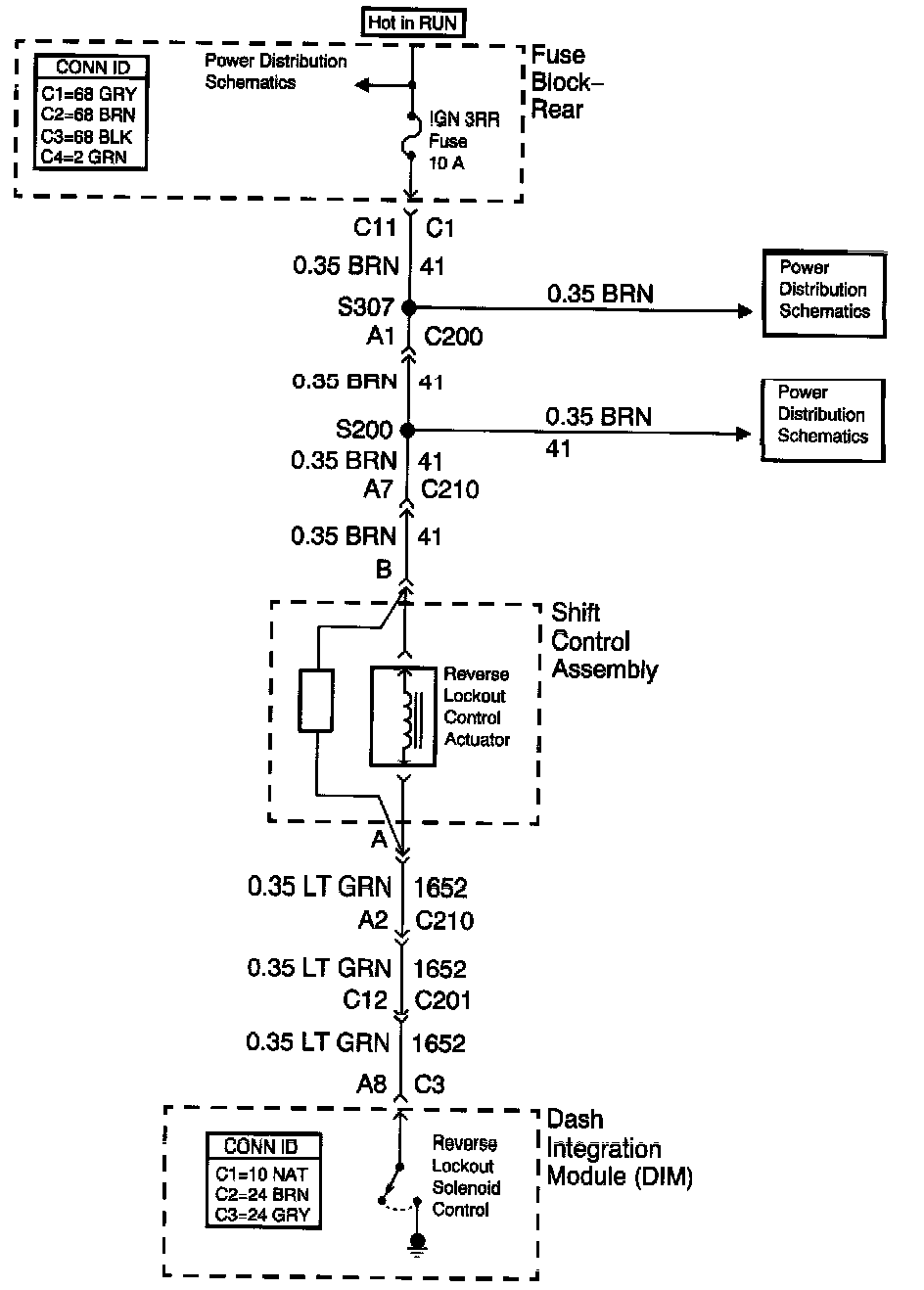

Automatic Transmission Shift Lock Control Schematics (Reverse Lockout Control)
