Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker-LR Subwoofer (With RPO Code U80)

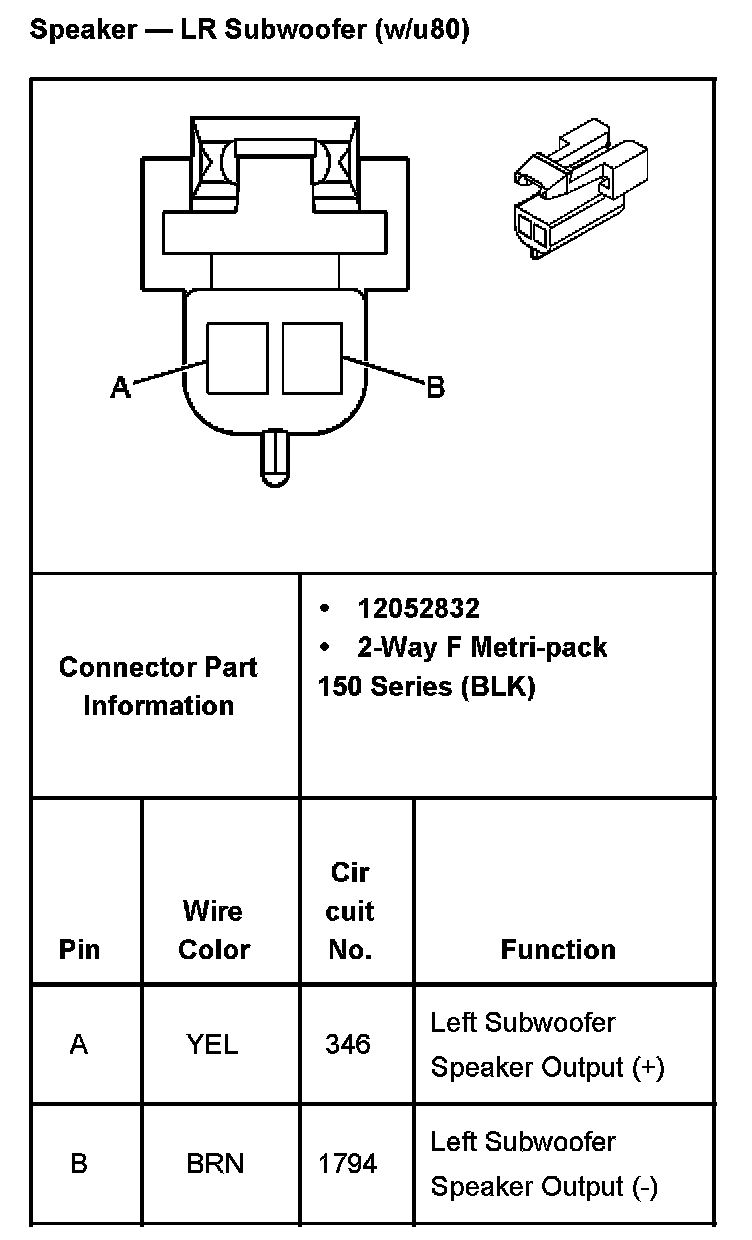

Speaker-LR Subwoofer (With RPO Code U80)

Speaker-LR Subwoofer (With RPO Code U80):
