Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module >> Ignition Control Module (ICM) - Rear Bank

Ignition Control Module (ICM) - Rear Bank

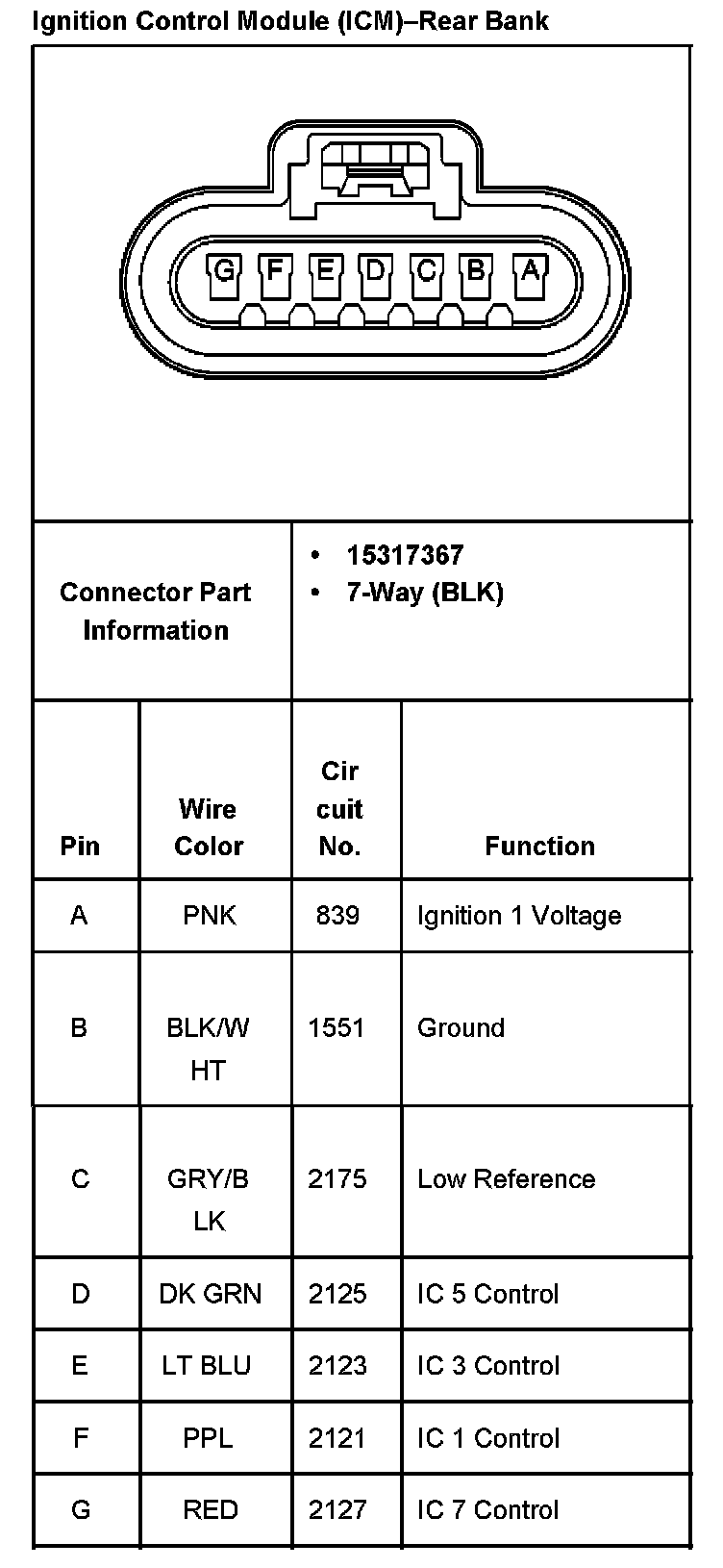

Ignition Control Module (ICM) - Rear Bank:
