C210 - I/P Dash Harness Inline to Center Console Harness

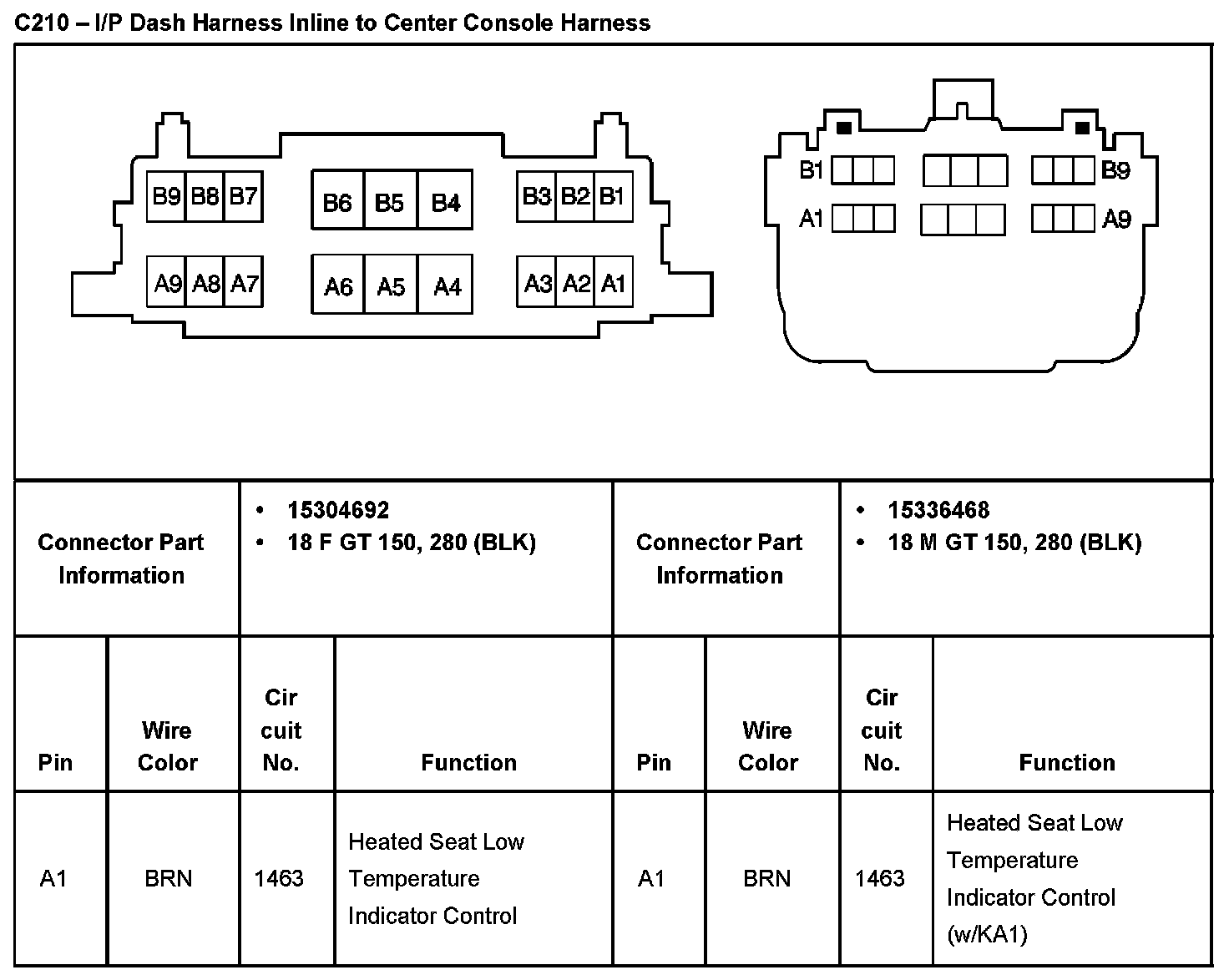

C210 - I/P Dash Harness Inline To Center Console Harness Part 1:

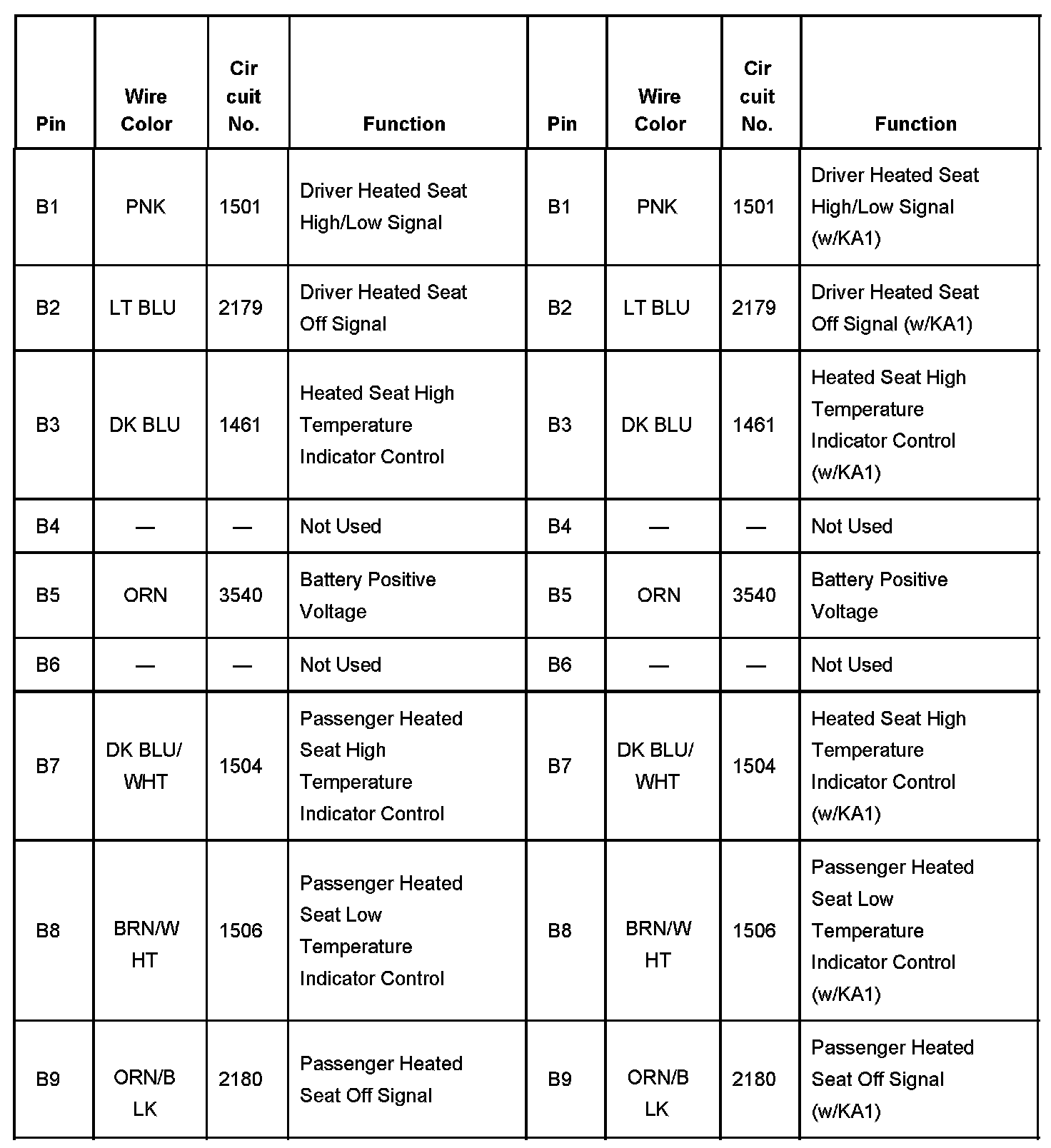

C210 - I/P Dash Harness Inline To Center Console Harness Part 2:

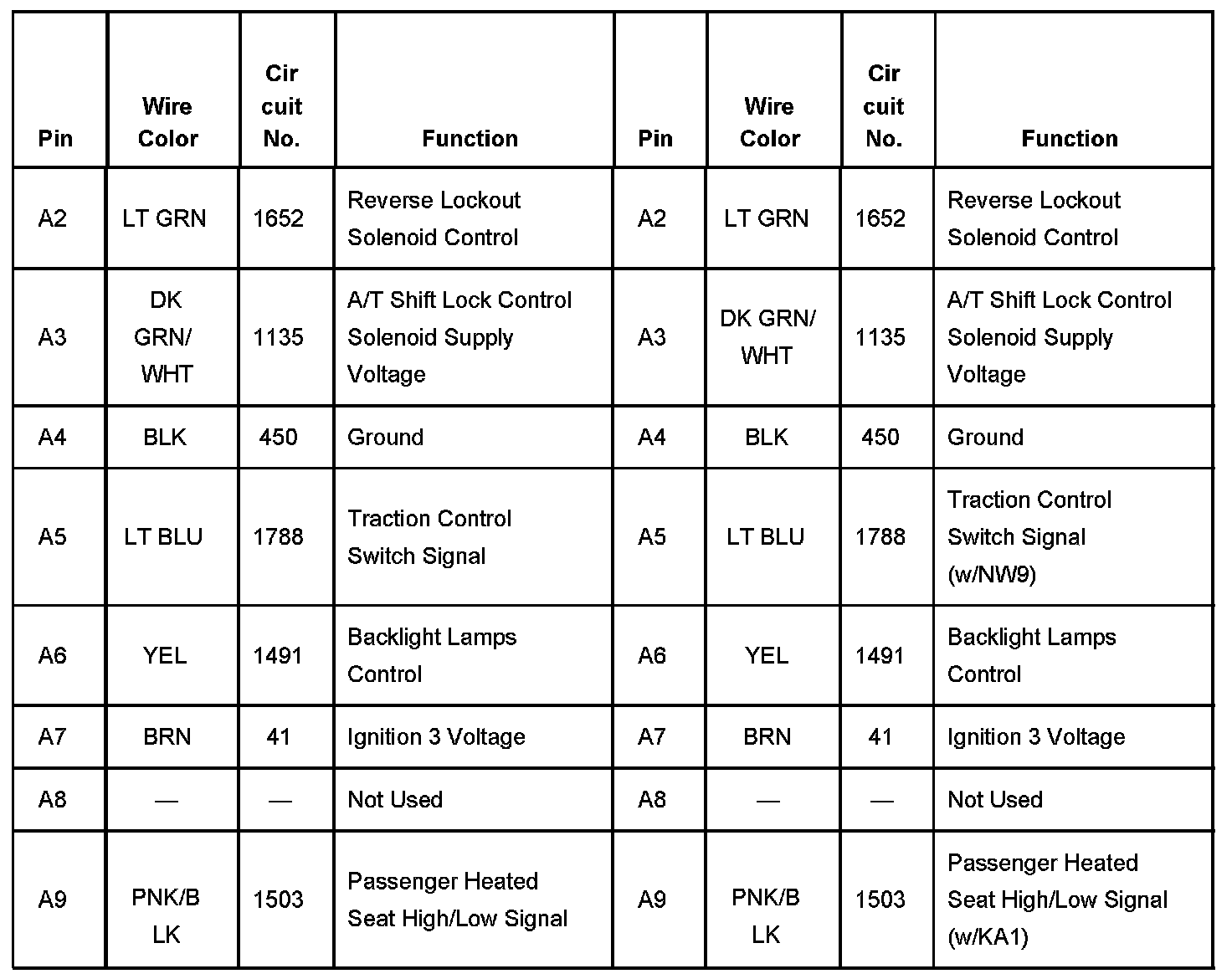

C210 - I/P Dash Harness Inline To Center Console Harness Part 3:
