C204 - I/P Inline to Theft Deterrent Exciter Module Jumper
C204 - I/P Inline to Theft Deterrent Exciter Module Jumper

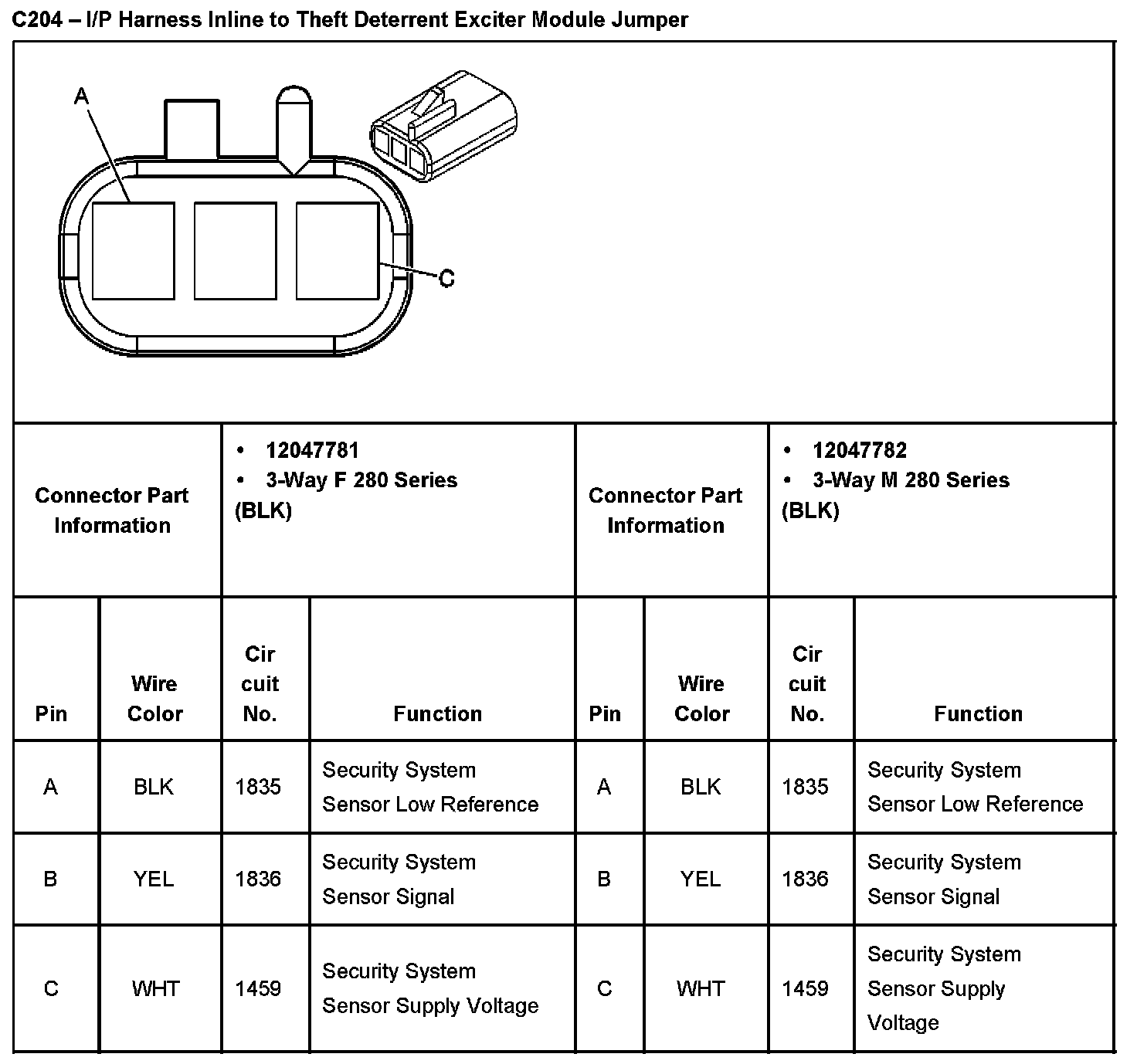

C204 - I/P Harness Inline To Theft Deterrent Exciter Module Jumper:
