Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Vehicle Communication Integration Module (Vcim) C2

Vehicle Communication Integration Module (Vcim) C2

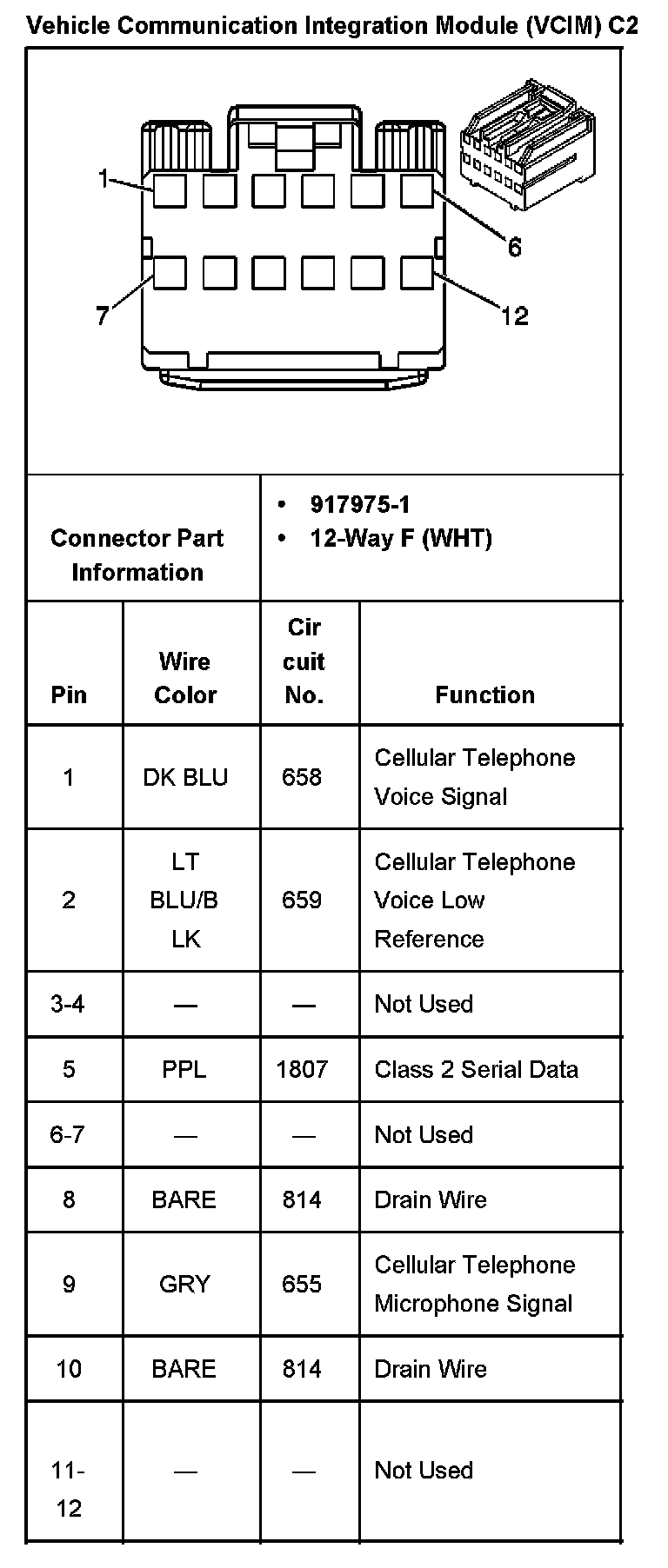

Vehicle Communication Integration Module (VCIM) C2:
