Rear Integration Module (RIM) C1

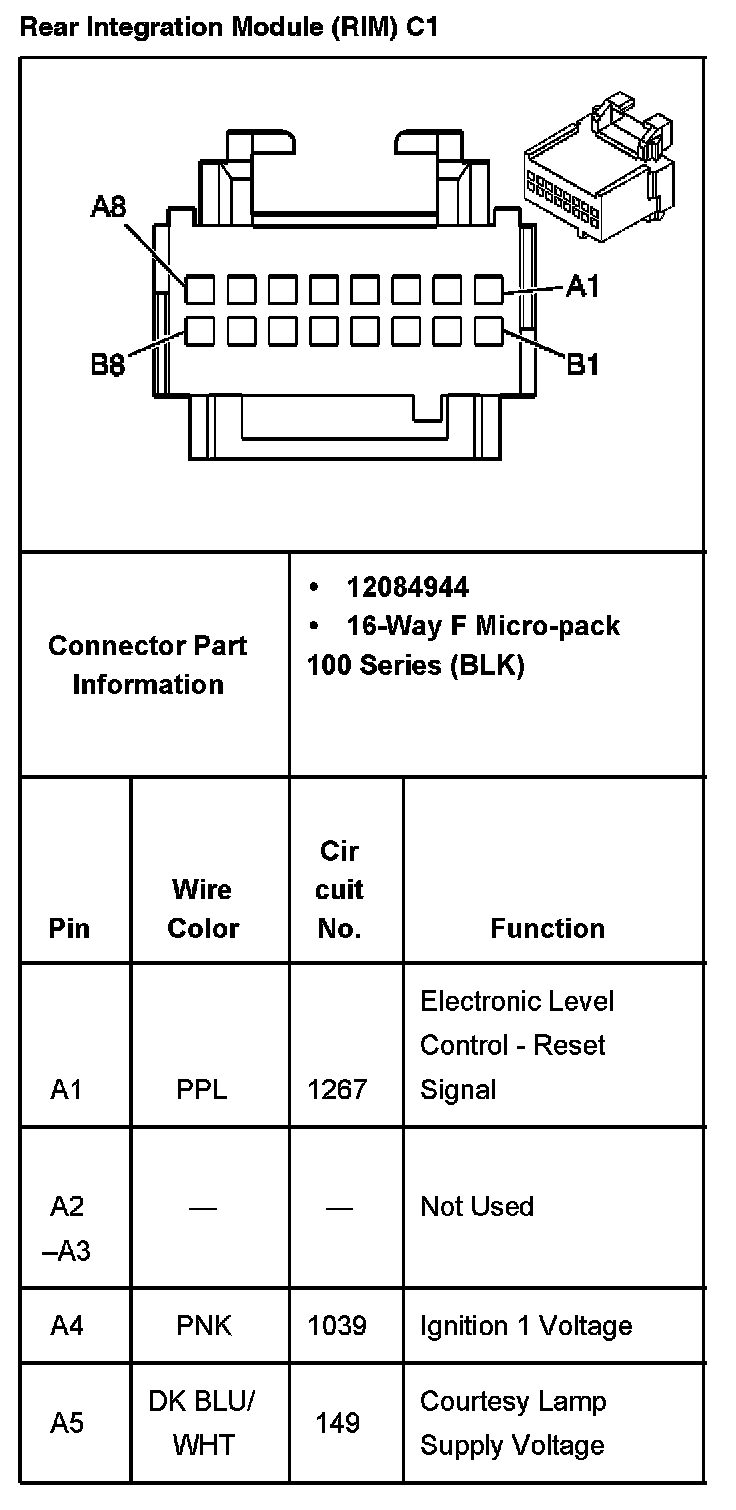

Rear Integration Module (RIM) C1 Part 1:

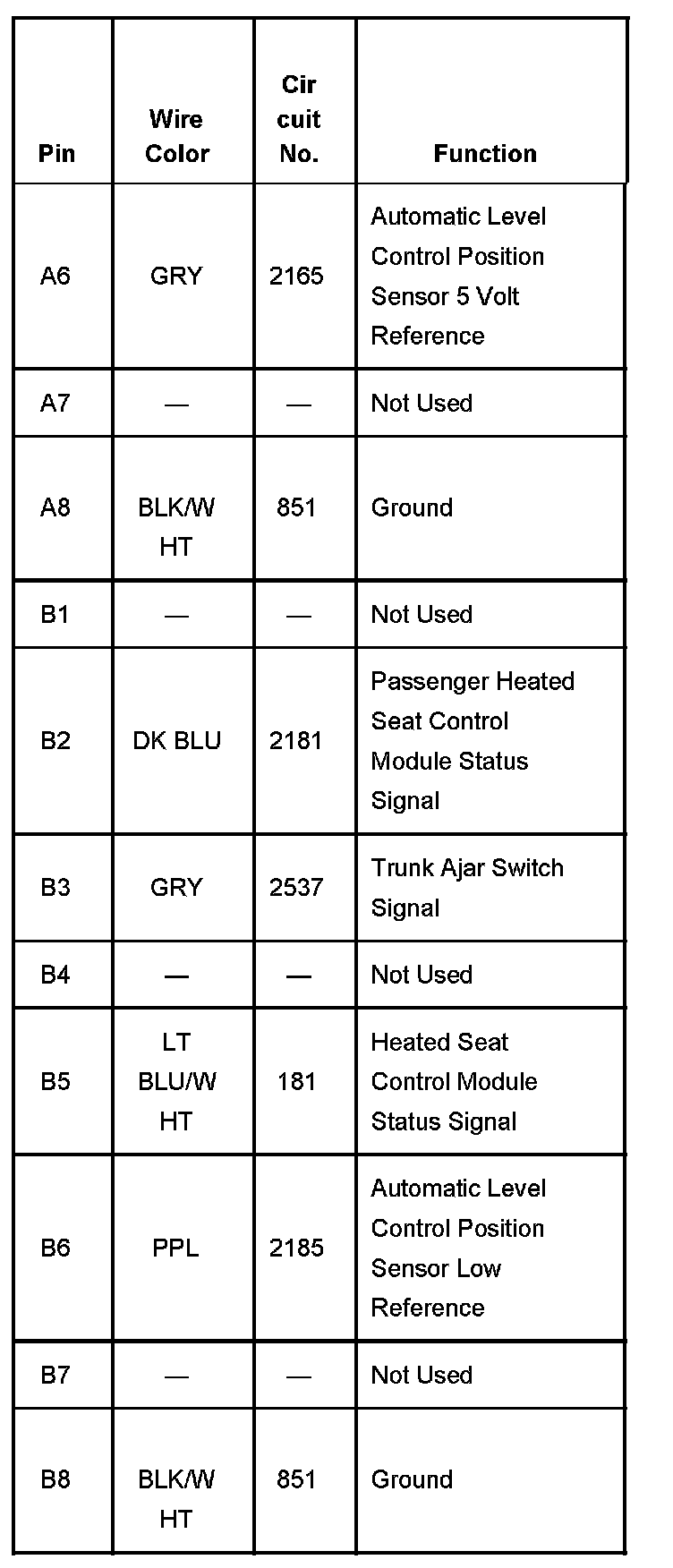

Rear Integration Module (RIM) C1 Part 2:
