Instrument Panel Integration Module (IPM) C2

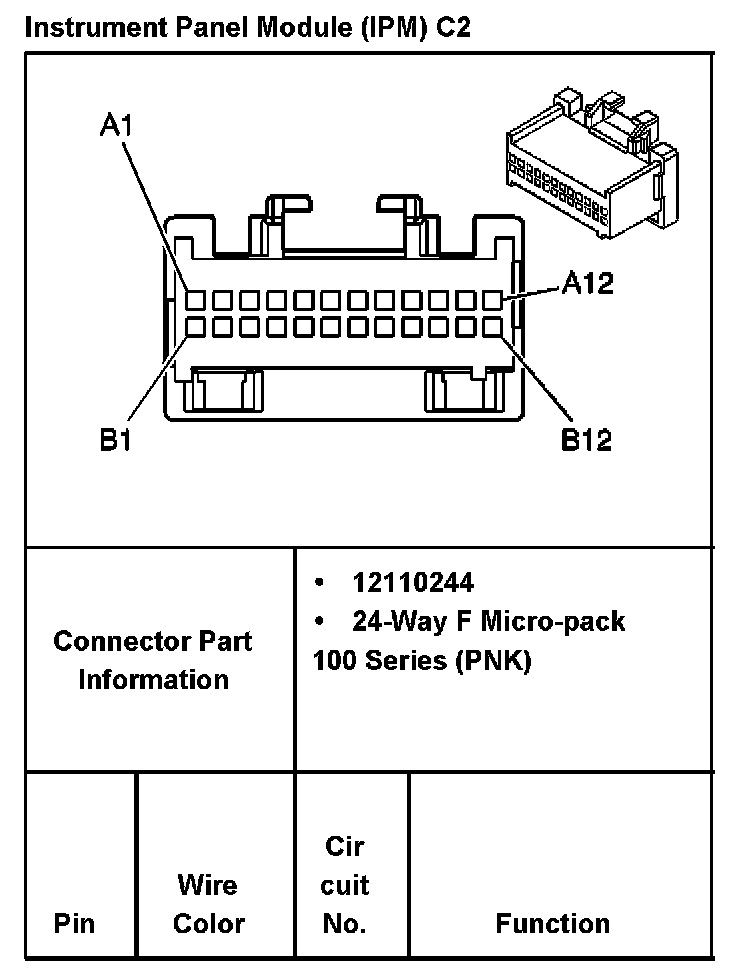

Instrument Panel Module (IPM) C2 Part 1:

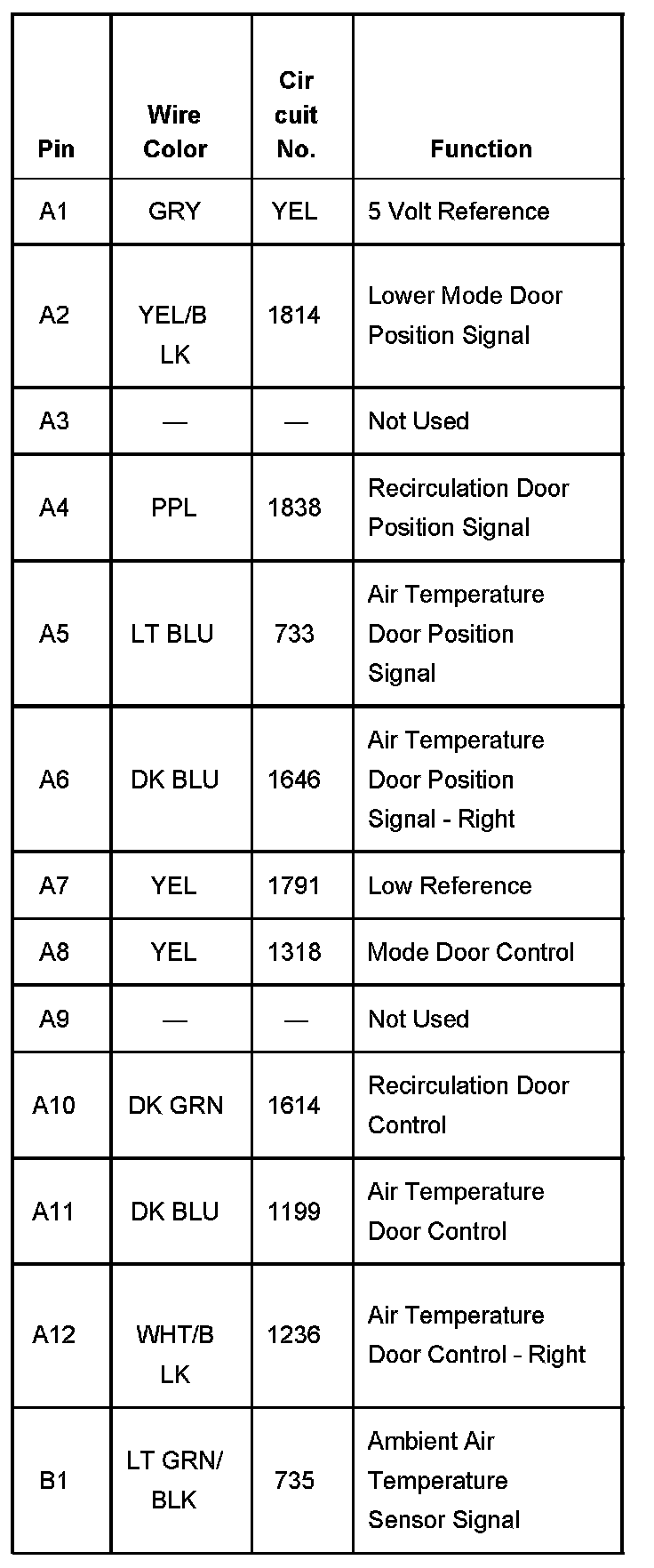

Instrument Panel Module (IPM) C2 Part 2:

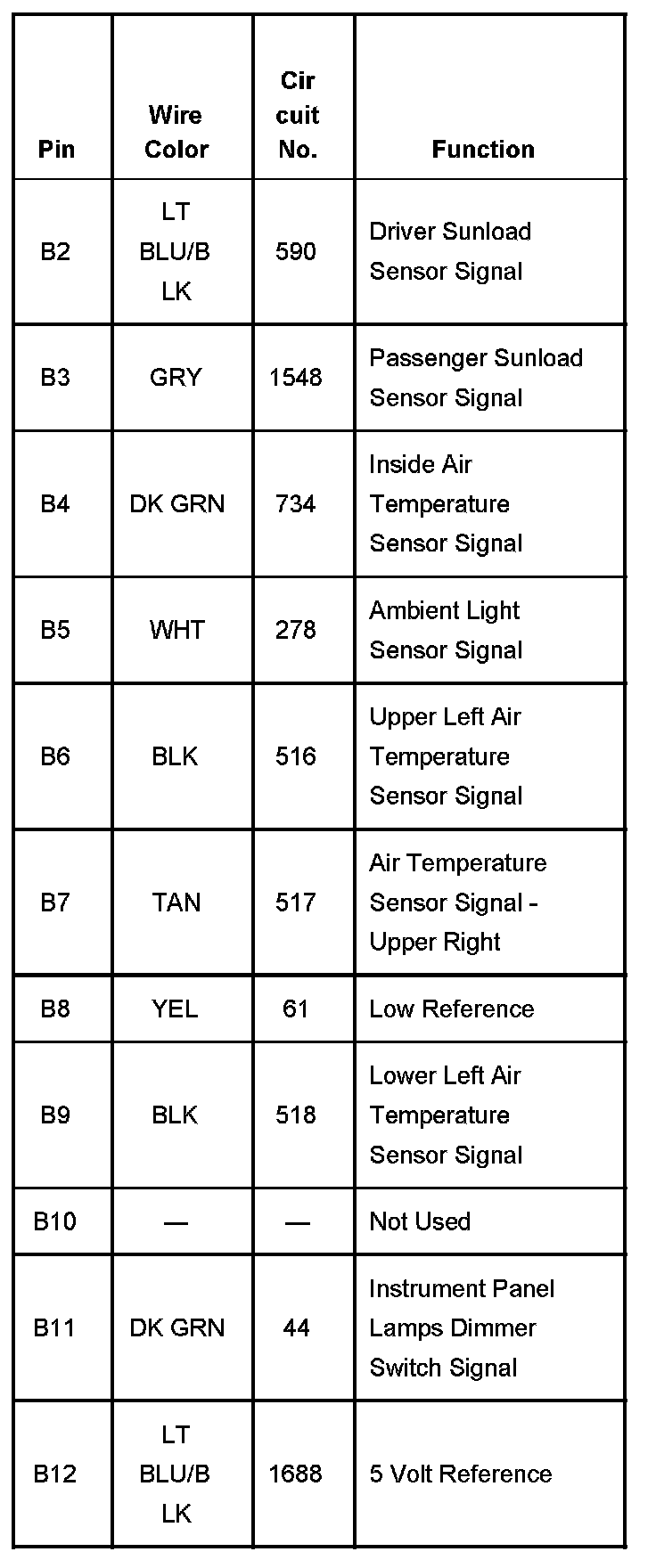

Instrument Panel Module (IPM) C2 Part 3:
