Instrument Panel Integration Module (IPM) C1

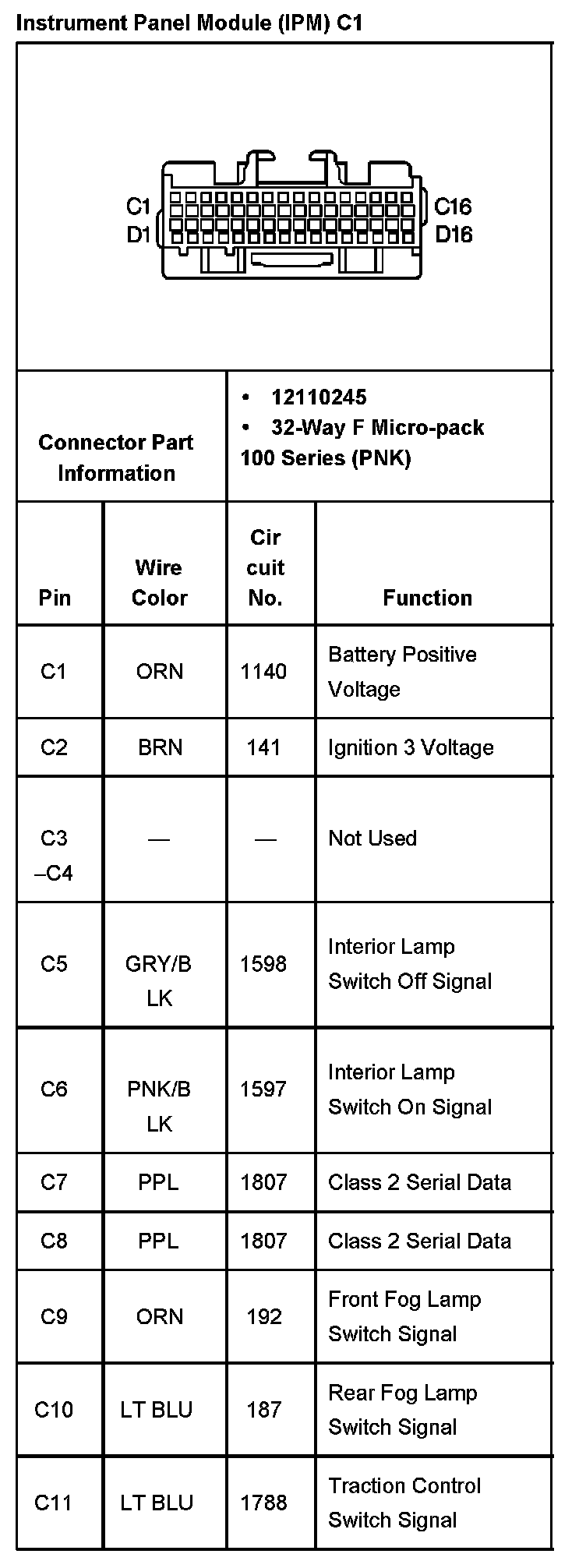

Instrument Panel Module (IPM) C1 Part 1:

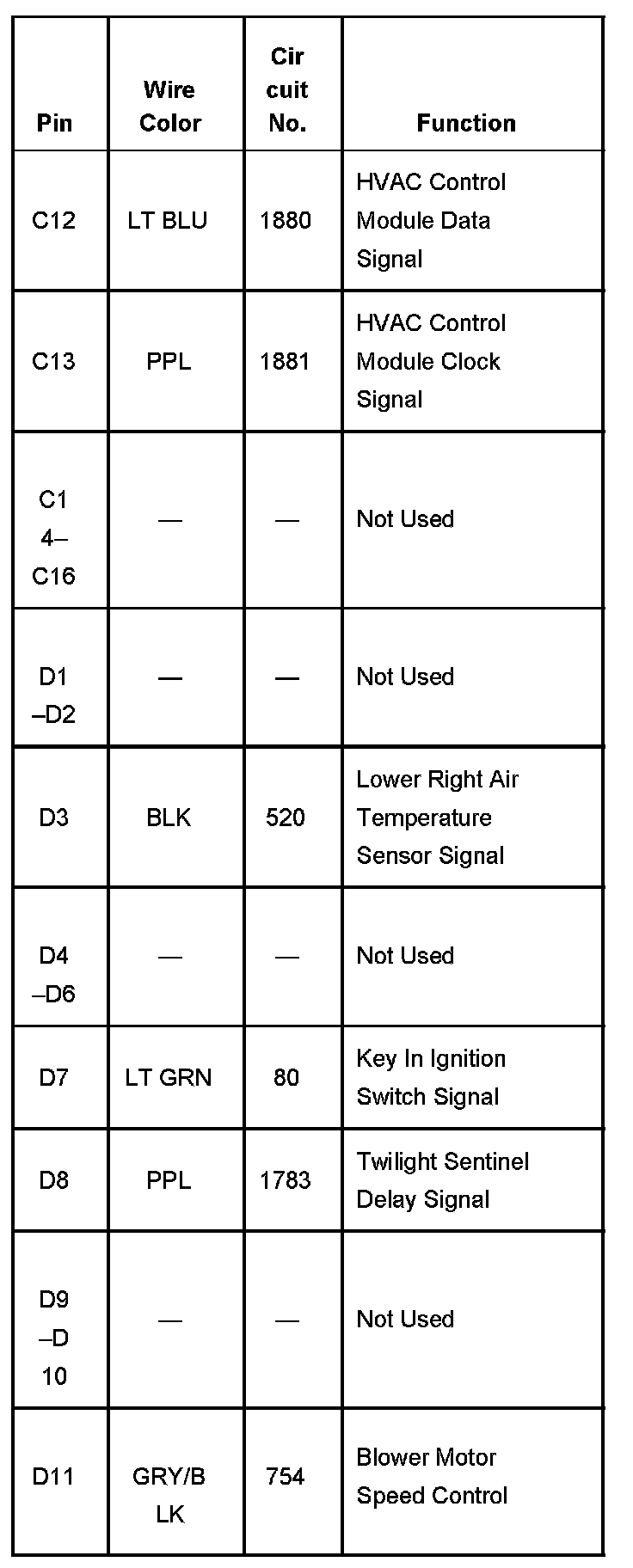

Instrument Panel Module (IPM) C1 Part 2:

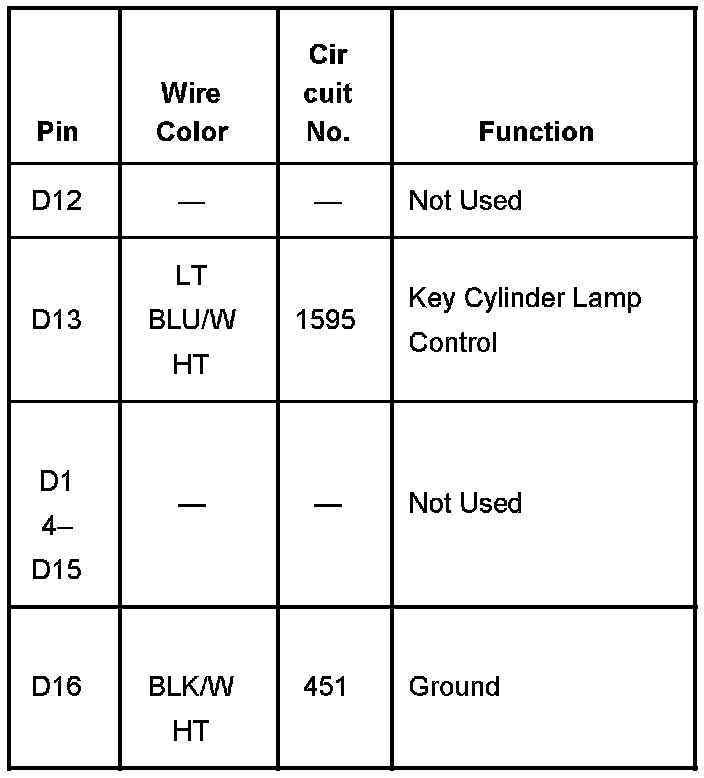

Instrument Panel Module (IPM) C1 Part 3:
