Cruise Control - Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS

IMPORTANT: Perform the following in order to avoid misdiagnosis:

- Inspect for proper operation of the brake lamps.
- Inspect throttle linkage for mechanical binding which could cause the system to malfunction.
- Inspect cruise control adjustment, should have minimum slack.
- Inspect for stored diagnostic trouble codes (DTCs) in the PCM.
- EMI on the speed sensor signal circuit may cause erratic cruise control operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
- When vehicle speed is more than 40 km/h (25 mph).
- When PARK, REVERSE, NEUTRAL, or 1st gear IS NOT indicated.
- When an over/undercharged battery condition DOES NOT exist.
- With normal engine RPM.
- Without high engine RPM (fuel cut-off). Refer to Powertrain Control Module (PCM) Description in Computers and Control Systems for additional information.

TEST

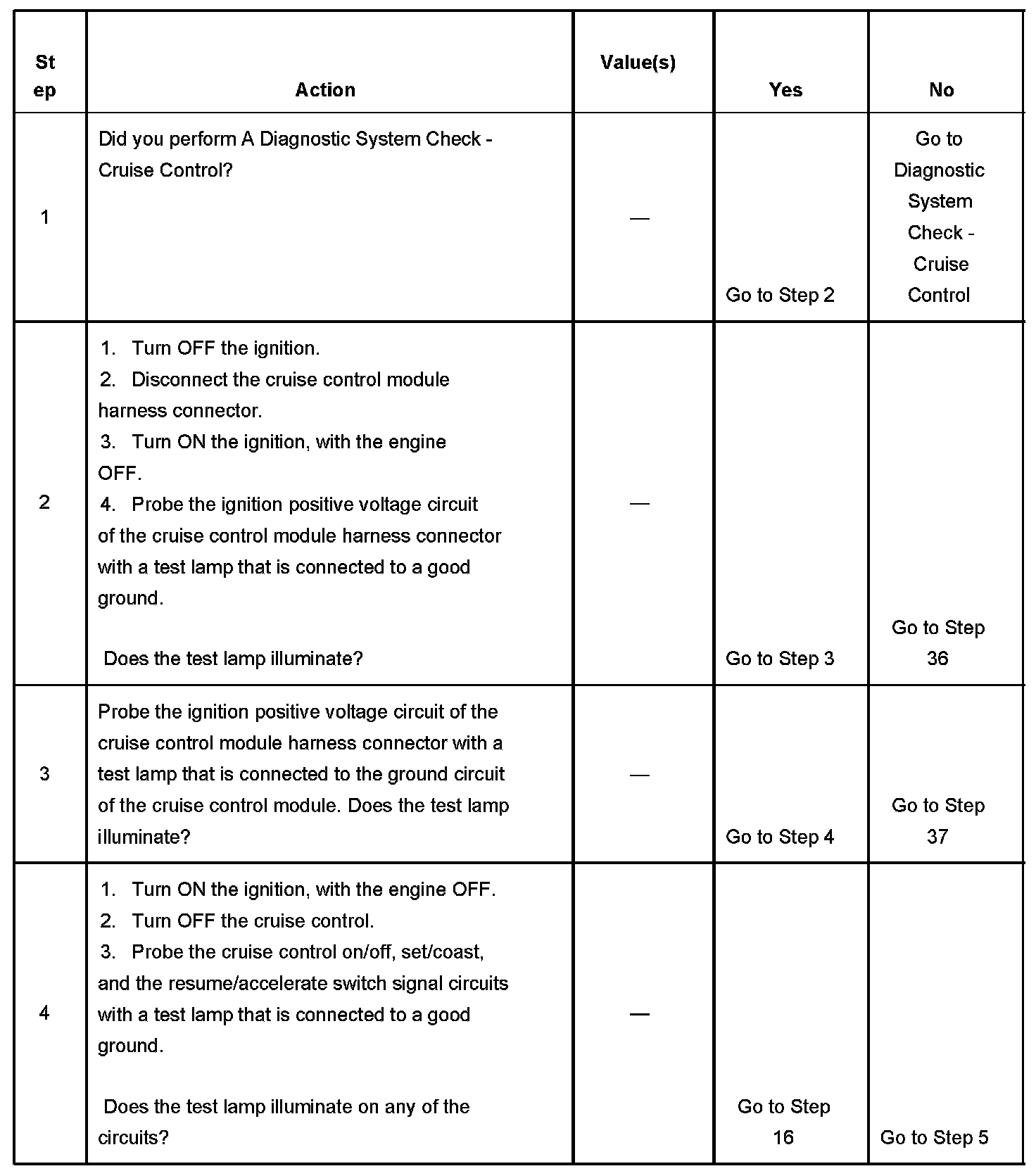

Steps 1-4:

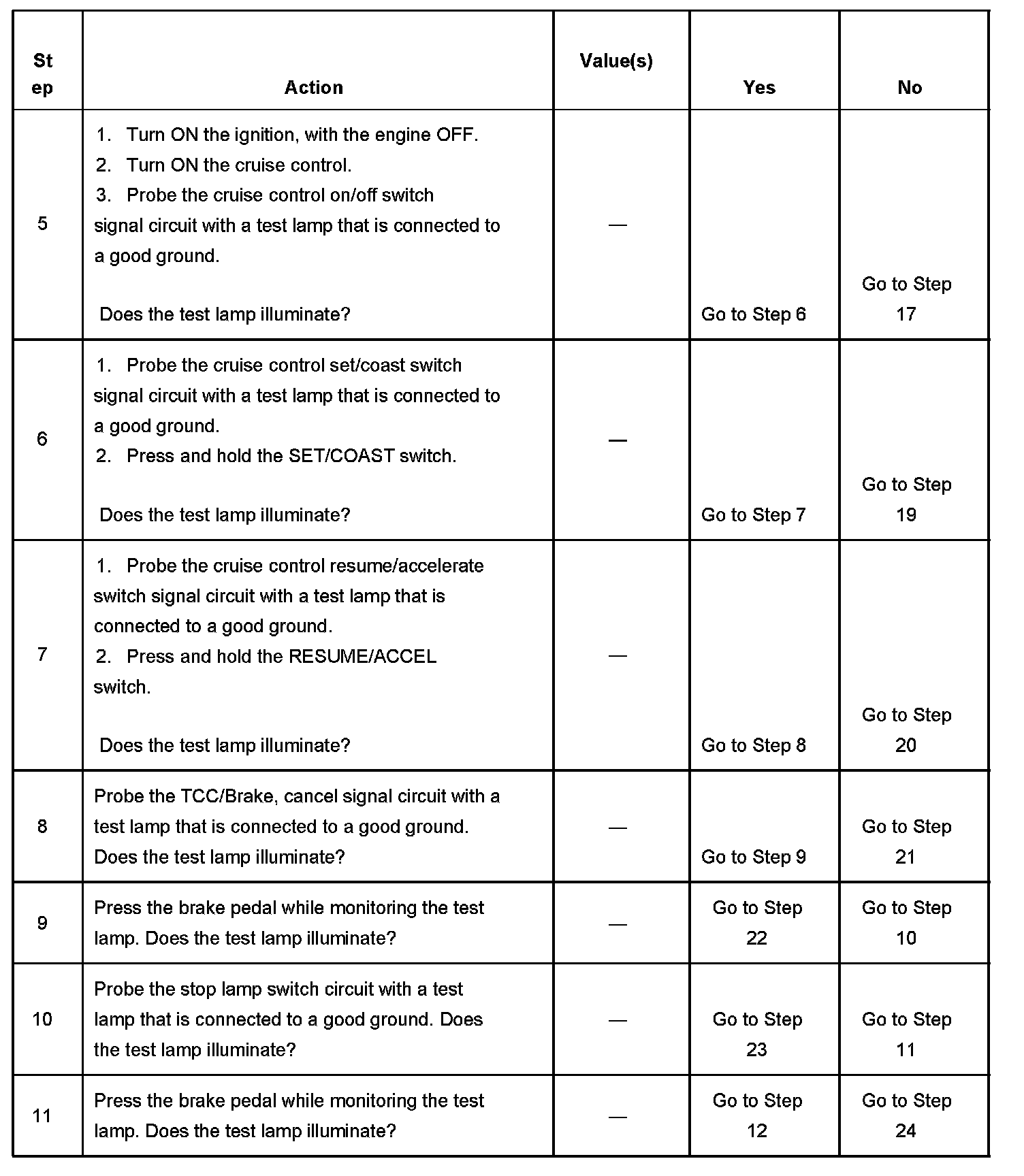

Steps 5-11:

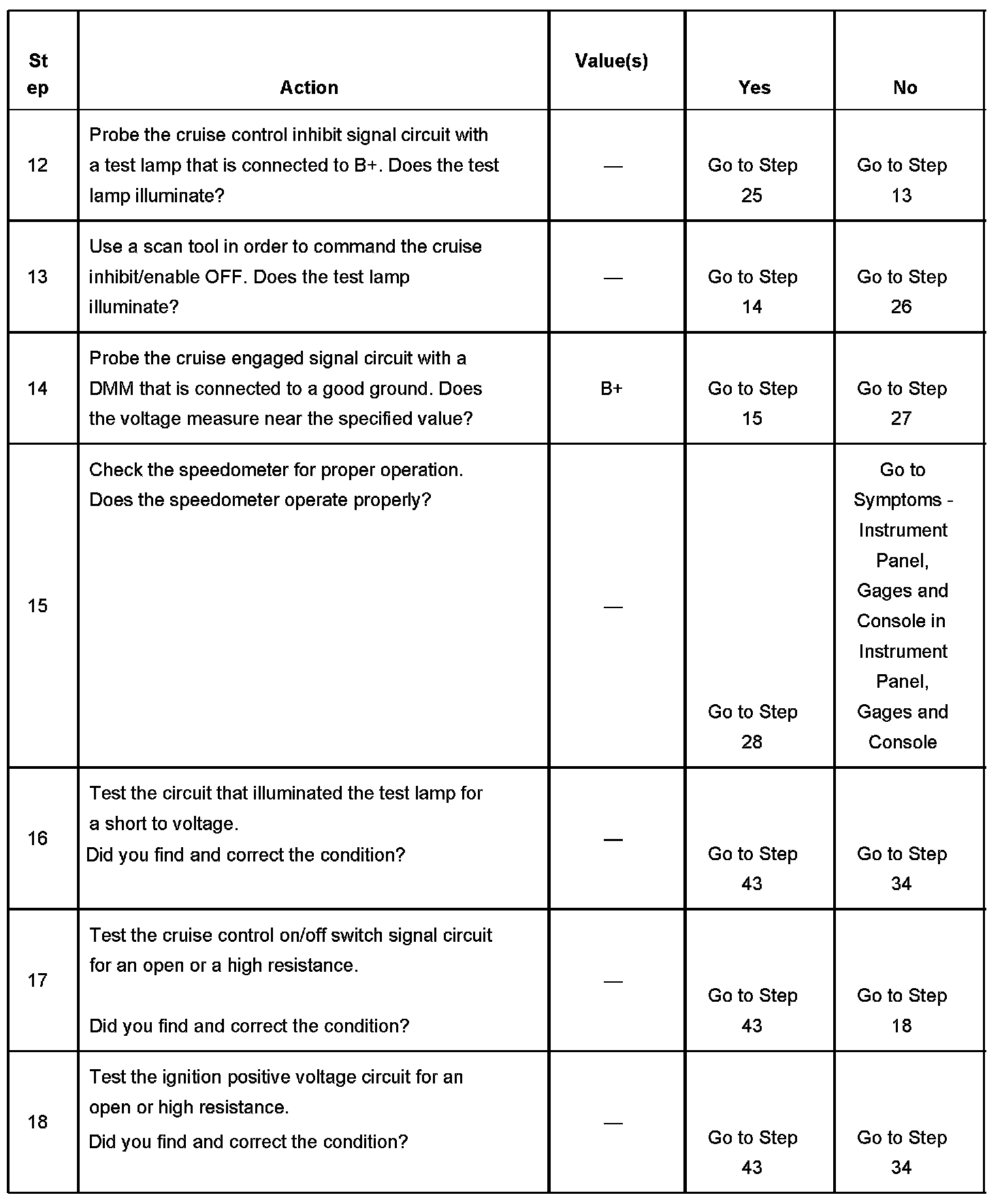

Steps 12-18:

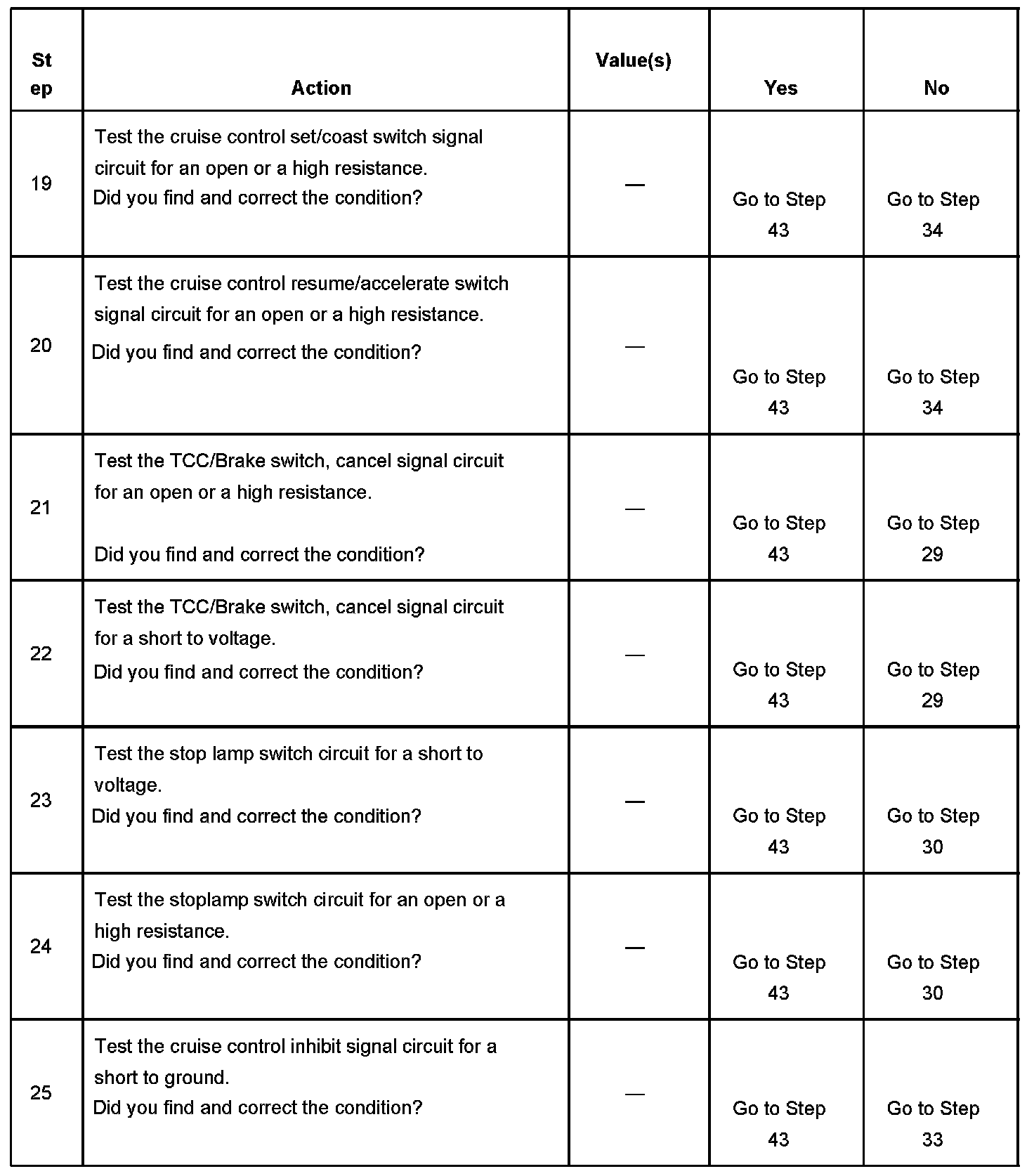

Steps 19-25:

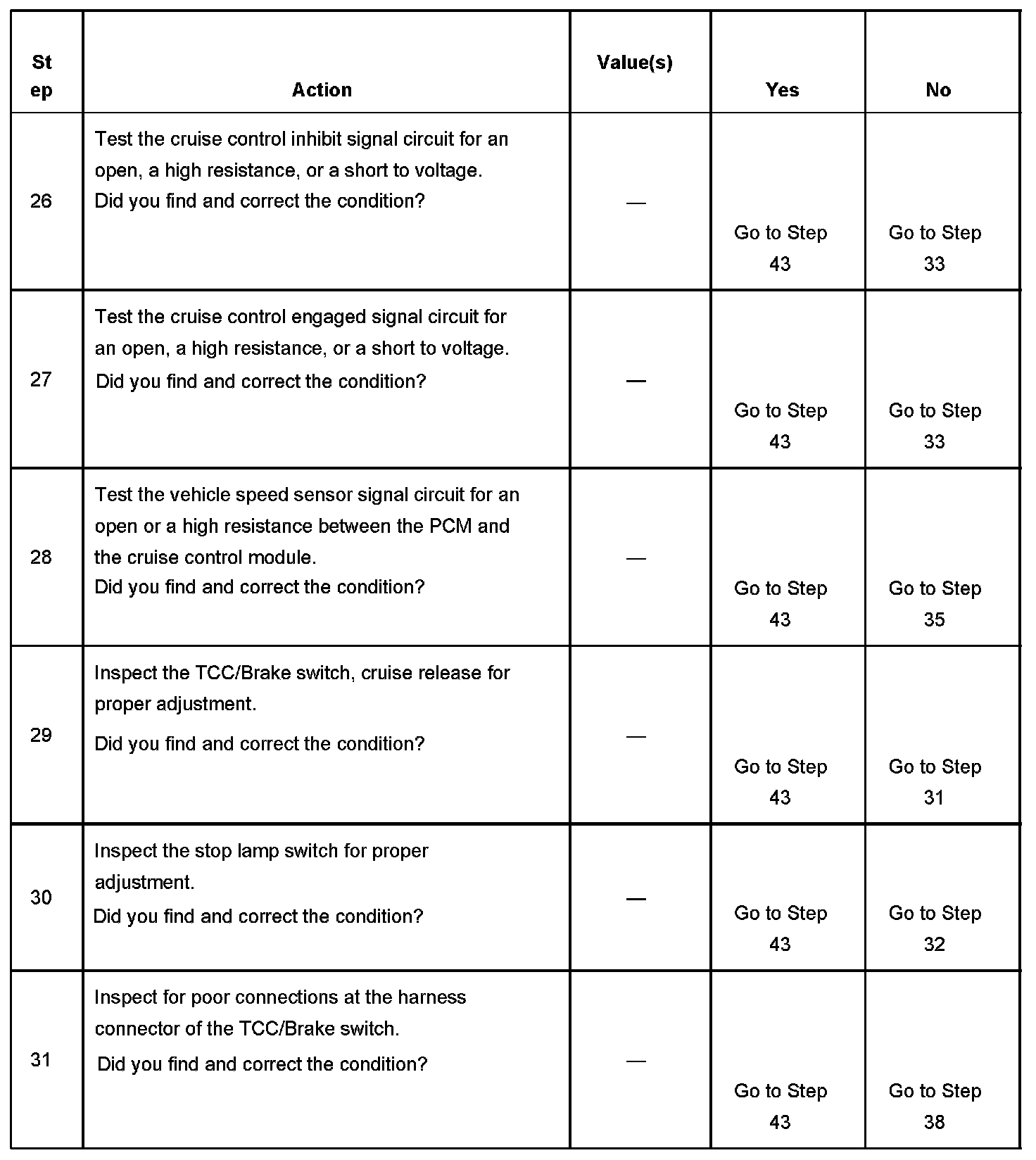

Steps 26-31:

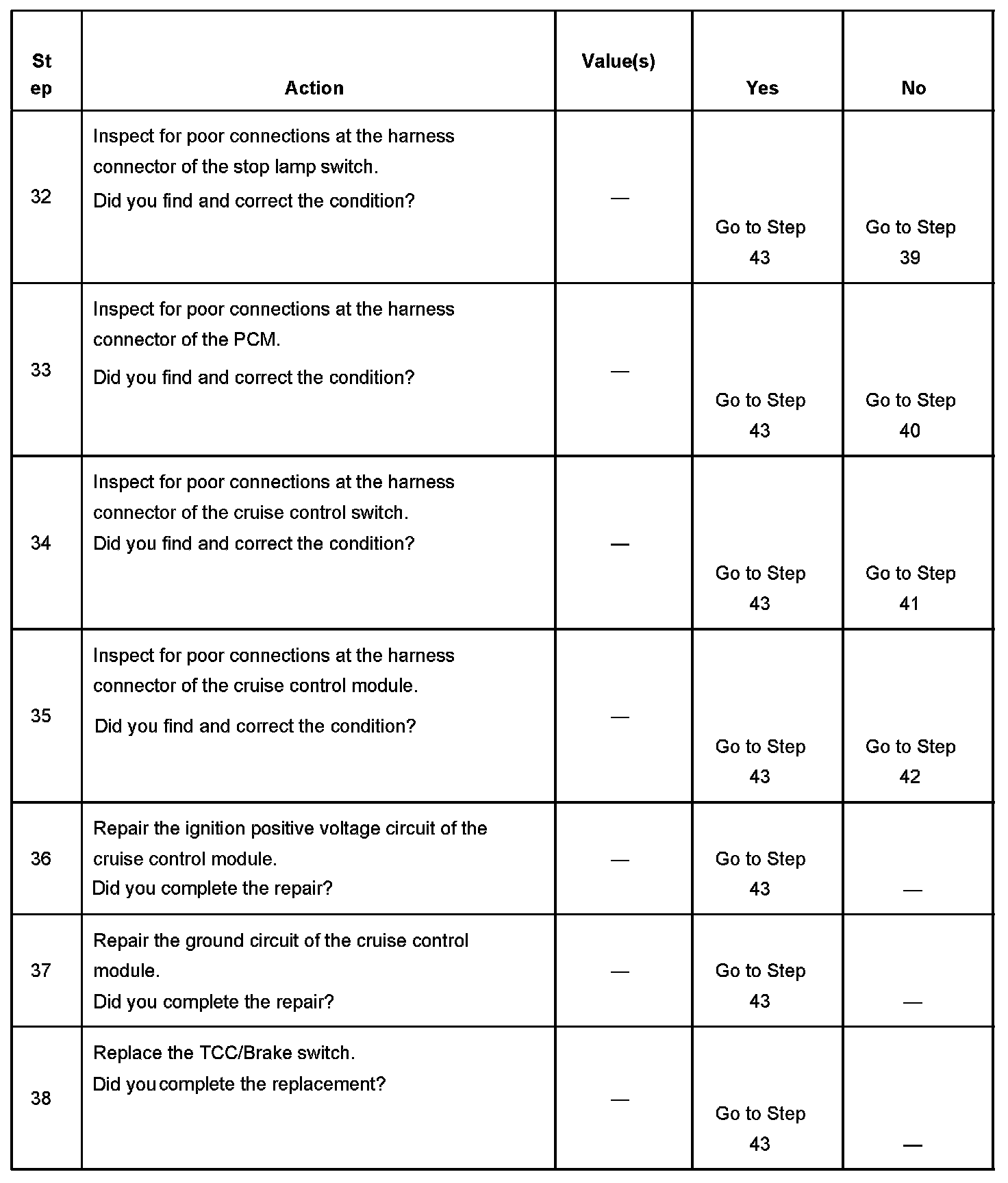

Steps 32-38:

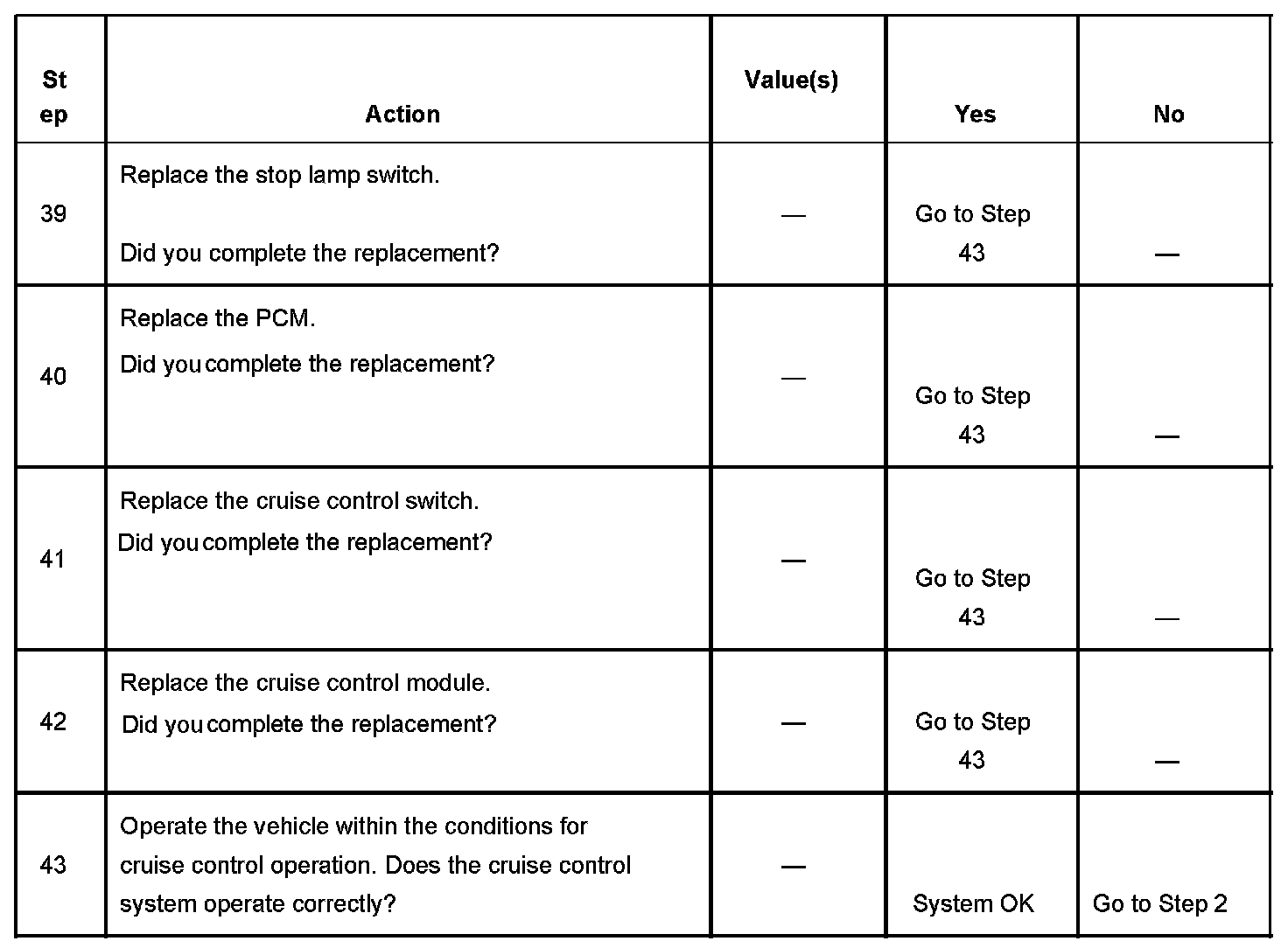

Steps 39-43:
