Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

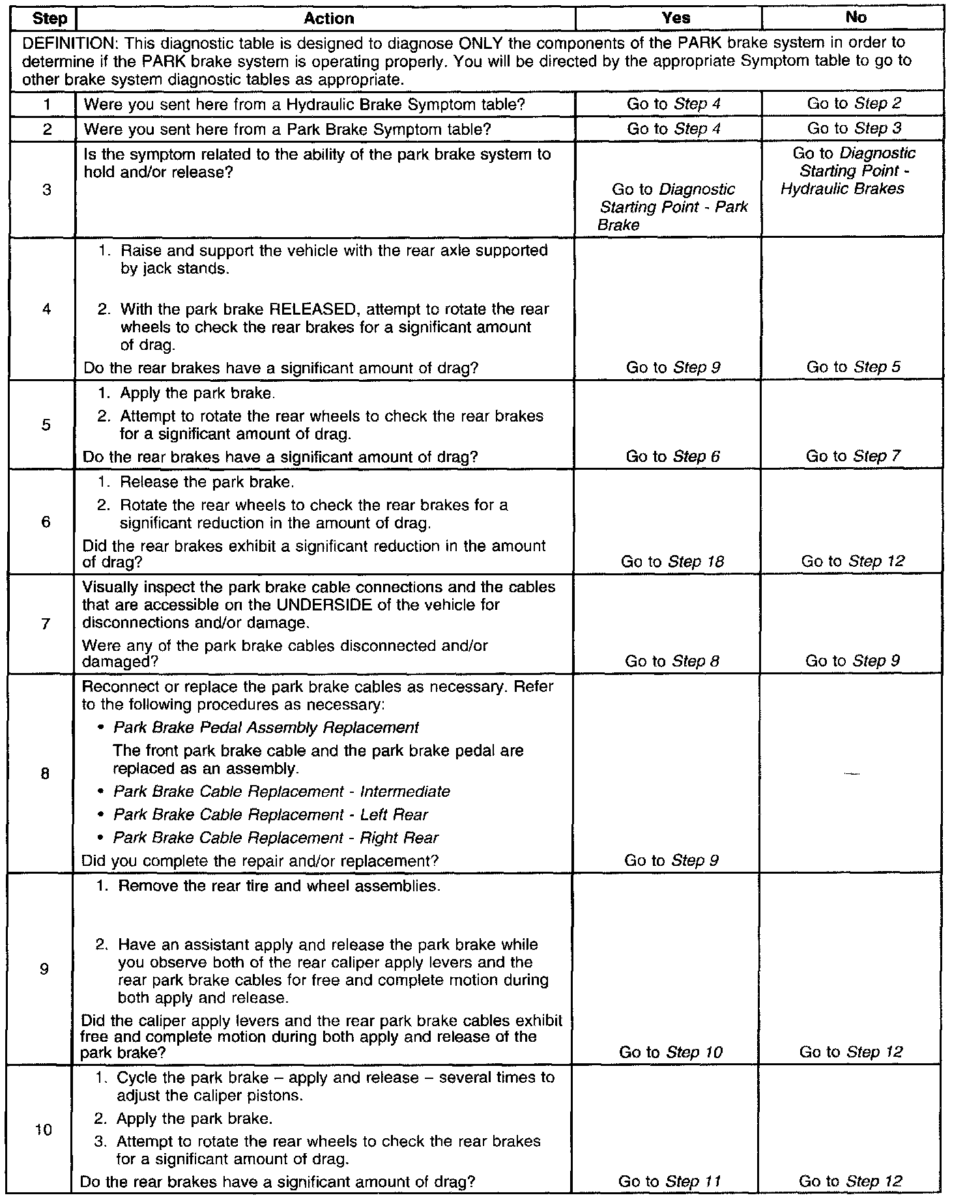

Steps 1-10:

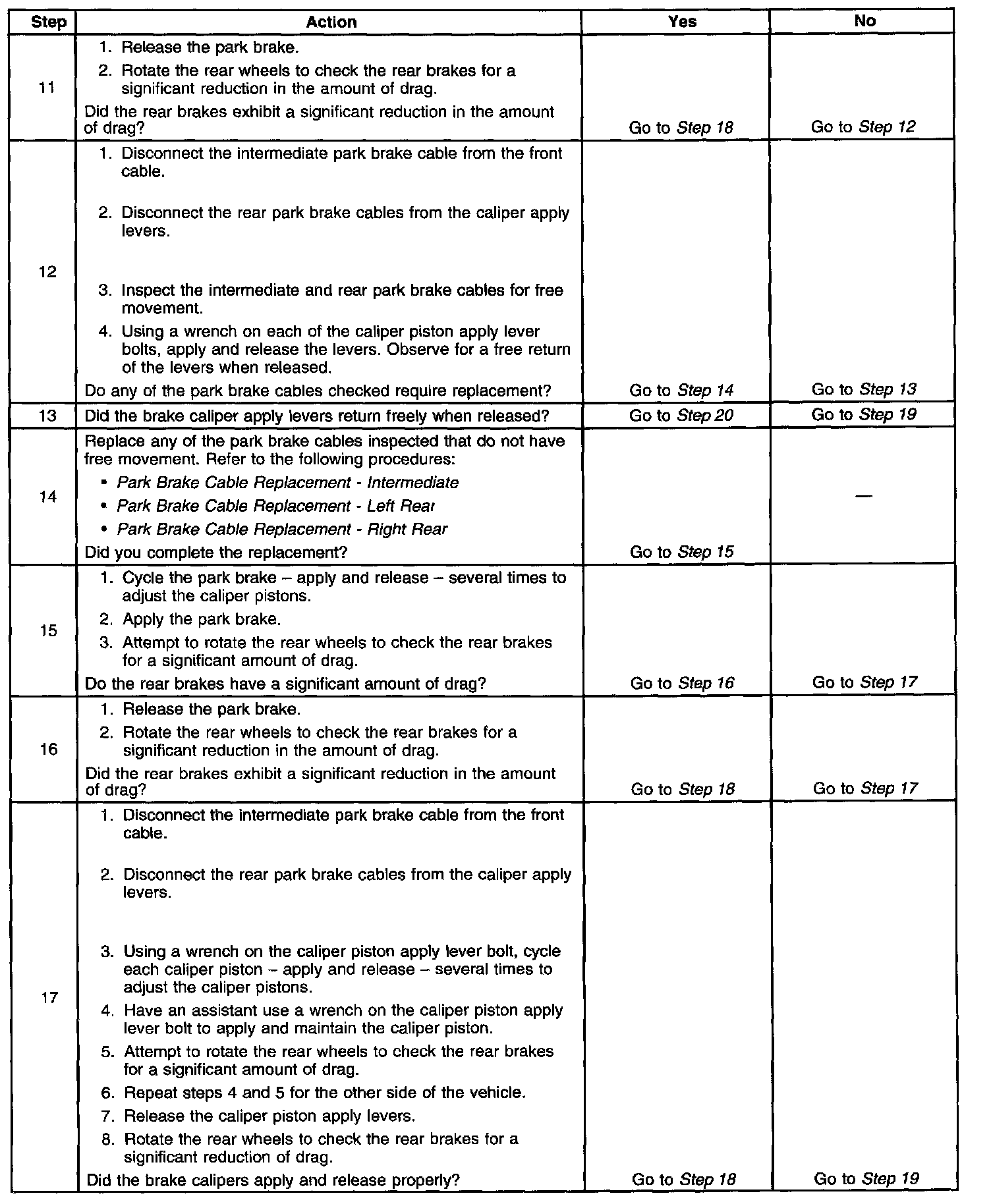

Steps 11-17:

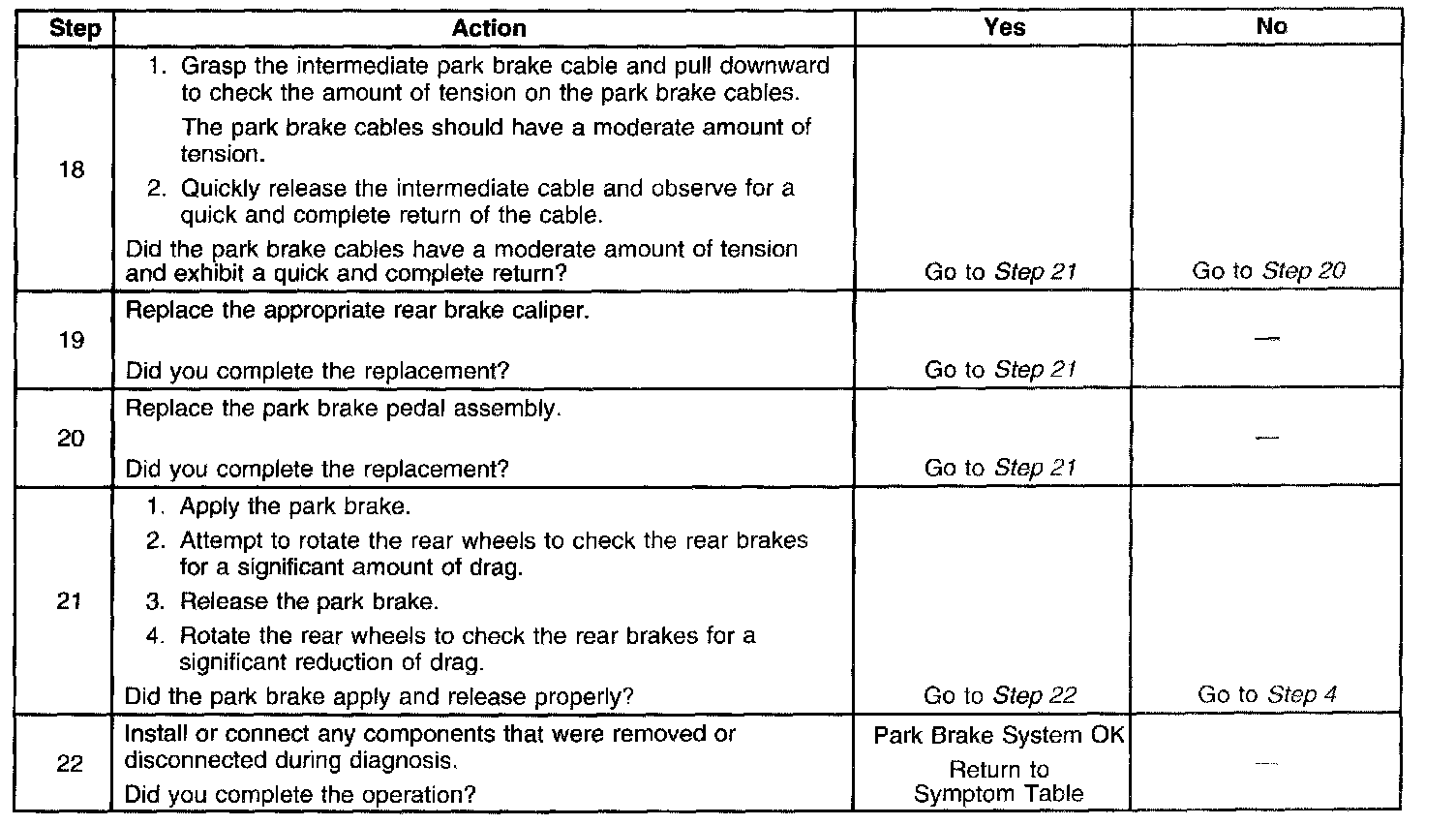

Steps 18-22:
