Park Brake Cable Replacement - Right Rear

Park Brake Cable Replacement Right Rear

^ Tools Require
- J 37043 Parking Brake Cable Release Tool

Caution: Refer to Brake Dust Caution in Service Precautions.

Removal Procedure





1. Raise and support the vehicle.
2. Remove the rear tire and wheel assembly.
3. Remove the front park brake cable from the cable guides.

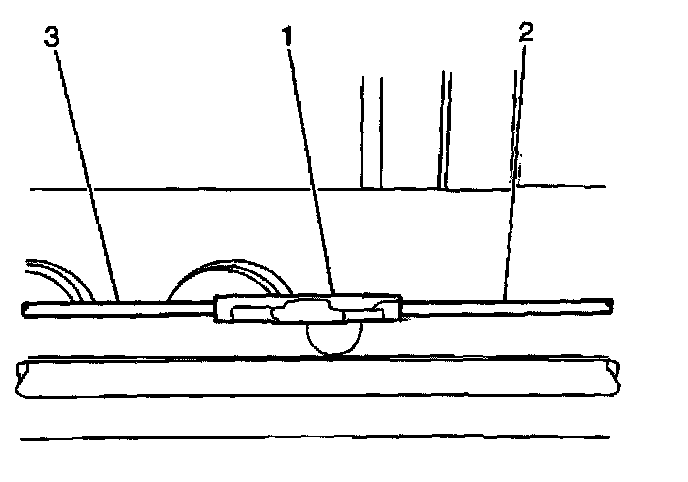

4. Pull down on the intermediate park brake cable (2) near the park brake cable connector (1).
5. Disconnect the intermediate park brake cable (2) from the park brake connector (1).

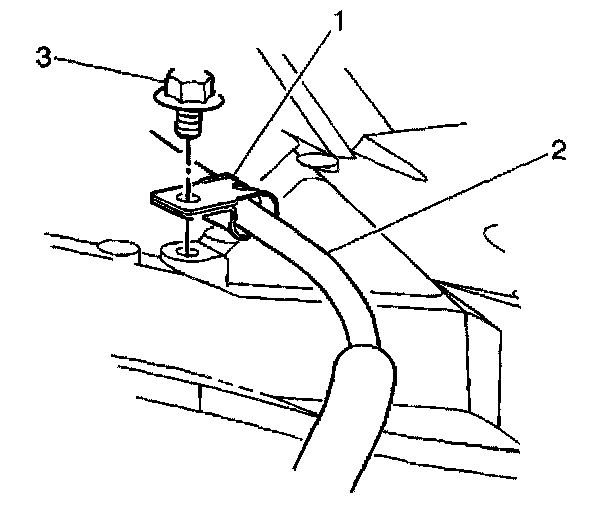

6. Remove the right park brake cable guide bolt (3).

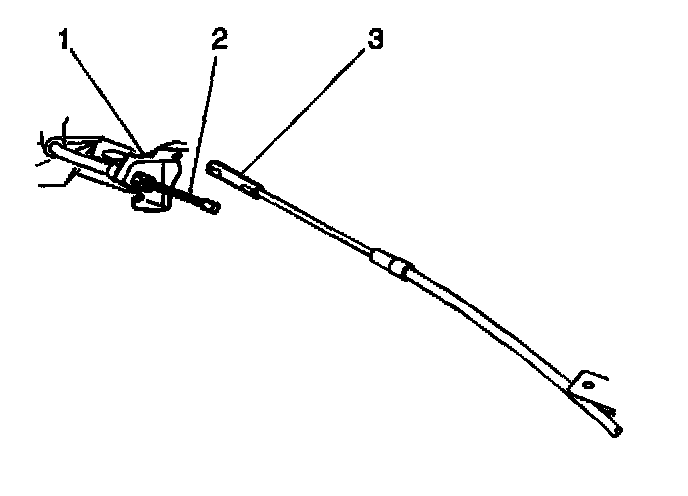

7. Disconnect the right rear park brake cable (2) from the intermediate park brake cable connector (3).
8. Use the J 37043 to depress the right brake cable locking tabs (2).
9. Remove the right park brake cable (2) from the park brake cable support bracket (1).

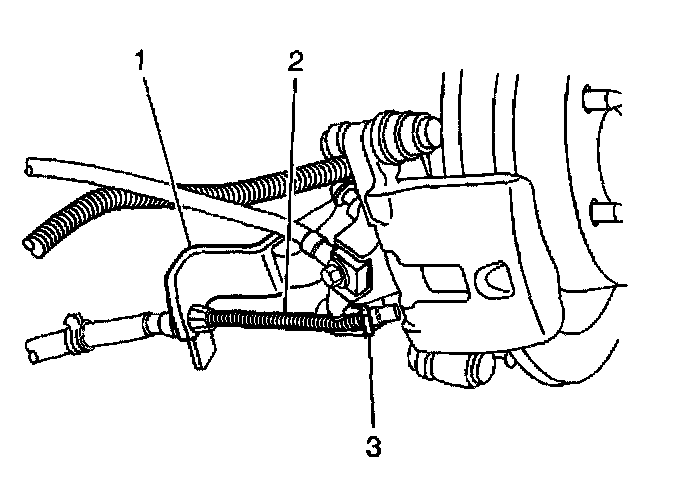

10. Use the J 37043 to depress the right park brake cable locking tabs.
11. Remove the right park brake cable (2) from the caliper park brake cable bracket (1).
12. Disconnect the right park brake cable (2) from the park brake actuator lever (3).
13. Remove the right park brake cable (2) from the vehicle.

Installation Procedure





1. Install the right park brake cable (2) to the park brake cable support bracket (1).
2. Press the right park brake cable into the park brake cable support bracket (1). Ensure that the locking tabs are properly seated.





3. Connect the right park brake cable (2) to the park brake actuator lever (3).
4. Install the right park brake cable (2) to the caliper park brake cable bracket (1). Ensure that the locking tabs are properly seated.

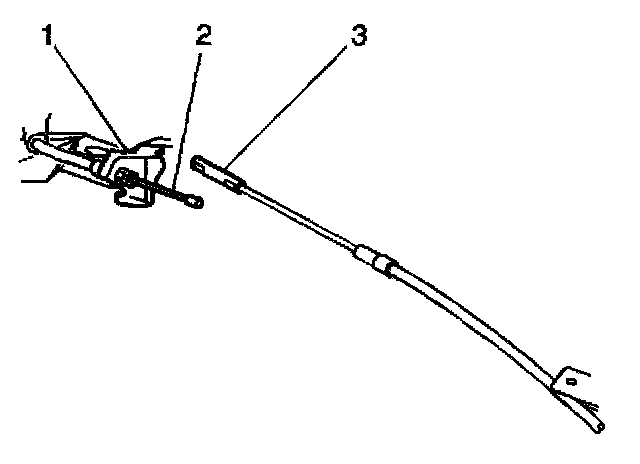

5. Connect the intermediate park brake cable connector (3) to the right park brake cable (2).

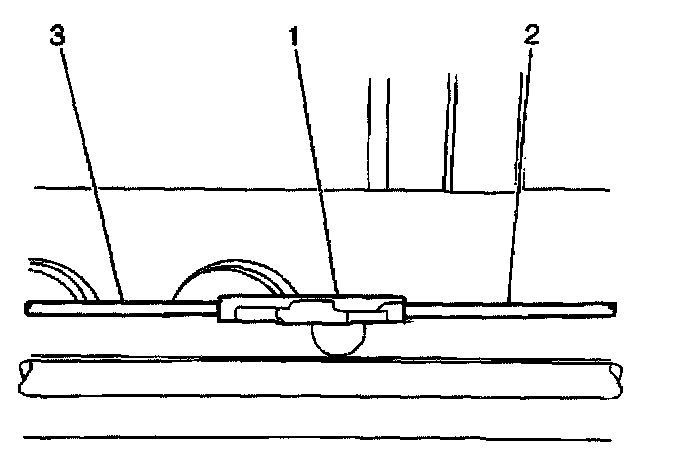

6. Pull down on the intermediate park brake cable (2) near the park brake cable connector (1).
7. Connect the intermediate park brake cable (2) to the park brake connector (1).





8. Install the right park brake cable (2) into the park brake cable guide (1).

Notice: Refer to Fastener Notice in Service Precautions.

9. Install the right park brake cable guide bolt (3).
^ Tighten the right park brake cable guide bolt to 24 Nm (18 ft. lbs.).
10. Install the front park brake cable to the cable guides.
11. Install the right tire and wheel assembly.
12. Lower the vehicle.
13. To ensure that the park brake cable retainers are seated, cycle the park brake pedal 1 to 2 times.
