Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Testing and Inspection >> Component Tests and General Diagnostics >> Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

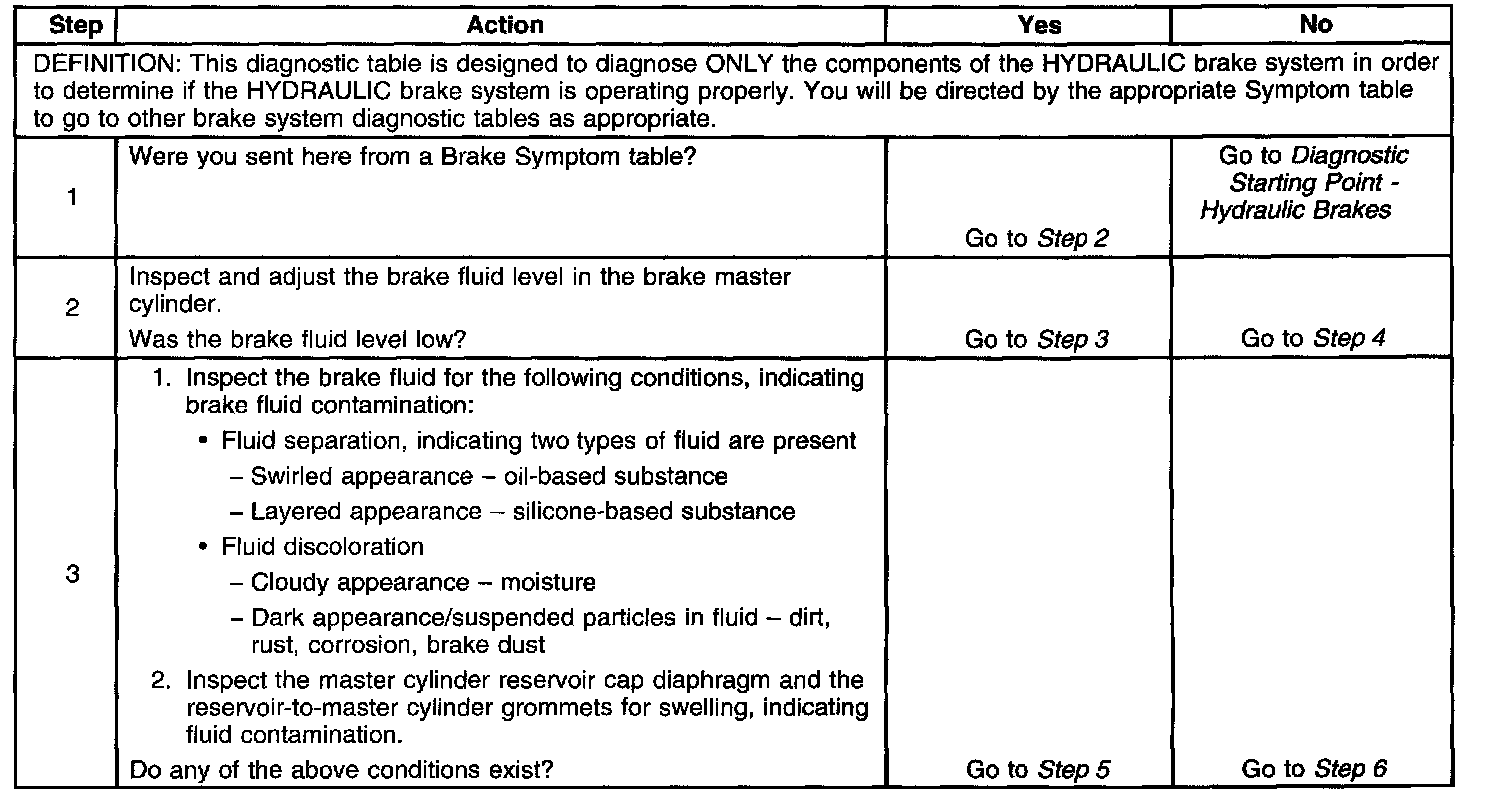

Steps 1-3:

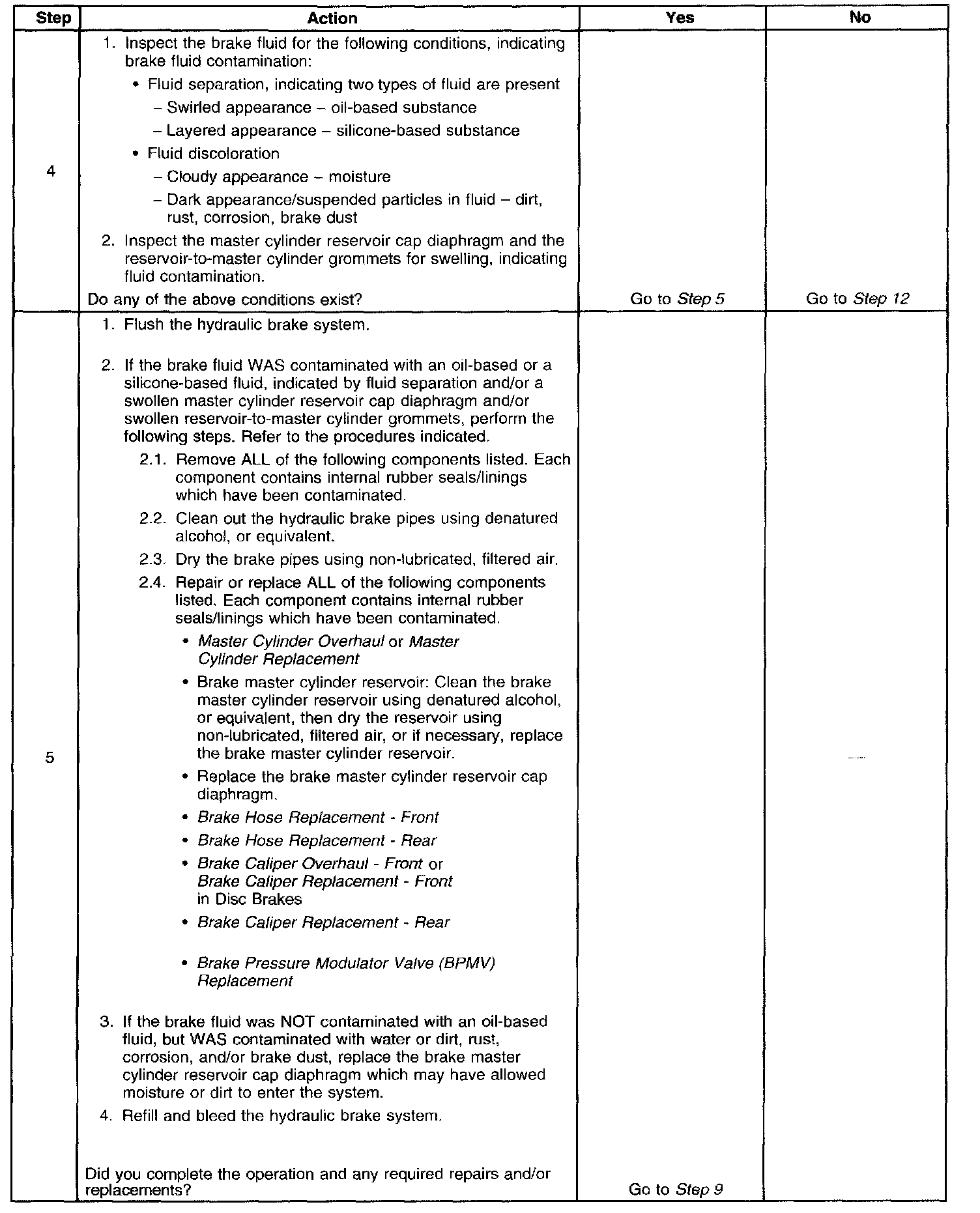

Steps 4-5:

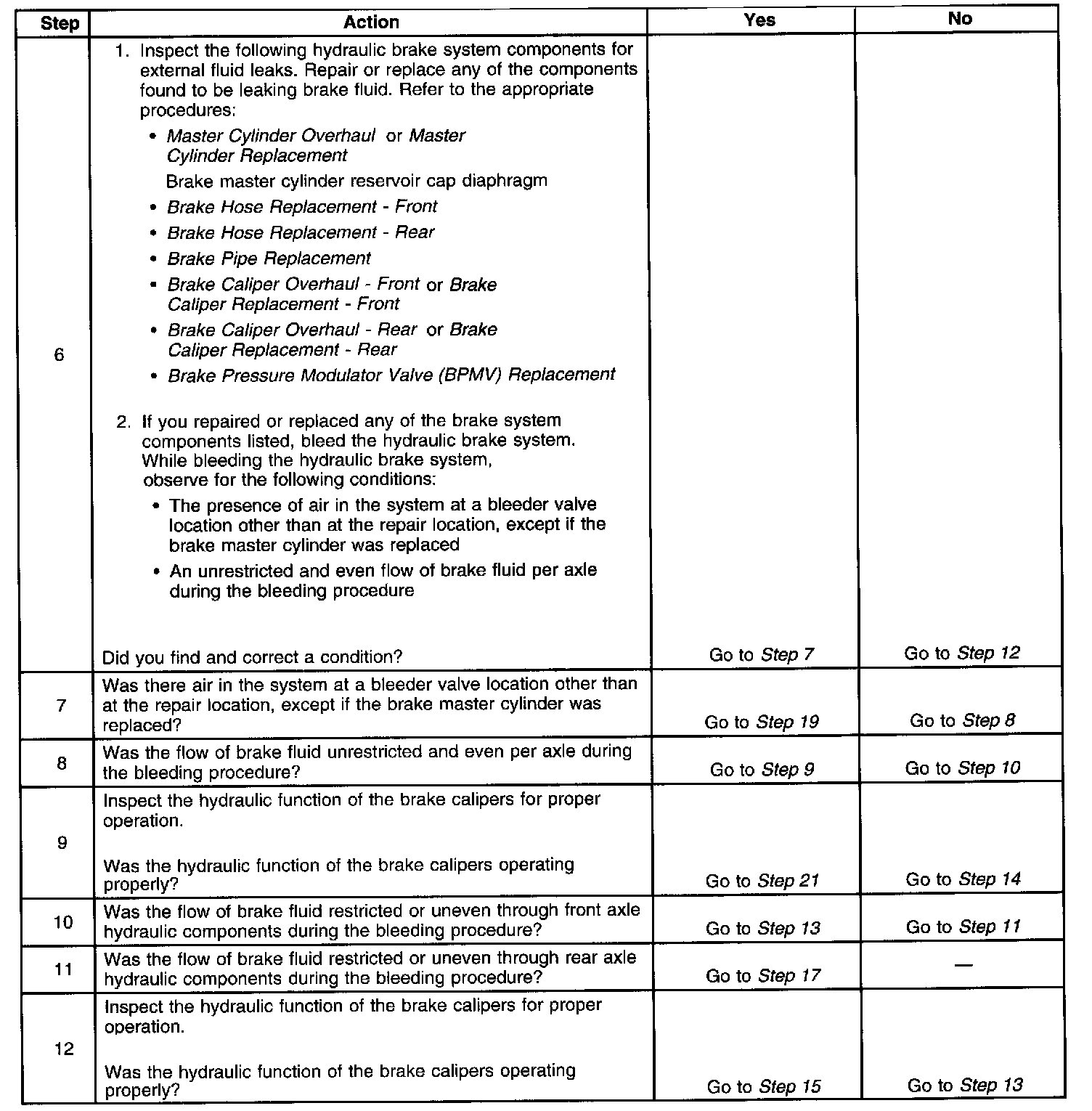

Steps 6-12:



Steps 13-19:

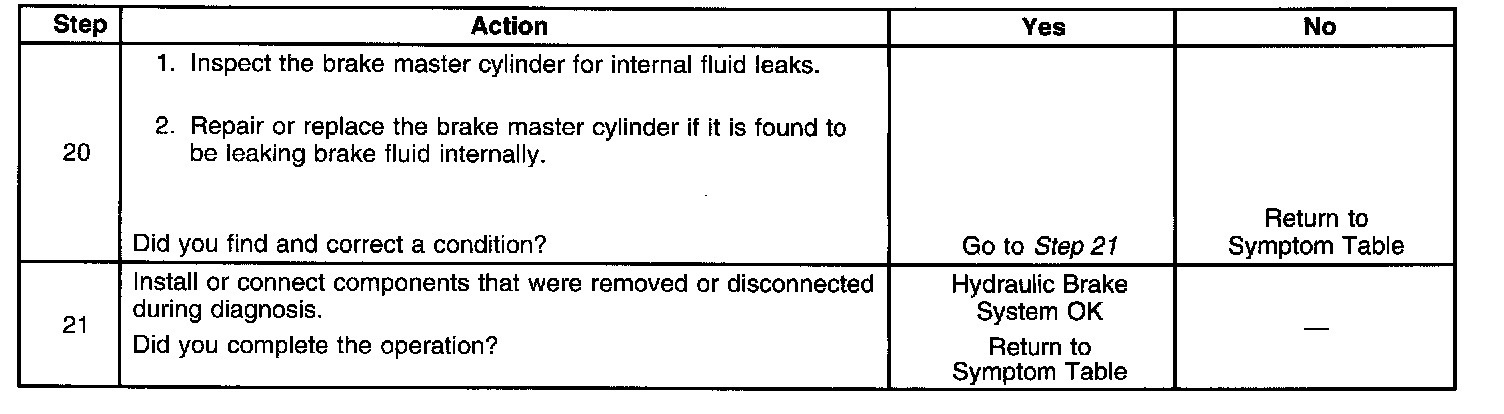

Steps 20-21:
