Brake Pressure Modulator Valve (BPMV) Bracket Replacement
Brake Pressure Modulator Valve (BPMV) Bracket ReplacementRemoval Procedure
1. Raise the vehicle.
2. Remove the left front tire and wheel assembly.
3. Remove the left front fascia extension.
4. Remove the front air deflector.

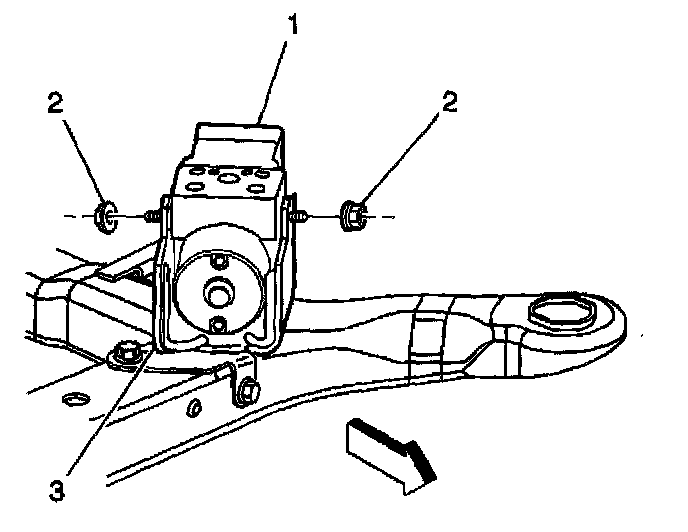

5. Remove the 2 brake pressure modulator valve (BPMV) bracket nuts (2).

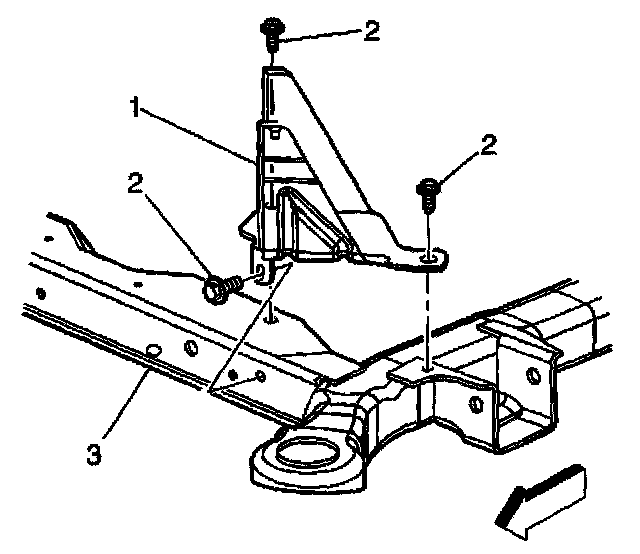

6. Remove the 3 BPMV bracket to frame bolts (2).
7. Remove the BPMV bracket (1) from the frame (3).
Installation Procedure
1. Install the brake pressure modulator valve (BPMV) bracket (1) to the frame (3).
Notice: Refer to Fastener Notice in Service Precautions.

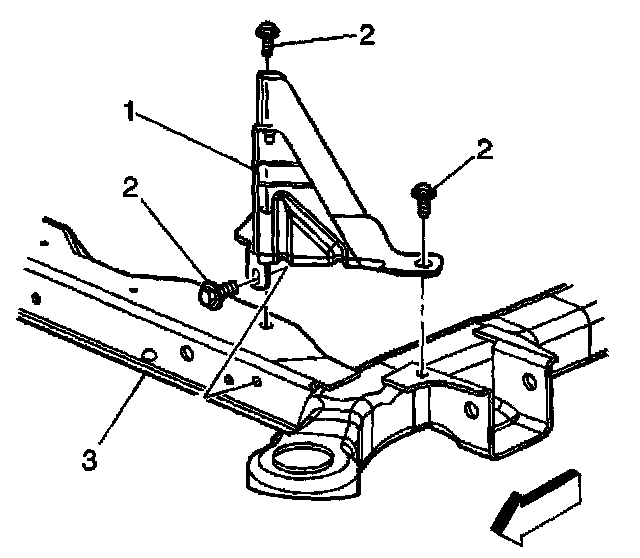

2. Install the 3 BPMV bracket to frame bolts (2).
^ Tighten the 3 bolts to 9 Nm (80 inch lbs.).
3. Install the electronic brake control module (EBCM)/BPMV assembly (1) to the BPMV bracket (3).
4. Install the 2 BPMV bracket nuts (2).
^ Tighten the 2 nuts to 10 Nm (89 inch lbs.).
5. Install the left front fascia extension.
6. Install the front air deflector.
7. Install the left front tire and wheel assembly.
8. Lower the vehicle.
