Scan Tool Data List

Scan Tool Data List

Dash Integration Module (DIM)

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

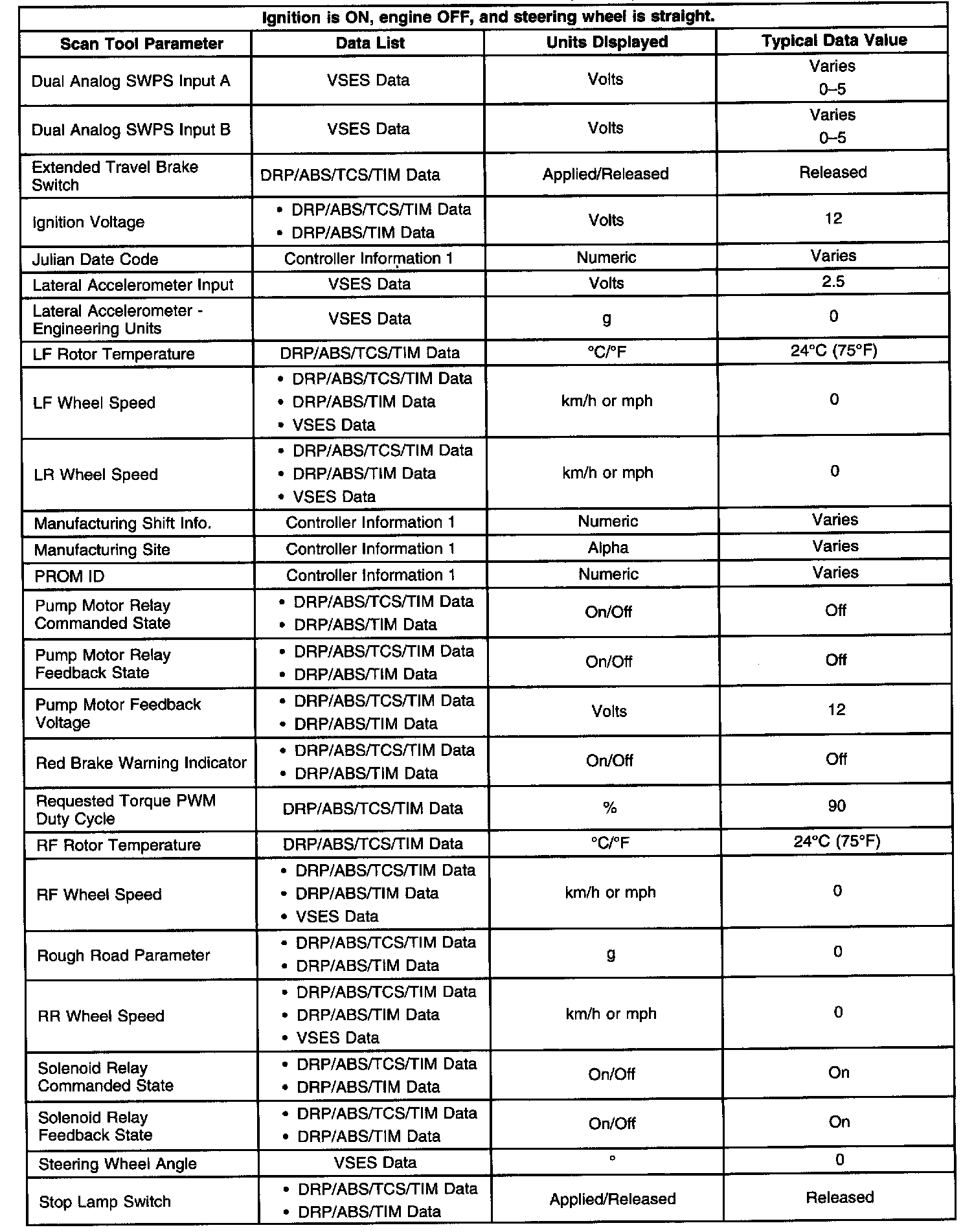

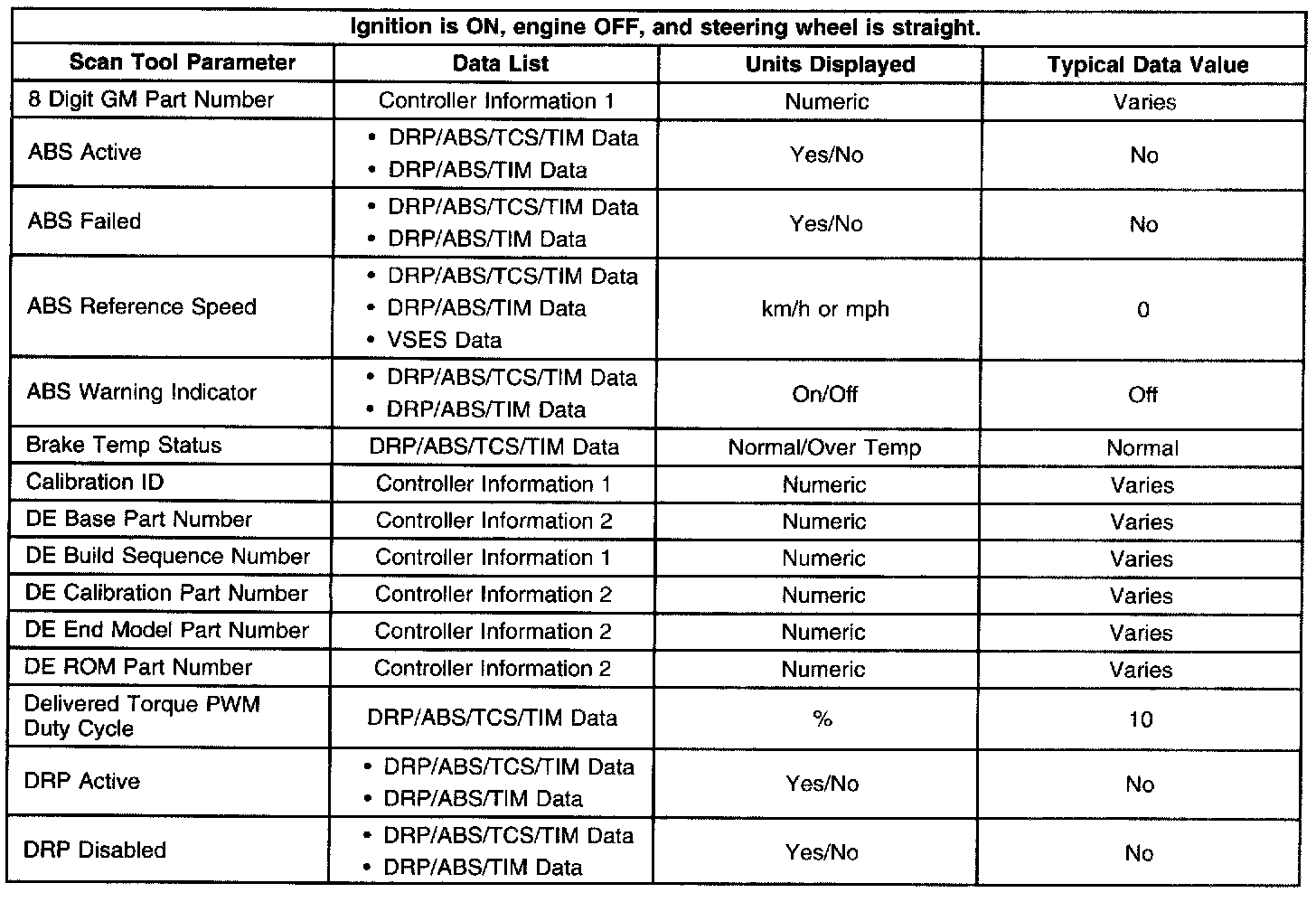

Electronic Brake Control Module (EBCM)

Instrument Panel Module (IPM)

Powertrain Control Module (PCM) (w/LX5)

Powertrain Control Module (PCM) (w/1-47)
