Sunroof / Moonroof Switch: Service and Repair

SUNROOF SWITCH REPLACEMENT

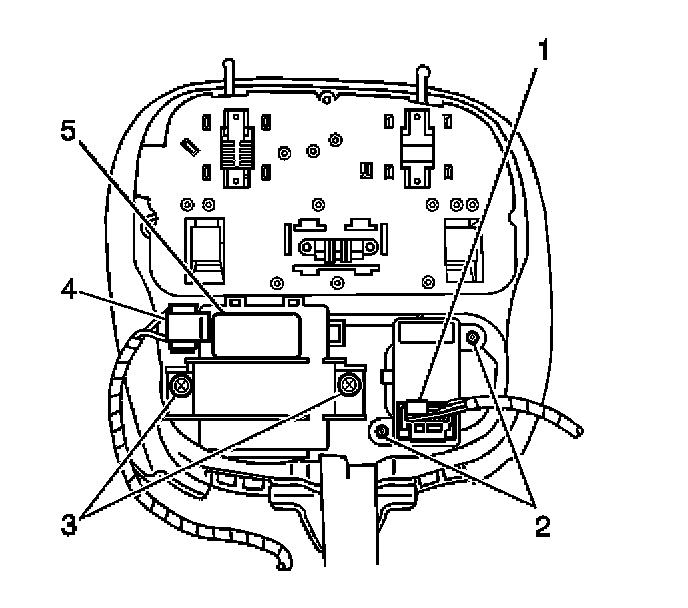

REMOVAL PROCEDURE




1. Remove the overhead console.
2. Disconnect the electrical connector (1) from the power sunroof switch.
3. Remove the screws (2) securing the power sunroof switch to the overhead console.
4. Remove the power sunroof switch from the overhead console.

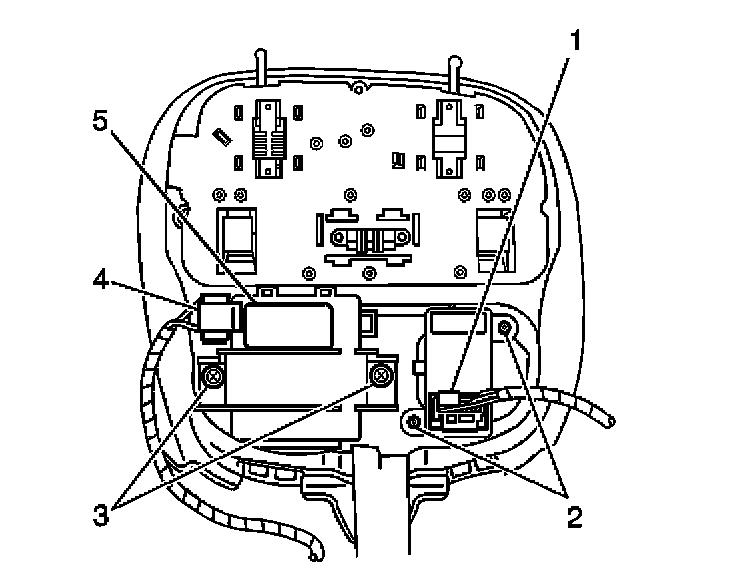

INSTALLATION PROCEDURE




1. Position the power sunroof switch into the opening in the overhead console.
2. Install the screws (2) in order to secure the power sunroof switch to the overhead console.
3. Connect the electrical connector (1) to the power sunroof switch.
4. Install the overhead console.
