Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Seat Does Not Move Forward/Rearward Without RPO A45

Power Seat Does Not Move Forward/Rearward Without RPO A45

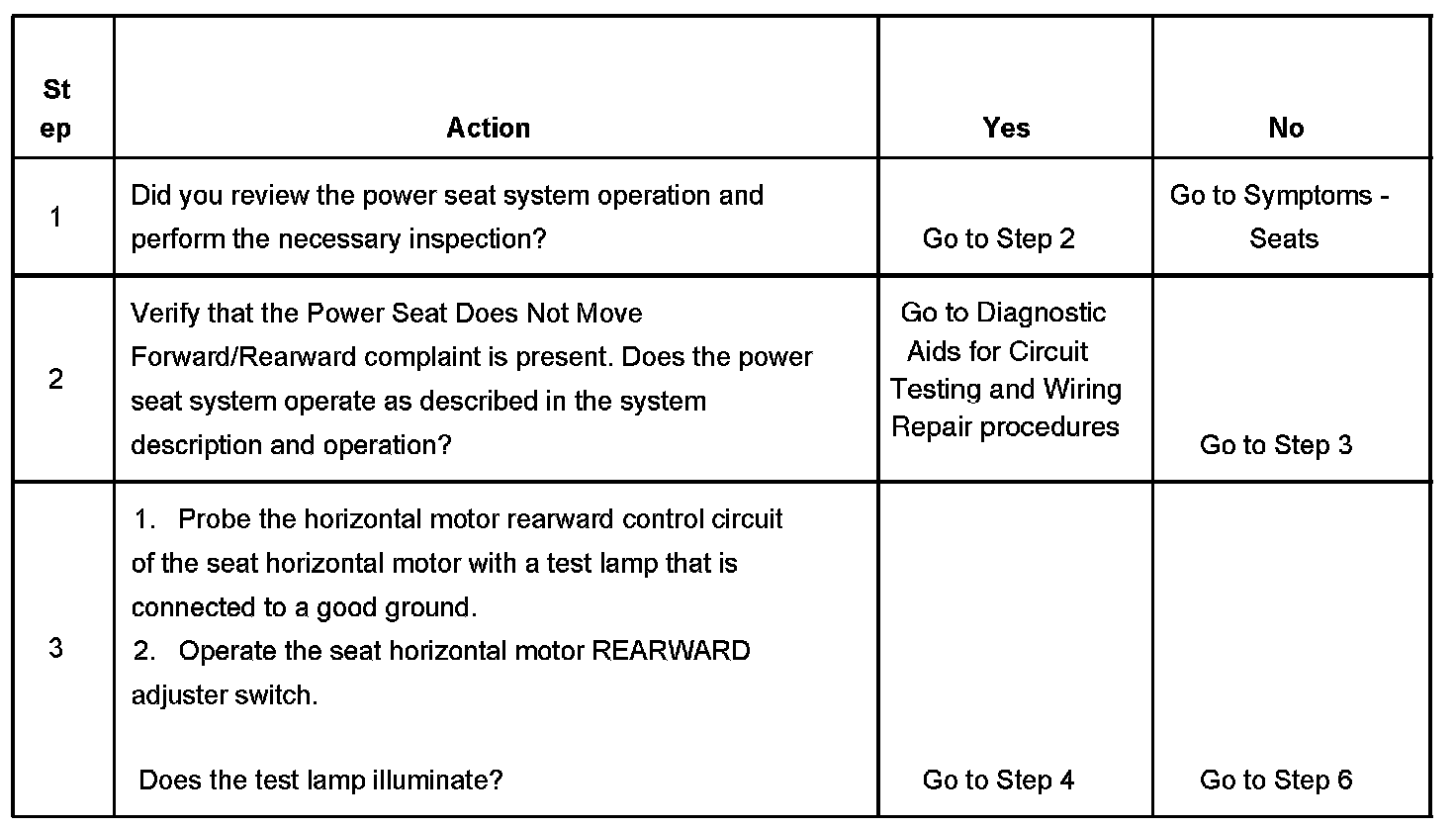

Steps 1-3:

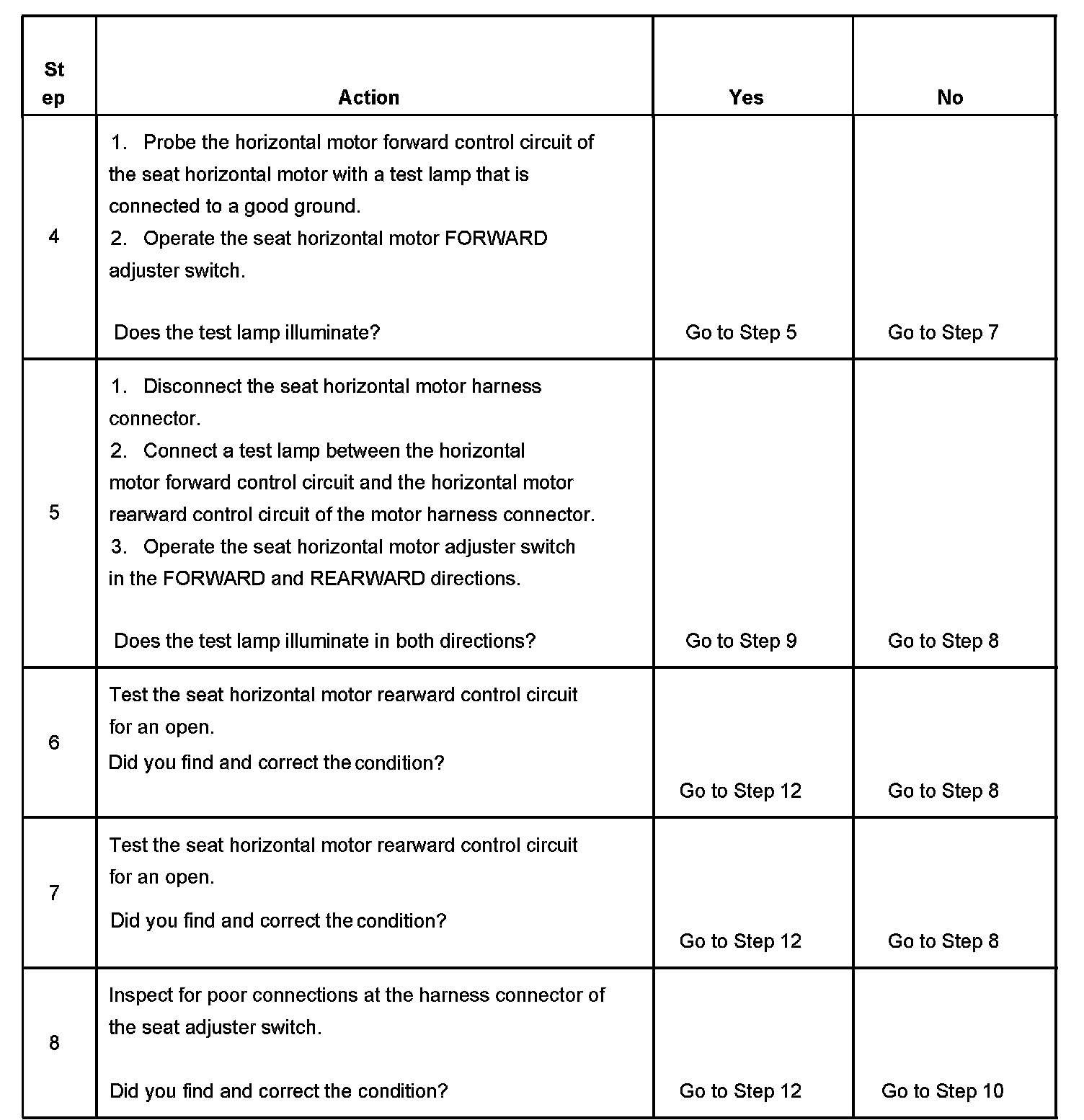

Steps 4-8:

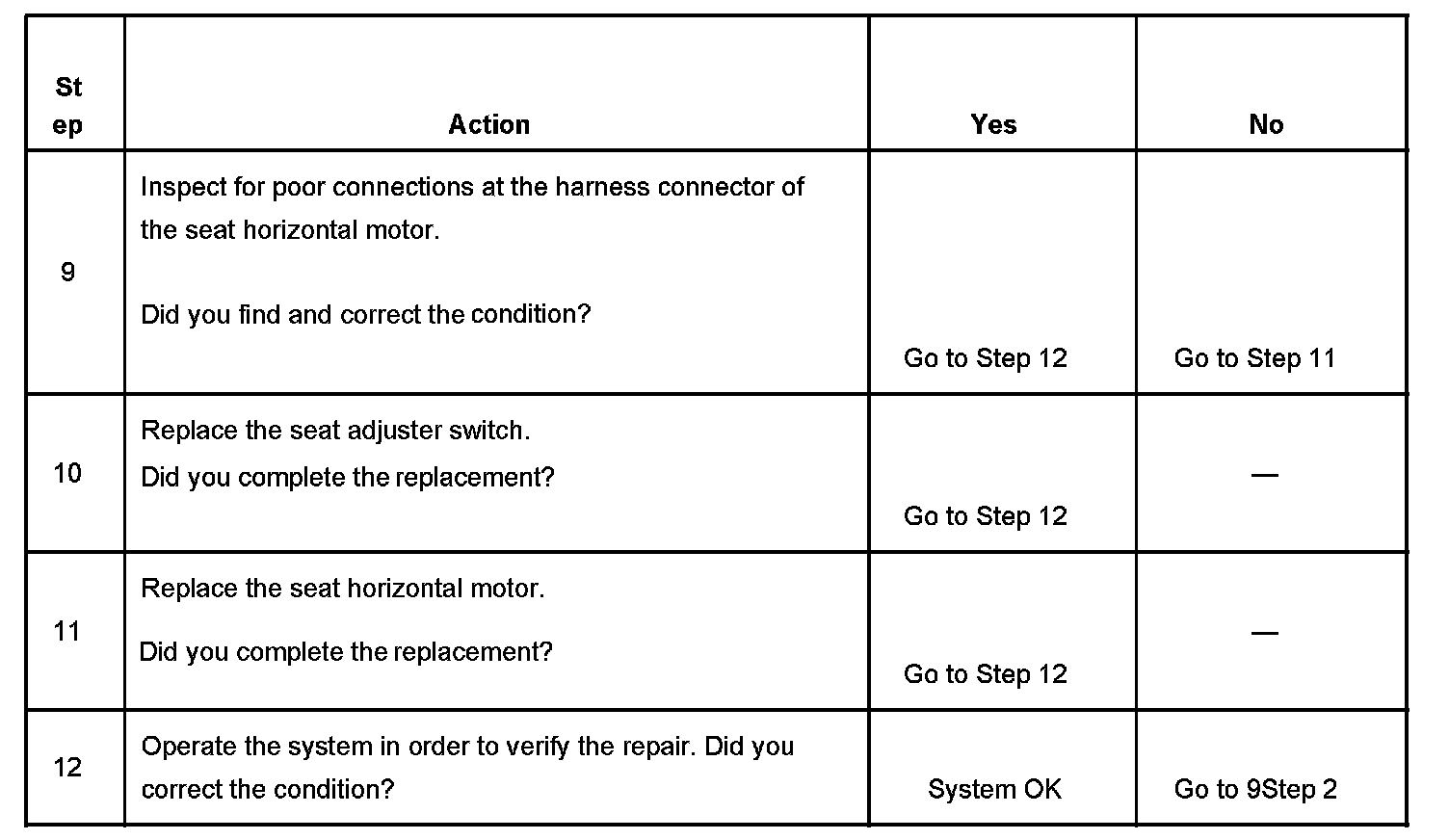

Steps 9-12:
