Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Lumbar Support Does Not Move Up or Down (Without RPO A45)

Lumbar Support Does Not Move Up or Down (Without RPO A45)

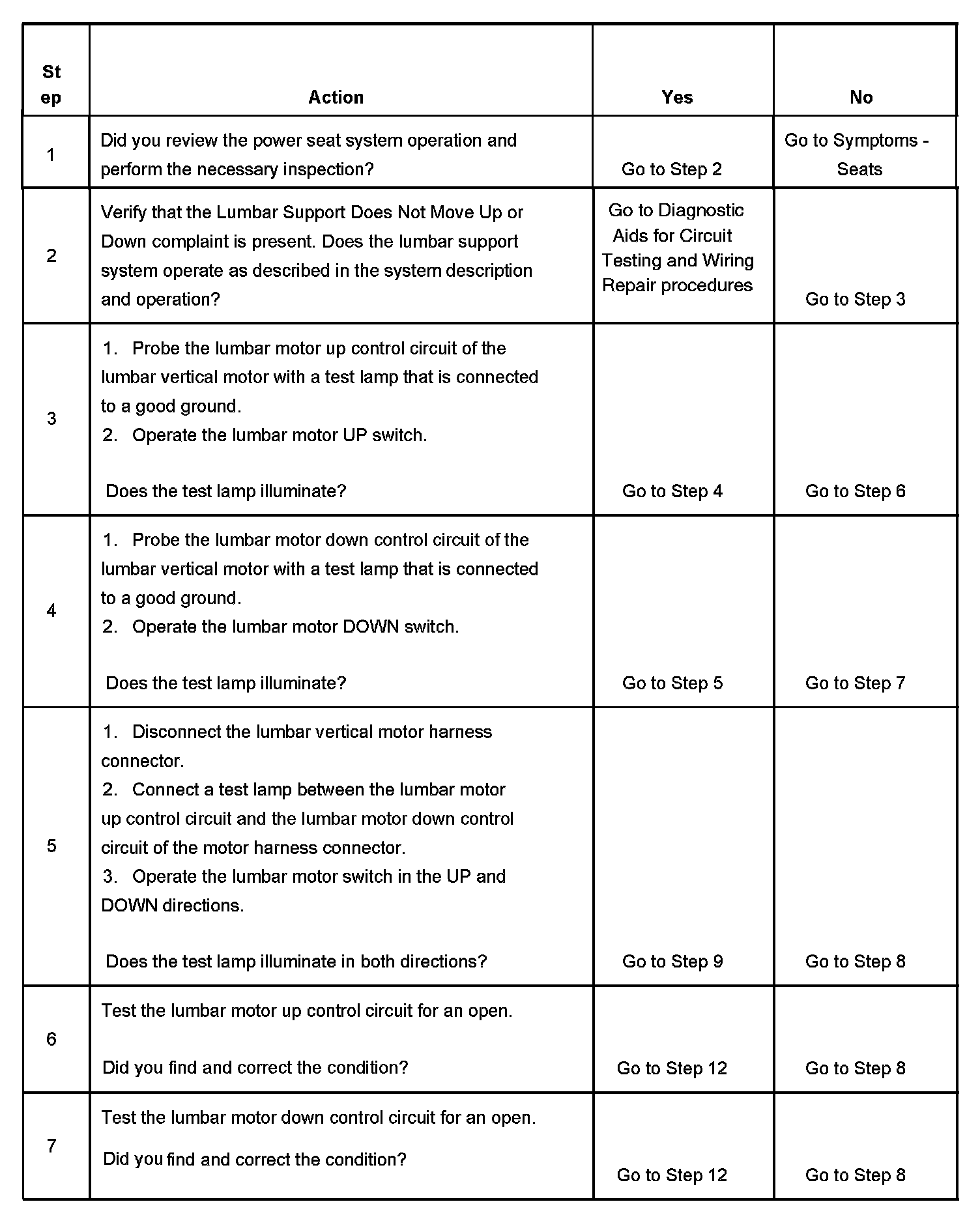

Steps 1-7:

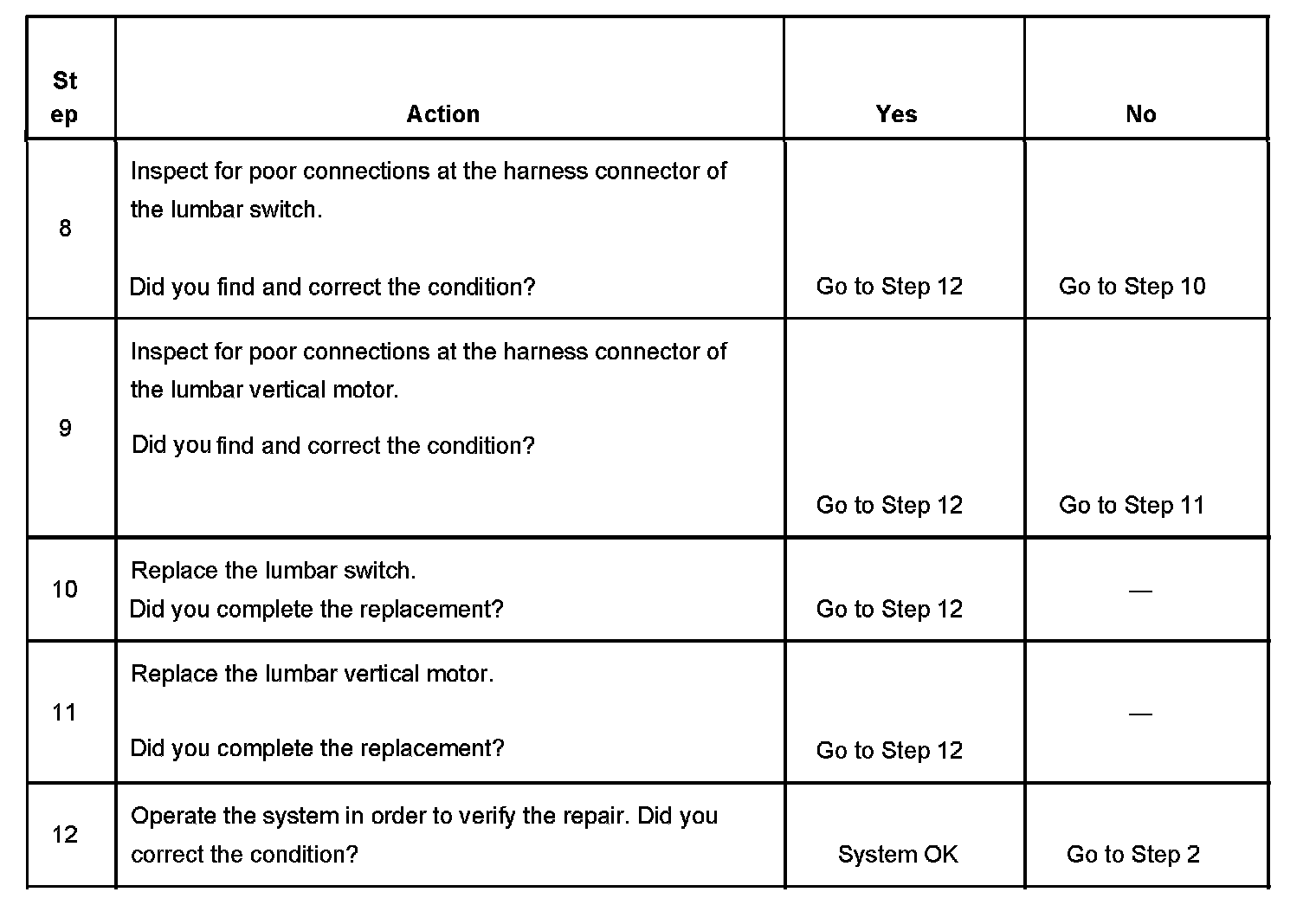

Steps 8-12:
