Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Lumbar Support Does Not Move In or Out
>>
With RPO A45
With RPO A45

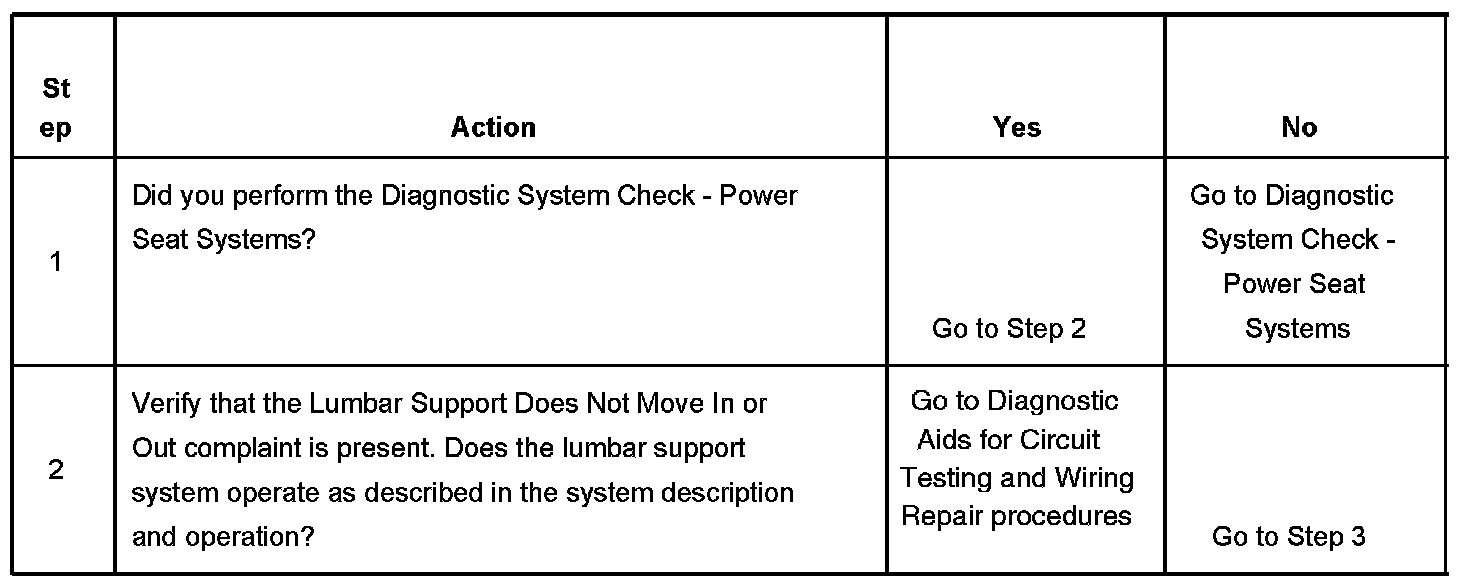

Steps 1-2:

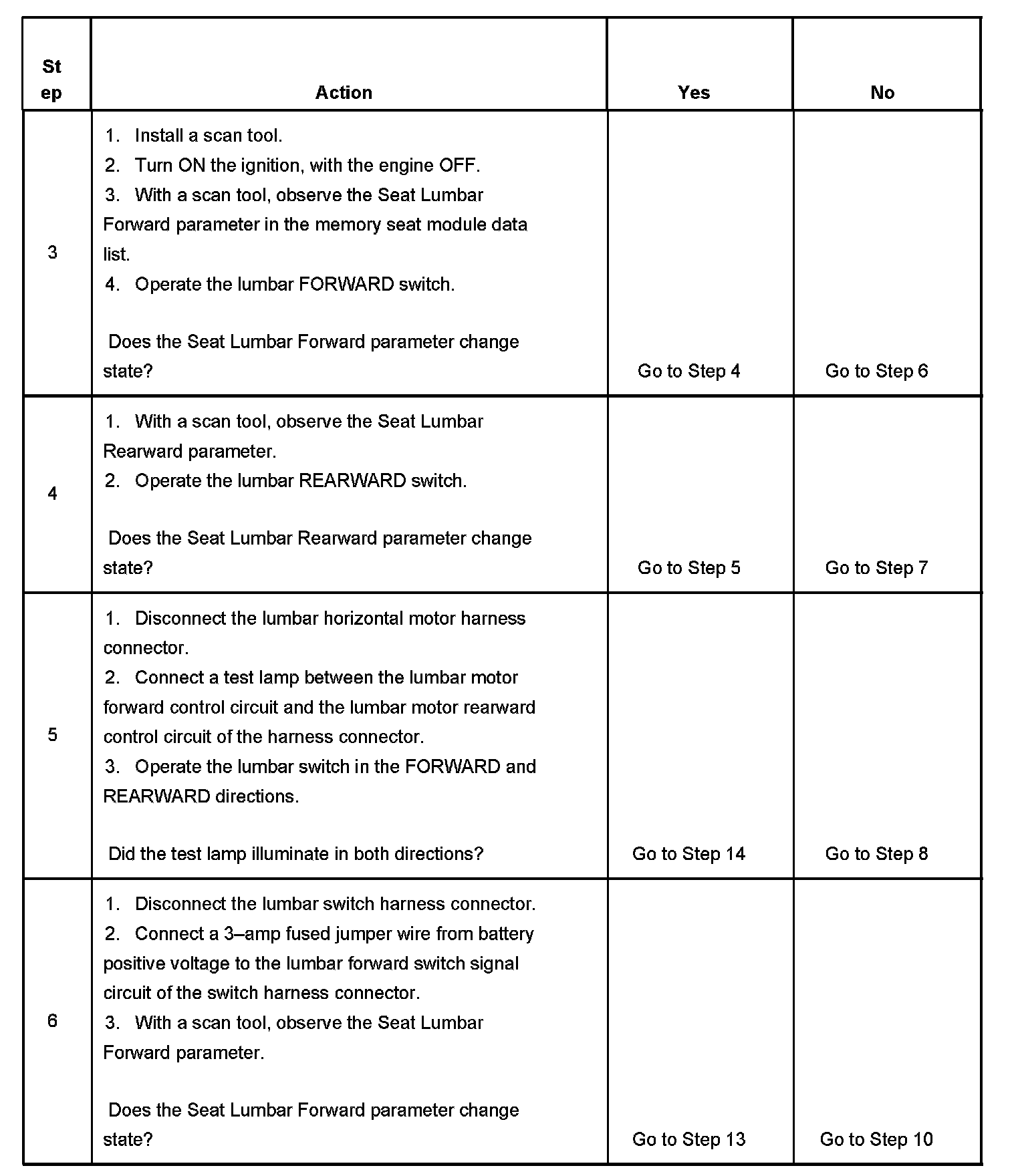

Steps 3-6:

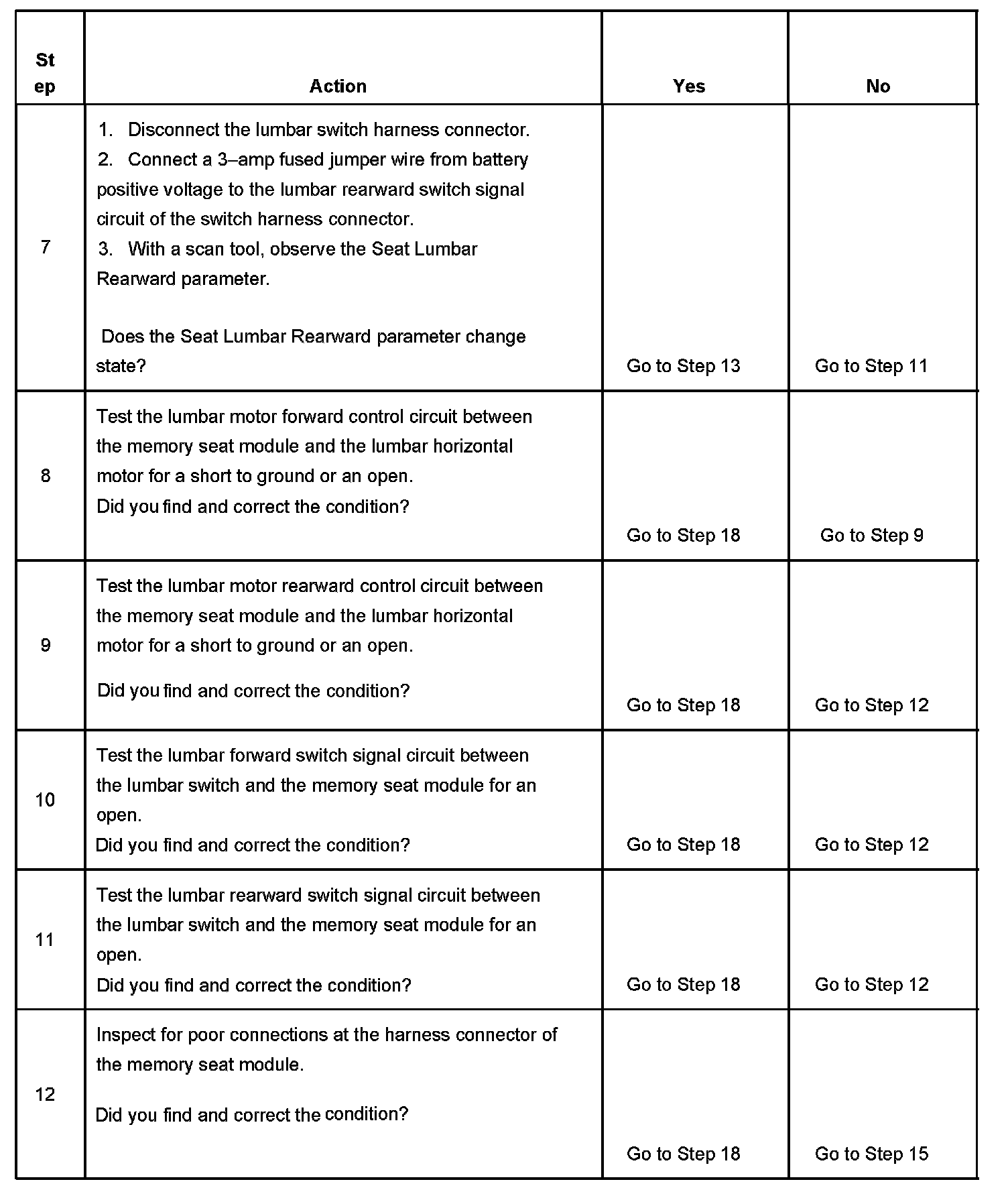

Steps 7-12:

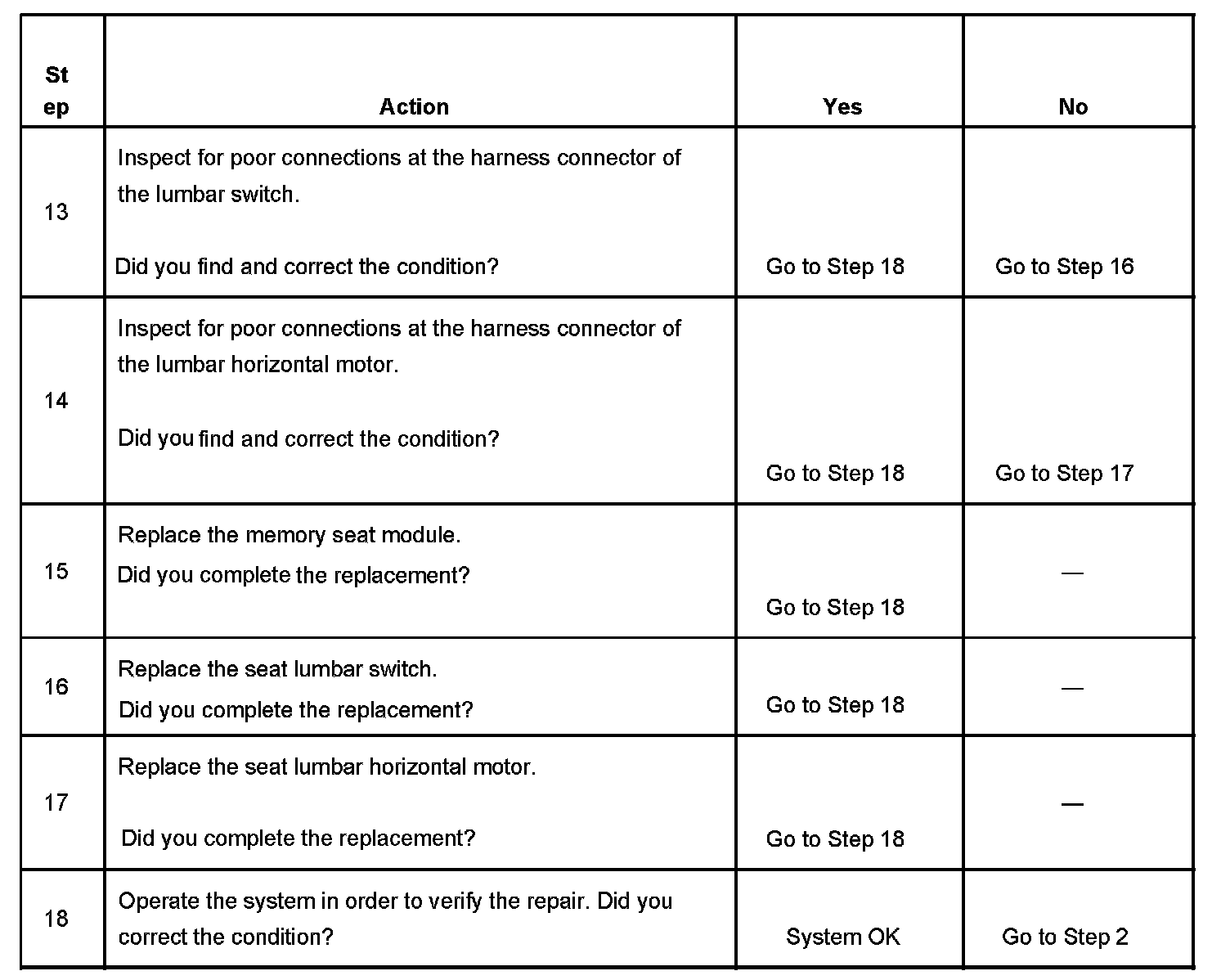

Steps 13-18:
