Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heated Seat Switch Low Indicator Malfunction

Heated Seat Switch Low Indicator Malfunction

Steps 1-6:

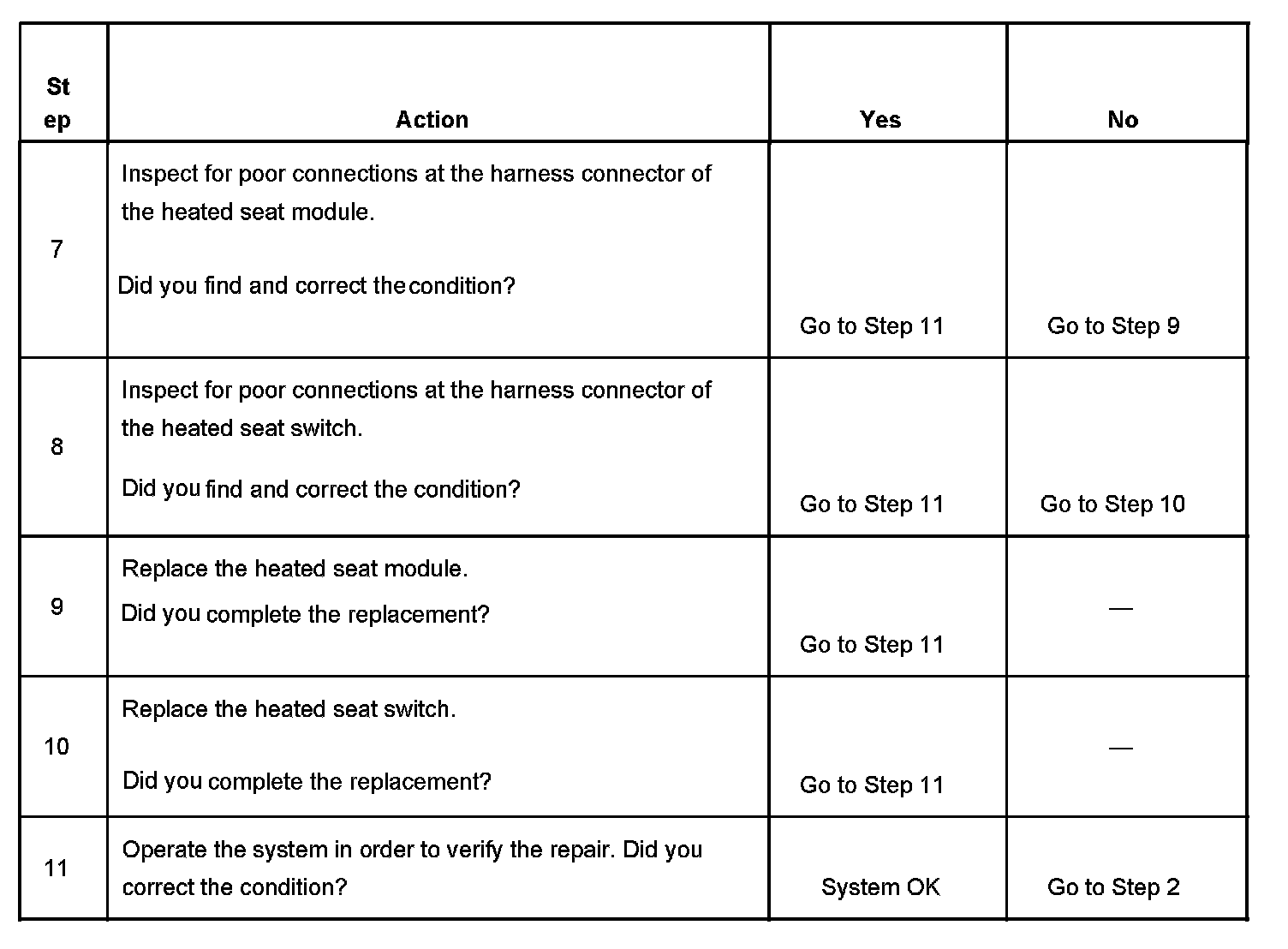

Steps 7-11:
